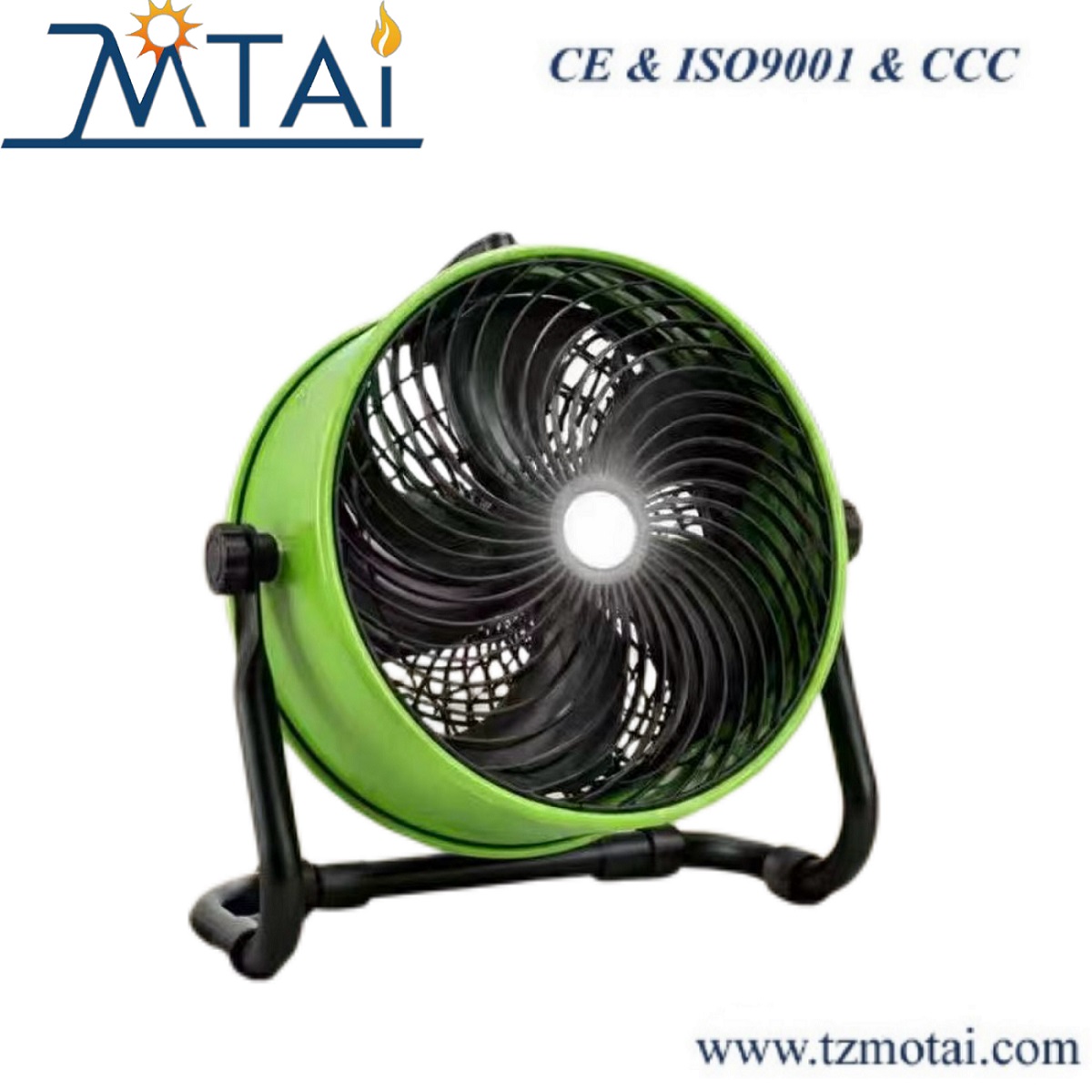

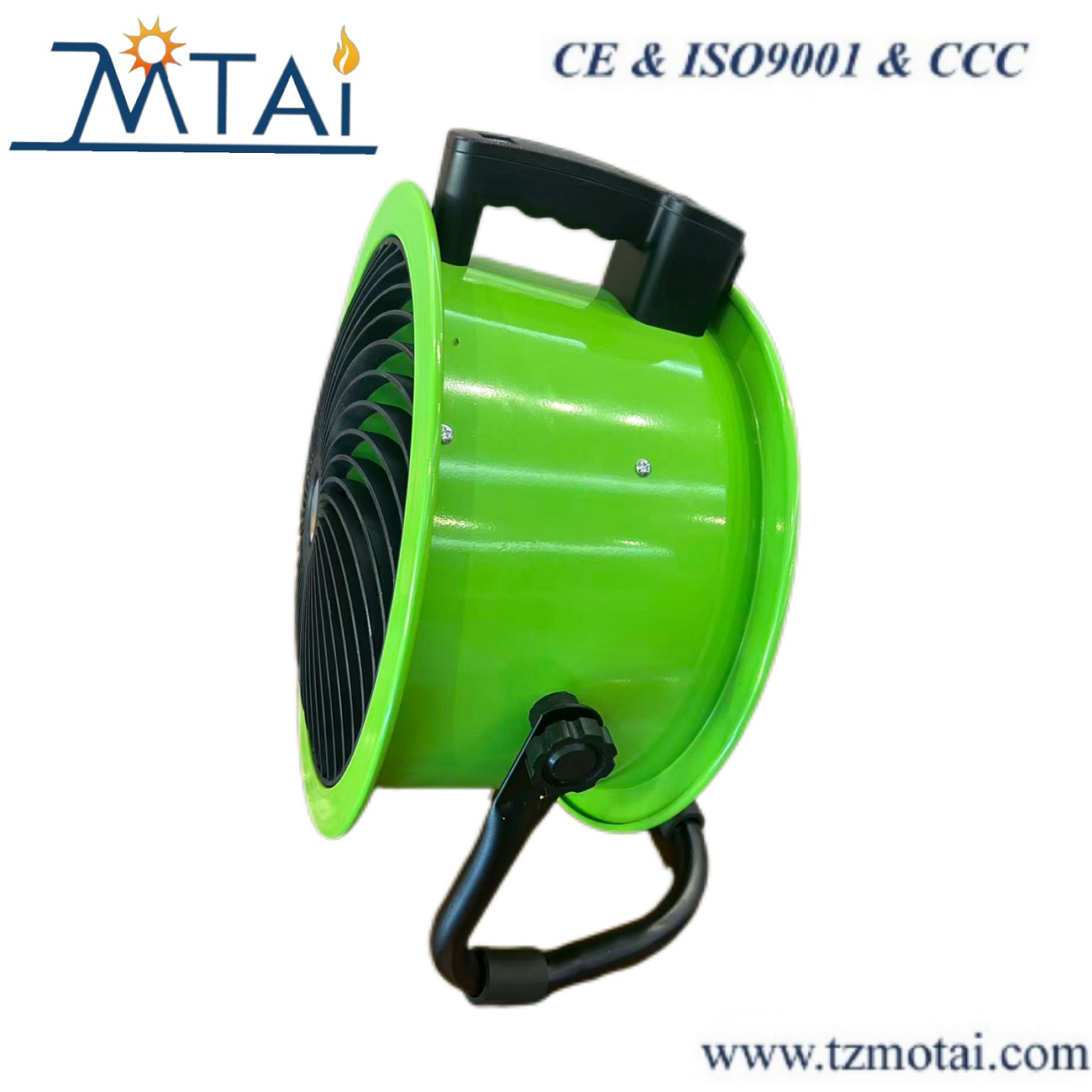

Wireless Solar Camping Fan User Instructions

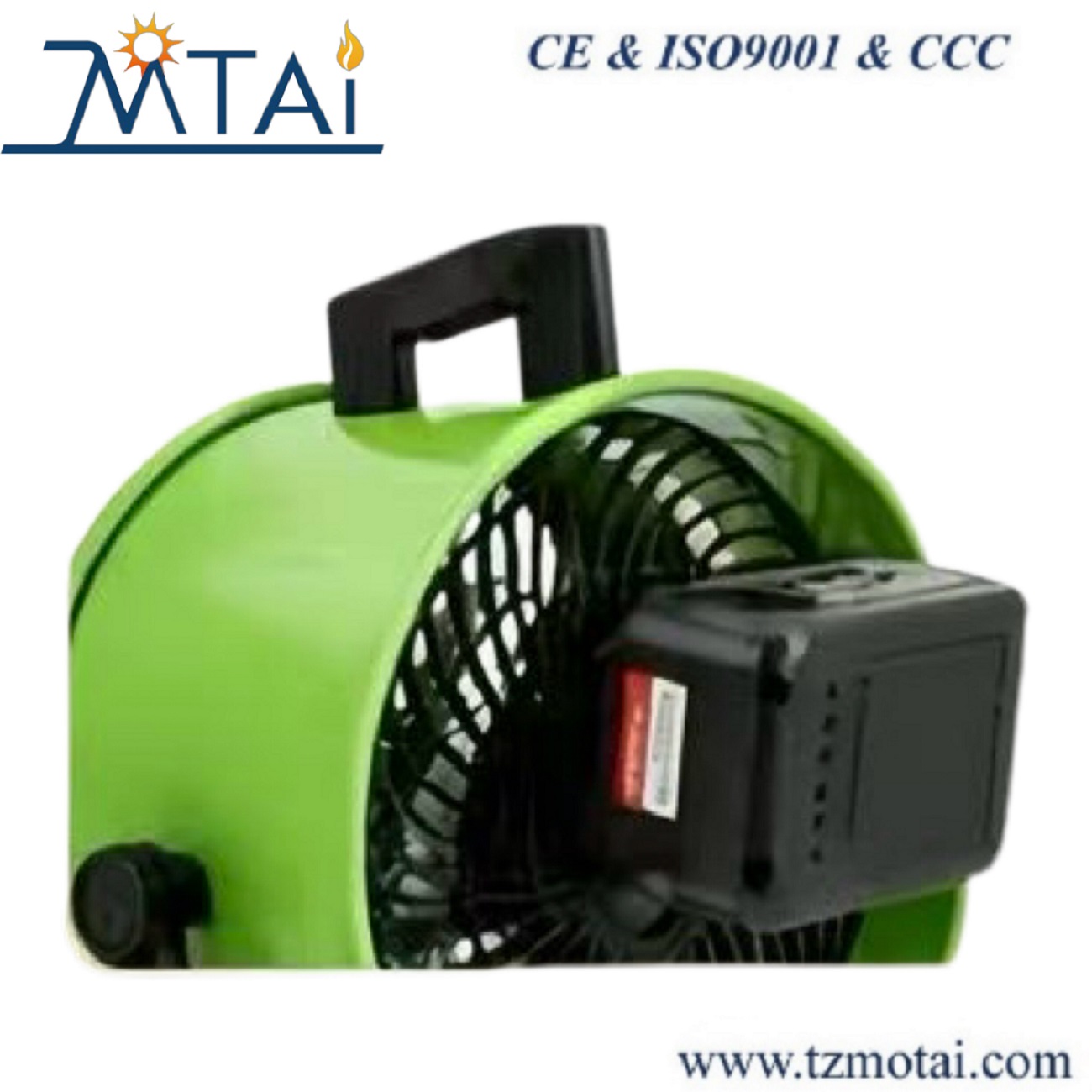

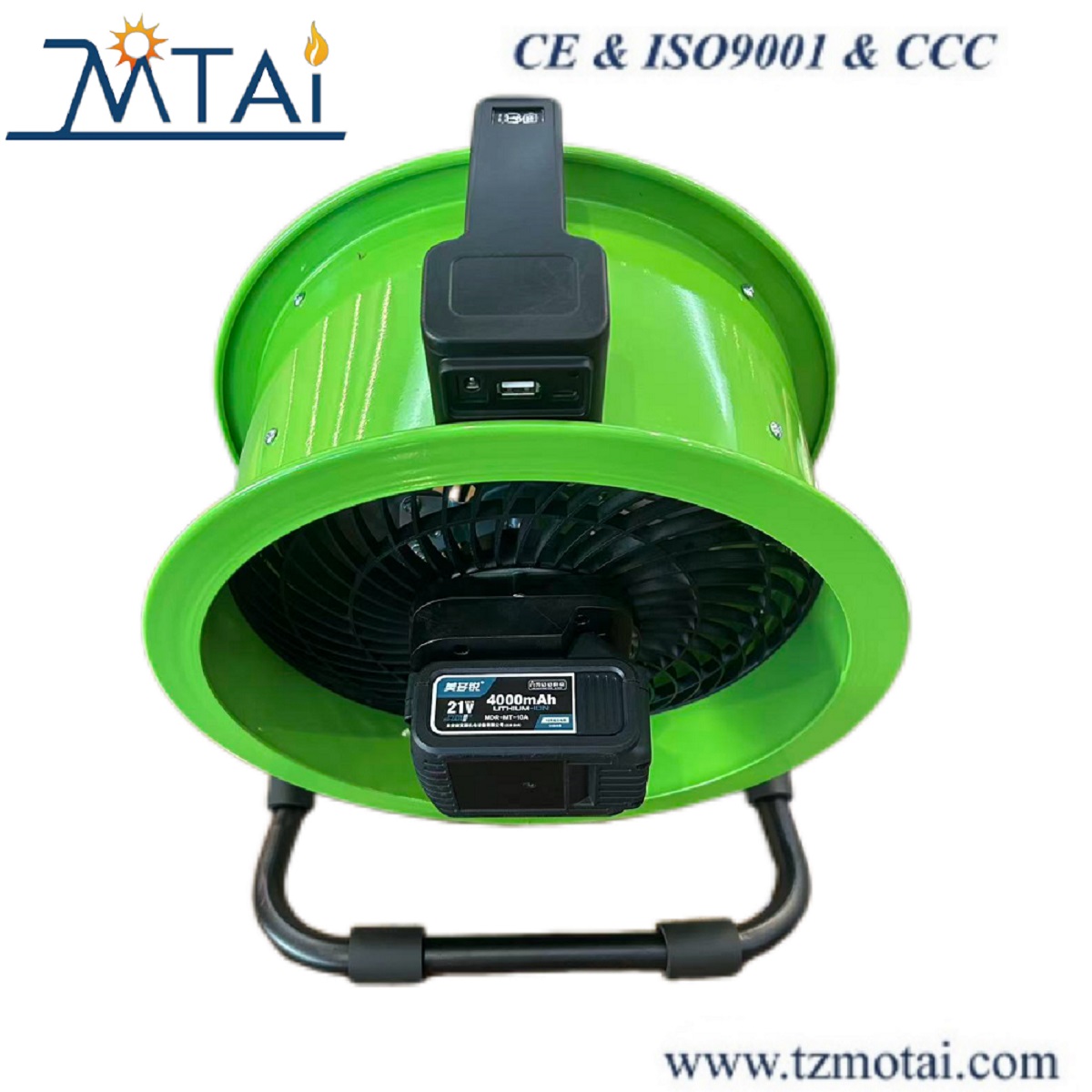

This wireless lithium battery circulation fan is equipped with built-in LED light, 12 adjustable wind speeds, low-noise operation, solar charging support and reverse power bank function, perfect for camping, fishing, power outage emergency and outdoor work; charging methods include three ways: first, take off the removable lithium battery pack and connect the matching DC charger for charging until the full-charge green indicator lights up, second, match the fan with a solar panel and place them under sunlight to realize simultaneous working and battery charging outdoors, third, plug mobile phones and other small electronic devices into the USB port on the battery pack to use the reverse charging power bank function for emergency power supply; operation steps are as follows: long press the power button to turn the fan on or off, short press the speed button to switch among 12 wind speed levels to meet different cooling needs, press the light control key to turn on or off the central LED lamp for night lighting, rotate the metal support bracket freely to adjust the vertical air blowing angle; safety precautions: do not soak the fan body or battery pack in water and keep them away from heavy rain, take out the battery if the fan will not be used for more than one month and store it in a dry and cool place, stop charging right away if the battery overheats, only use the original matched charger and solar panel to prevent product damage, keep the air inlet and outlet unblocked without cloth, leaves or other sundries when the fan is running; applicable scenarios cover outdoor camping, tent ventilation, wild fishing, RV travel, household.

Application

Suitable for camping, fishing, outdoor picnics, RV trips, power outages, market stalls, workshop & home ventilation.Model

Model	功率Power（w)	最大转速Max Speed(rpm)	最大风量 Max AirFlow(m³/h)	外径Diameter(mm)	长L(mm)	宽W(mm)	高H(mm)	WEIGHT (N.W.) (KG)	WEIGHT(G.W.)  (KG)
MTLD-H-12"	33	1520	2000	330	385	180	450	3.1	3.5
MTLD-H-14"	33	1610	3000	380	515	180	490	3.4	3.9
MTLD-H-16"	33	1580	4000	430	485	180	520	3.6	4.1
