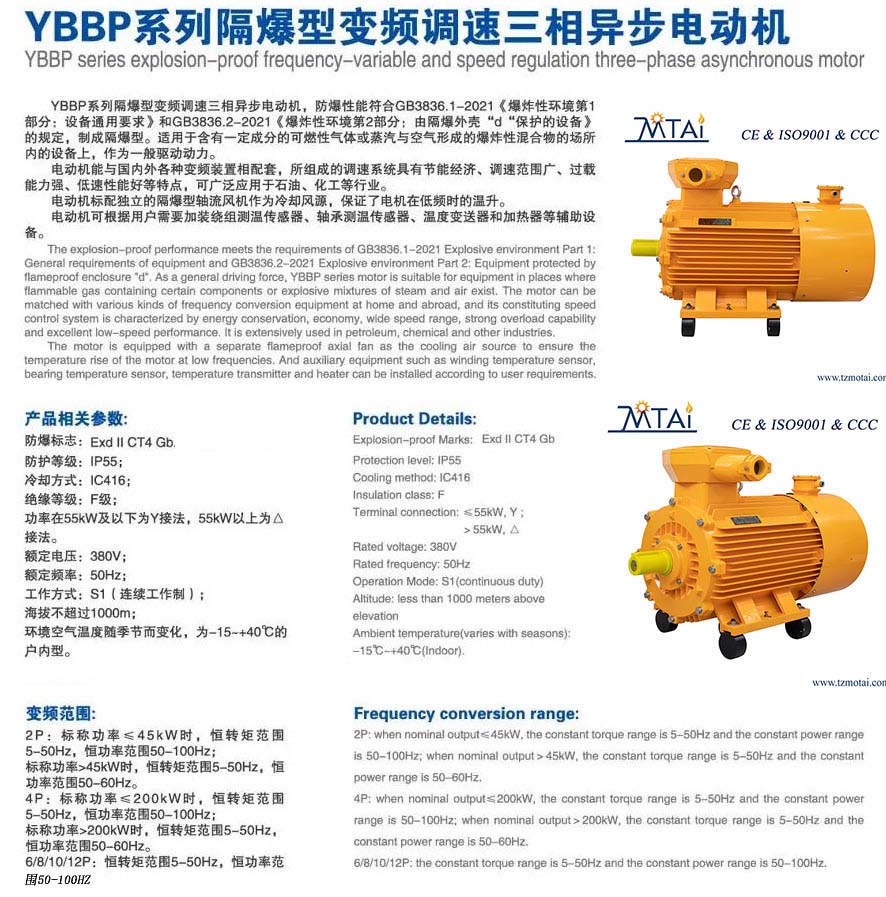

Name: YBBP-CT4 Flame-proof super-efficient inverter three-phase asynchronous motor
Type: YBBP80-350
  • PUMP
  • PUMP
  • PUMP
  • PUMP
  • PUMP
Product details

Product Parameters


PERFORMANCE DATA
Type Nominal horse-power (KW)   nominal current(A) Rate torque(N.m) Permanent torque(Hz) Constant-power speed range(Hz) LRT BDT LRA Vibration(mm/s) Noise dB(A)
HP RLT RLT RLA
 Synchronous Speed 3000r/min(2P)
YBBP-80M1-2 0.75 1 1.8 2.4 5-50 50-100 2.2 2.3 6.5  1.3 70
YBBP-80M2-2 1.1 1.5 2.6  3.5
YBBP-90S-2 1.5 2 3.4 4.8 8.0  74
YBBP-90L-2 2.2 3 4.8 7
YBBP-100L-2 3 4 6.2 9.5 78
YBBP-112M-2 4 5.5 8.1 12.7 82
YBBP-132S1-2 5.5 7.5 11.1 17.5 85
YBBP-132S2-2 7.5 10 14.9 23.9
YBBP-160M1-2 11 15 21.5 35.0  2.4 1.8 87
YBBP-160M2-2 15 20 28.6 47.7
YBBP-160L-2 18.5 25 35.1 58.9
YBBP-180M-2 22 30 41.0  70 2 2.3 90
YBBP-200L1-2 30 40 55.4 95.5 92
YBBP-200L2-2 37 50 67.9 117.8
YBBP-225M-2 45 60 82.1 143.2 94
YBBP-250M-2 55 75 99.8 175.1 50-60 96
YBBP-280S-2 75 100 133.8 236 98
YBBP-280M-2 90 125 160 284
YBBP-315S-2 110 150 195.4 350 1.8 2.2 2.3 100
YBBP-315M-2 132 180 233.2 420
YBBP-315L1-2 160 220 282.4 509
YBBP-315L2-2 200 270 352 637
YBBP-355M1-2 220 300 388 700 1.6 103
YBBP-355M2-2 250 340 439 796
YBBP-355L1-2 280 380 491 891
YBBP-355L2-2 315 430 551 1003
PERFORMANCE DATA
Type Nominal horse-power (KW)   nominal current(A) Rate torque(N.m) Permanent torque(Hz) Constant-power speed range(Hz) LRT BDT LRA Vibration(mm/s) Noise dB(A)
HP RLT RLT RLA
 Synchronous Speed 1500r/min(4P)
YBBP-80M1-4 0.55 0.75 1.5 3.5 5-50 50-100 2.4 2.3 5.5  1.3 62
YBBP-80M2-4 0.75 1 2.0  4.8
YBBP-90S-4 1.1 1.5 2.9 7 2.3 6.5  64
YBBP-90L-4 1.5 2 3.7 9.5
YBBP-100L1-4 2.2 3 5.1  14 2.4 68
YBBP-100L2-4 3 4 6.7 19.1
YBBP-112M-4 4 5.5 8.8 25.5 72
YBBP-132S-4 5.5 7.5 11.6 35 7.5  76
YBBP-132M-4 7.5 10 15.4 47.7
YBBP-160M-4 11 15 22.2 70.0  2.2 1.8 79
YBBP-160L-4 15 20 30 96
YBBP-180M-4 18.5 25 36.5  117.8 2.3 83
YBBP-180L-4 22 30 43.1  140.1
YBBP-200L-4 30 40 57.6 191 2.4 85
YBBP-225S-4 37 50 69.9 236 88
YBBP-225M-4 45 60 84.7 286.5
YBBP-250M-4 55 75 103 350.1 92
YBBP-280S-4 75 100 140 478 94
YBBP-280M-4 90 125 167 573
YBBP-315S-4 110 150 201 700 2.1 2.2 2.3 96
YBBP-315M-4 132 180 240.4 840
YBBP-315L1-4 160 220 288 1019
YBBP-315L2-4 200 270 360 1273
YBBP-355M1-4 220 300 396 1401 50-60 98
YBBP-355M2-4 250 340 443 1592
YBBP-355L1-4 280 380 497 1783
YBBP-355L2-4 315 430 559 2005

PERFORMANCE DATA
Type Nominal horse-power (KW)   nominal current(A) Rate torque(N.m) Permanent torque(Hz) Constant-power speed range(Hz) LRT BDT LRA Vibration(mm/s) Noise dB(A)
HP RLT RLT RLA
  Synchronous Speed 1000r/min(6P)
YBBP-80M1-6 0.37 0.5 1.3 3.5 5-50 50-100 2.1 2.1 4.5  1.3 61
YBBP-80M2-6 0.55 0.75 1.8  5.3
YBBP-90S-6 0.75 1 2.3 7.2 63
YBBP-90L-6 1.1 1.5 3.1 10.5 5.5
YBBP-100L-6 1.5 2 3.9 14.3 66
YBBP-112M-6 2.2 3 5.6 21.0  71
YBBP-132S-6 3 4 7.3 28.6 2.4 6.5  75
YBBP-132M1-6 4 5.5 9.4 38.2
YBBP-132M2-6 5.5 7.5 12.6 52.5 7.0
YBBP-160M-6 7.5 10 16.8 71.6  1.8 78
YBBP-160L-6 11 15 24.2 105
YBBP-180L-6 15 20 31.6  143 2.1 7.5  82
YBBP-200L1-6 18.5 25 37.6 176.7 2.4 84
YBBP-200L2-6 22 30 44.7 210.1
YBBP-225M-6 30 40 57.6 286.4 86
YBBP-250M-6 37 50 71.1 353.3 90
YBBP-280S-6 45 60 85.9 425 92
YBBP-280M-6 55 75 104.7 520 2.2
YBBP-315S-6 75 100 141.7 716 2.0  2.0  2.3 94
YBBP-315M-6 90 125 169.5 859
YBBP-315L1-6 110 150 206.7 1050
YBBP-315L2-6 132 180 244.7 1260
YBBP-355S-6 160 220 293 1528 1.9 96
YBBP-355M1-6 185 250 365 1910
YBBP-355M2-6 200 270 365 1910
YBBP-355L1-6 220 300 402 2101
YBBP-355L2-6 250 340 457 2387

PERFORMANCE DATA
Type Nominal horse-power (KW)   nominal current(A) Rate torque(N.m) Permanent torque(Hz) Constant-power speed range(Hz) LRT BDT LRA Vibration(mm/s) Noise dB(A)
HP RLT RLT RLA
 Synchronous Speed 750r/min(8P)
YBBP-80M1-8 0.18 0.25 0.86 2.3 5-50 50-100 1.8 2.1 4.5  1.3 61
YBBP-80M2-8 0.25 0.35 1.1  3.2
YBBP-90S-8 0.37 0.5 1.4 4.7 63
YBBP-90L-8 0.55 0.75 2.1 7
YBBP-100L1-8 0.75 1 2.4 9.5 66
YBBP-100L2-8 1.1 1.5 3.3 14
YBBP-112M-8 1.5 2 4.4 19.1  71
YBBP-132S-8 2.2 3 5.8 28 2.2 5.5  75
YBBP-132M-8 3 4 7.7 38.2
YBBP-160M1-8 4 5.5 10.3 50.9  1.9 6.5  1.8 78
YBBP-160M2-8 5.5 7.5 13.4 70.0
YBBP-160L-8 7.5 10 17.6 95.5
YBBP-180L-8 11 15 25.3  140 82
YBBP-200L-8 15 20 33.7 191 7.2  84
YBBP-225S-8 18.5 25 40.0  236 86
YBBP-225M-8 22 30 47.4 280
YBBP-250M-8 30 40 63.4 382 2.0  90
YBBP-280S-8 37 50 77.8 471 1.8 92
YBBP-280M-8 45 60 94.1 573
YBBP-315S-8 55 75 111.2 700 2.3 94
YBBP-315M-8 75 100 150.5 955
YBBP-315L1-8 90 125 180 1146
YBBP-315L2-8 110 150 216.8 1401
YBBP-355S-8 132 180 260 1681 96
YBBP-355M-8 160 220 315 2037
YBBP-355L1-8 185 250 364 2355
YBBP-355L2-8 200 270 392 2546 1.2

PERFORMANCE DATA
Type Nominal horse-power (KW)   nominal current(A) Rate torque(N.m) Permanent torque(Hz) Constant-power speed range(Hz) LRT BDT LRA Vibratin(mm/s) Noise dB(A)
HP RLT RLT RLA
  Synchronous Speed 600r/min(10P)
YBBP-160M-10 4 5.5 11.8  63.7  5~50Hz 50~100Hz 1.1 1.9 6.3  2.2 70
YBBP-160L-10 5.5 7.5 15.8  87.5  1.1 1.9
YBBP-180L-10 7.5 10 21.0  119.4  1.1 1.9
YBBP-200L-10 11 15 29.4  175.1  1.1 1.9 73
YBBP-225S-10 15 20 38.7  238.8  1.1 1.9
YBBP-225M-10 18.5 25 45.2  294.5  1.1 1.9
YBBP-250M-10 22 30 51.9  350.2  1.1 1.9 76
YBBP-280S-10 30 40 69.2  477.5  1.1 1.9
YBBP-280M-10 37 50 82.6  588.9  1.1 1.9
YBBP-315S-10 45 60 99.6  716.3  1.2 2 6.5  2.8 82
YBBP-315M-10 55 75 121  875.4  1.2 2
YBBP-315L1-10 75 100 162  1193.8  1.2 2
YBBP-315L2-10 90 125 191  1432.5  1.2 2
YBBP-355S1-10 90 125 191  1432.5  1.2 2
YBBP-355M1-10 110 150 230  1750.8  1.2 2 7.0  90
YBBP-355M2-10 132 180 275  2101.0  1.2 2
YBBP-355L1-10 160 220 333  2546.7  1.2 2
YBBP-355L2-10 185 250 385  2944.6  1.2 2

PERFORMANCE DATA
Type Nominal horse-power (KW)   nominal current(A) Rate torque(N.m) Permanent torque(Hz) Constant-power speed range(Hz) LRT BDT LRA Vibraton(mm/s) Noise dB(A)
HP RLT R LT RLA
   Synchronous Speed 500r/min(12P)
YBBP-160M-12 3 4 9.7  57.3  5~50Hz 50~100Hz 1.1 1.7 6.0  3.2  70
YBBP-160L-12 4 5.5 12.6  76.4  1.1 1.7
YBBP-180L-12 5.5 7.5 16.9  105.1  1.1 1.7
YBBP-200L-12 7.5 10 22.1  143.3  1.1 1.7 72
YBBP-225S-12 11 15 29.6  210.1  1.1 1.7
YBBP-225M-12 15 20 40.0  286.5  1.1 1.7
YBBP-250M-12 18.5 25 48.1  353.4  1.1 1.7 75
YBBP-280S-12 22 30 55.9  420.2  1.1 1.7
YBBP-280M-12 30 40 74.5  573.0  1.1 1.7
YBBP-315S-12 37 50 88.7  706.7  1.1 1.7 3.8  82
YBBP-315M-12 45 60 107  859.5  1.2 1.6 6.1
YBBP-315L1-12 55 75 129  1050.5  1.2 1.6
YBBP-315L2-12 75 100 172  1432.5  1.2 1.6
YBBP-355M1-12 90 125 205  1719.0  1.2 1.6 93
YBBP-355M2-12 110 150 247  2101.0  1.2 1.6
YBBP-355L1-12 132 180 295  2521.2  1.2 1.6
YBBP-355L2-12 160 220 357  3056.0  1.2 1.6
