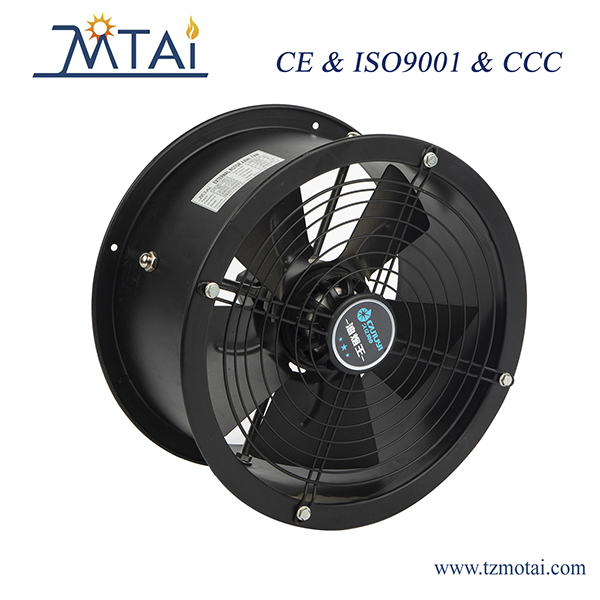

Name: FZY external rotor motor axial flow fan series
Type: FZY200-600
Product details
Product overview
The fan series consists of an external rotating electronic single-phase capacitor running asynchronous motor or three-phase asynchronous motor, double flanged cylindrical housing, grid frame and wind blades.
It has good performance such as large air volume, low vibration, low noise and reliable operation. The fan is mainly used for ventilation and heat dissipation of ground automatic control devices, large electronic equipment, medical equipment, computers, office supplies, automation, welding machines and other industries that require large air volume. It can also be used for ventilation, air exchange and purification in buildings and factories.
Operating environment
Ambient temperature:-40℃℃- 55℃
Altitude: 55Kpa(2500 m)
Relative humidity: 90% -- 95%
Type description
XXX: Fan number (cylinder diameter mm)
FZY: Name code (F-fan, Z-axial flow, Y-cylinder)
D:380V E:220V
2: two poles 4: four poles
size specification
型号
(No.)
|
叶片尺寸
|
ΦA
|
ΦB
|
ΦC
|
ΦD
|
ΦE
|
ΦL
|
|
FZY-200
|
200
|
Φ92
|
Φ 200
|
Φ 215
|
Φ 230
|
Φ 250
|
Φ 170
|
|
FZY-250
|
250
|
Φ92
|
Φ 250
|
Φ 265
|
Φ 280
|
Φ 300
|
Φ 170
|
|
FZY-300
|
300
|
Φ92
|
Φ 300
|
Φ 315
|
Φ 330
|
Φ 350
|
Φ 170
|
|
FZY-350
|
350
|
Φ12
|
Φ 350
|
Φ 365
|
Φ 385
|
Φ 405
|
Φ 170
|
|
FZY-400
|
400
|
Φ12
|
Φ 400
|
Φ 415
|
Φ 435
|
Φ 460
|
Φ 170
|
|
FZY-500
|
500
|
Φ122
|
Φ 500
|
Φ 515
|
Φ 535
|
Φ 560
|
Φ 200
|
|
FZY-600
|
600
|
Φ138
|
Φ 600
|
Φ 615
|
Φ 635
|
Φ 660
|
Φ 280
|
Technical parameter
型号
(No.)
|
叶片 (片)
|
电压
(V)
|
频率
(Hz)
|
输入电流
(A)
|
输入功率
(W)
|
转速
(r/min)
|
空气
(m3/h)
|
噪声
dB(A)
|
电容
(uF)
|
|
FZY-4E200
|
6
|
220
|
50
|
0.20
|
40
|
1450
|
510
|
53
|
1
|
|
FZY-2E200
|
6
|
220
|
50
|
0.26
|
50
|
2350
|
1050
|
65
|
2
|
|
FZY-4E250
|
6
|
220
|
50
|
0.22
|
50
|
1400
|
1300
|
55
|
1
|
|
FZY-4D250
|
6
|
380
|
50
|
0.16
|
50
|
1400
|
1200
|
55
|
/
|
|
FZY-2E250
|
6
|
220
|
50
|
0.71
|
155
|
2200
|
2100
|
69
|
3
|
|
FZY-2D250
|
6
|
380
|
50
|
0.27
|
155
|
2200
|
2100
|
69
|
/
|
|
FZY-4E300
|
6
|
220
|
50
|
0.33
|
70
|
1350
|
2200
|
61
|
3
|
|
FZY-4D300
|
6
|
380
|
50
|
0.23
|
80
|
1400
|
2200
|
61
|
/
|
|
FZY-2E300
|
6
|
220
|
50
|
0.75
|
165
|
2100
|
2700
|
70
|
4
|
|
FZY-2D300
|
6
|
380
|
50
|
0.35
|
135
|
2150
|
2500
|
70
|
/
|
|
FZY-2E350
|
5
|
220
|
50
|
1.18
|
260
|
2350
|
4250
|
72
|
6
|
|
FZY-2D350
|
5
|
380
|
50
|
0.75
|
285
|
2480
|
4450
|
72
|
/
|
|
FZY-4E350
|
6
|
220
|
50
|
0.46
|
95
|
1400
|
2850
|
65
|
4
|
|
FZY-2E400
|
5
|
220
|
50
|
1.37
|
305
|
2380
|
5830
|
76
|
8
|
|
FZY-2D400
|
5
|
380
|
50
|
0.77
|
295
|
2420
|
5880
|
76
|
/
|
|
FZY-4D350
|
6
|
380
|
50
|
0.29
|
100
|
1400
|
2700
|
65
|
/
|
|
FZY-4E400
|
5
|
220
|
50
|
0.67
|
140
|
1420
|
4150
|
68
|
6
|
|
FZY-4D400
|
5
|
380
|
50
|
0.36
|
115
|
1400
|
4100
|
68
|
/
|
|
FZY-4E500
|
5
|
220
|
50
|
1.14
|
245
|
1400
|
6500
|
74
|
10
|
|
FZY-4D500
|
5
|
380
|
50
|
0.61
|
215
|
1350
|
6500
|
74
|
/
|
|
FZY-4D600
|
5
|
380
|
50
|
1.65
|
820
|
1350
|
12600
|
78
|
/
|
|
FZY-4E600
|
5
|
220
|
50
|
3.92
|
850
|
1320
|
12400
|
78
|
20
|
