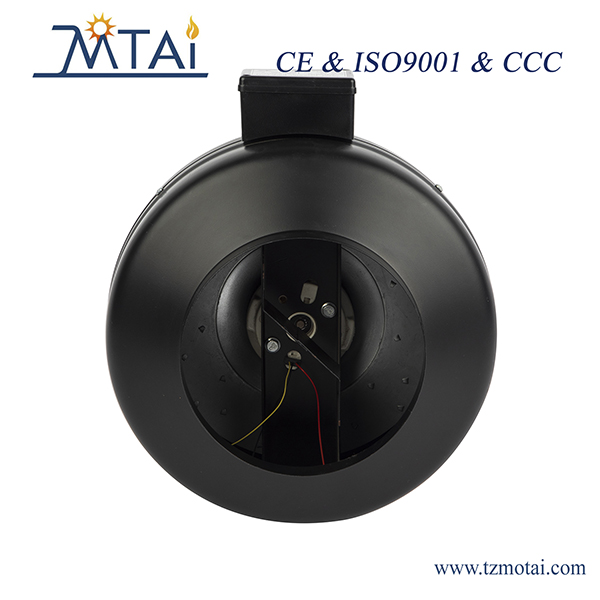

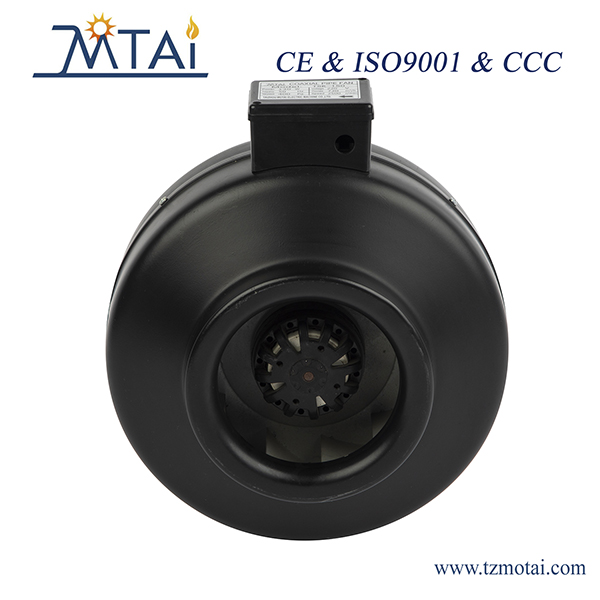

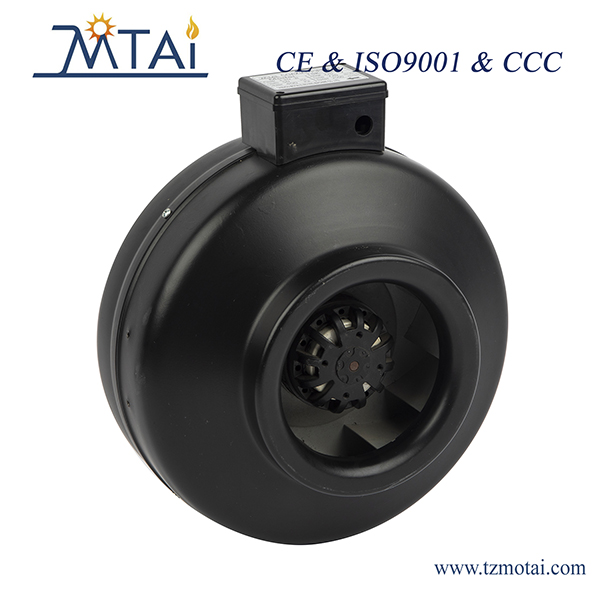

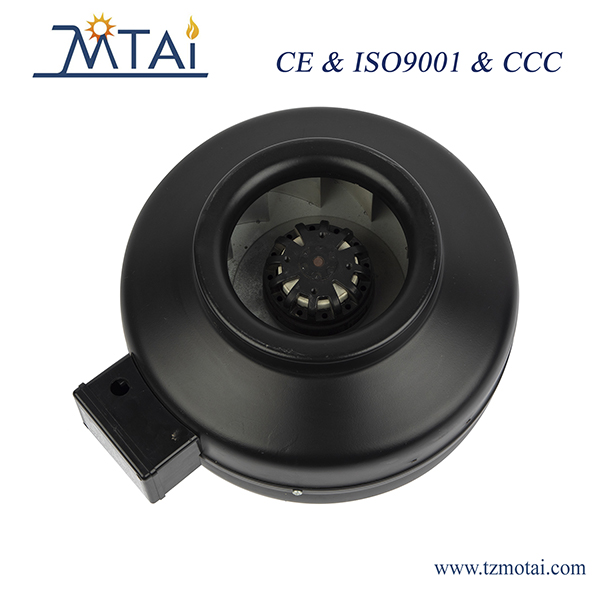

Name: TSK Coaxial Duct Fan
Type: TSKNO100-355
Product details
Product overview
1, Product features: TSK centrifugal air duct fan impeller with backward curved wind wheel, directly connected with the pipeline. The fan has low noise, large air volume, but no load, when operating at a reliable low noise level, it can not only withstand high pressure, but also be suitable for operation in longer pipes or excessively curved pipes, and allow for use in wet or humid conditions. The high quality galvanized steel plate and high precision stamping technology make this fan considered top of the line in its peers and can be installed at any Angle, the TSK centrifugal duct fan is available in 7 models. Product development department continues to develop more series of products for customers to choose.
2. Applicable scope: hotel rooms, offices, conference rooms, karaoke and other places with long-distance traffic and noise requirements.
Technical parameter
机器编号
(No.)
|
电压
(V)
|
频率
(Hz)
|
输入电流
(A)
|
输入功率
(W)
|
转速
(r/min)
|
风量
(m3/h)
|
噪声
dB(A)
|
电容
uF
|
静压
Pa
|
|
TSKNO100
|
220
|
50
|
0.35
|
78
|
2200
|
290
|
47
|
2
|
350
|
|
TSKNQ125
|
220
|
50
|
0.36
|
80
|
2250
|
405
|
47
|
2
|
390
|
|
TSKNQ150
|
220
|
50
|
0.59
|
130
|
2150
|
720
|
52
|
3
|
400
|
|
TSKNO160
|
220
|
50
|
0.59
|
130
|
2200
|
755
|
52
|
3
|
420
|
|
TSKNO200
|
220
|
50
|
0.77
|
170
|
2100
|
1000
|
53
|
4
|
550
|
|
TSKNO250
|
220
|
50
|
0.81
|
180
|
2100
|
1105
|
55
|
4
|
670
|
|
TSKNQ315
|
220
|
50
|
1.27
|
280
|
2100
|
1420
|
57
|
6
|
780
|
|
TSKNQ355
|
220
|
50
|
1.5
|
350
|
2800
|
1870
|
65
|
12
|
980
|
size specification
型号
(No.)
|
A
|
B
|
C
|
D
|
E
|
|
TSKNO100
|
194
|
23
|
245
|
100
|
290
|
|
TSKNO125
|
200
|
27
|
245
|
125
|
290
|
|
TSKNO150
|
226
|
24
|
335
|
150
|
380
|
|
TSKNO160
|
226
|
28
|
335
|
160
|
380
|
|
TSKNO200
|
217
|
27
|
335
|
200
|
380
|
|
TSKNO250
|
206
|
25
|
335
|
250
|
380
|
|
TSKNO315
|
240
|
26
|
395
|
315
|
450
|
|
TSKNO355
|
500
|
32
|
400
|
355
|
533
|
