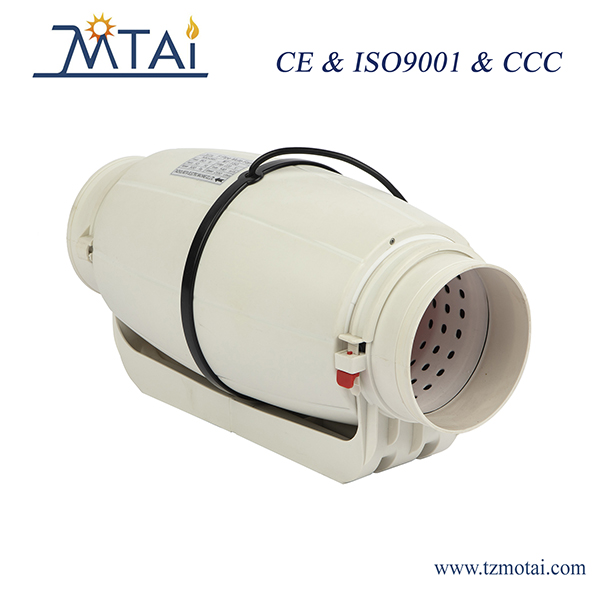

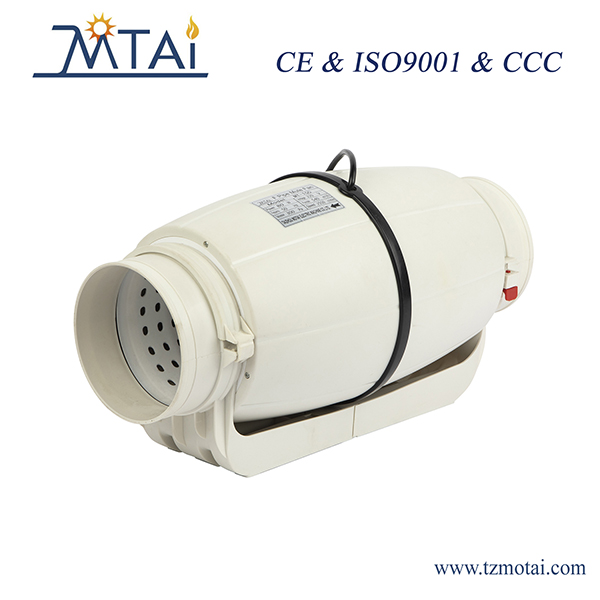

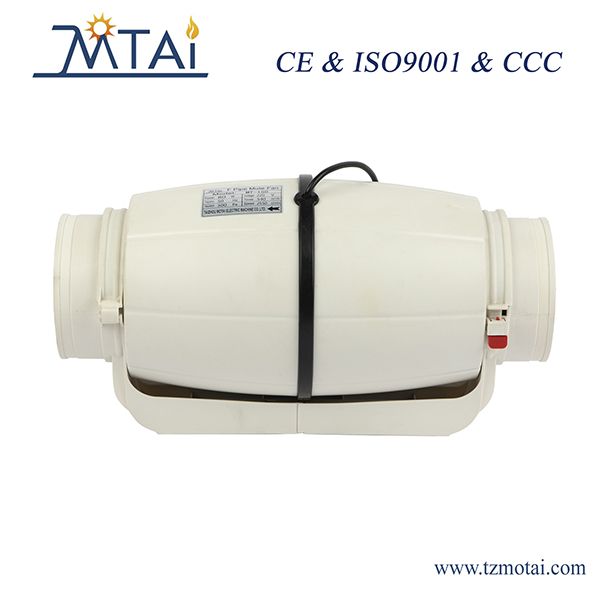

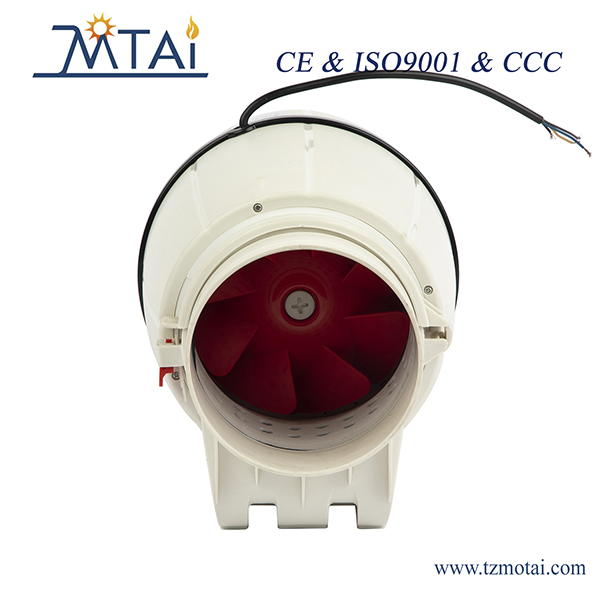

Name: HF Strong Exhaust High EfficiencyQuiet Ventilation Centrifugal Fan Evergy Saving
Type: HF-100~HF-315
  • PUMP
  • PUMP
  • PUMP
  • PUMP
Product details
HF SERIES INCLINED FLOW SILENCING BOOSTER PIPELINE FAN
1.Brief Instruction

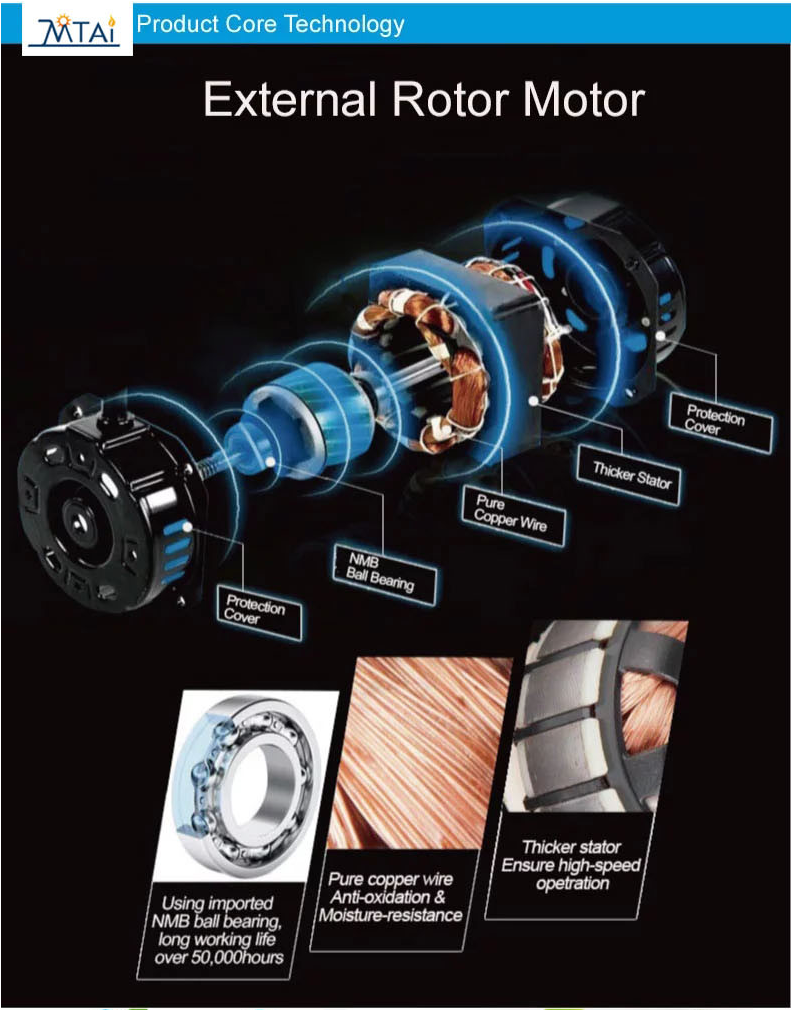

HF Series pipeline booster fan is a new designed fan ,which is used the pure copper wire as the stator winding ,stainless stell rotor ,plastic blad fan, good quality cable ,fan body is made of fire-retardant ABS material and main body could be detachable .The air inlet and outlet can be connected with the circular pipe for same diamter.The motor can be easily assembled and dispacthed ,very easy to maintenance .

Specifications

1.CE,IP44/IP56

2.Two Speed
3.Easy maintenance
4.Shall be connected to any point on the ventilation duct to meet.

Model NO.

HF-100

Tuyere dimension

313*225*210 MM

Motor style

Series pole motor

Speed

High speed; Low speed

Weight

1.5kg

No.of.Blade

10

Rotating Direction

CCW


2.Features and Function
Large air flow,high pressure ,low noise and Low vibration ,energy saving ,long-life span,small size,
light weight ,stable operation etc .This fan could  effectivly adjust the air ,control hot air ,wipe off damp&dust&off-flavor,make the indoor air refreshing ,which already take place of the traditional axial fan .
Features:
1.Guide vanes as standard
2.Low profile to allow for ease of installation in narrow spaces
3.Models with run-on timers available
4.Sealed for life ball bearings
5.IP44 rated and 2 years guarantee
Benefits:
1.Removable central cartridge for ease of cleaning and
maintenance
2.Versatile and Ease of installation
3.Can be mounted at any place on the air duct
4. 2 Speed controllable

3.Application
HF mixed flow fan can be used for exhaust and supply ventilation systems that require high pressure, powerful airflow and low noise levels. With a range of sizes that include 100, 125, 150, 200mm. HF fan can be used witg rigid and flexible ducting. The HF mixed flow fan is ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchens. As well as ventilation for apartments, houses, shops.
It is widely used in home-use and public places such as home ,apartments ,Villas ,offices ,meeting room ,supper market ,shopping malls ,hotels ,restaurant, Cinema,dance malls,stations ,etc .

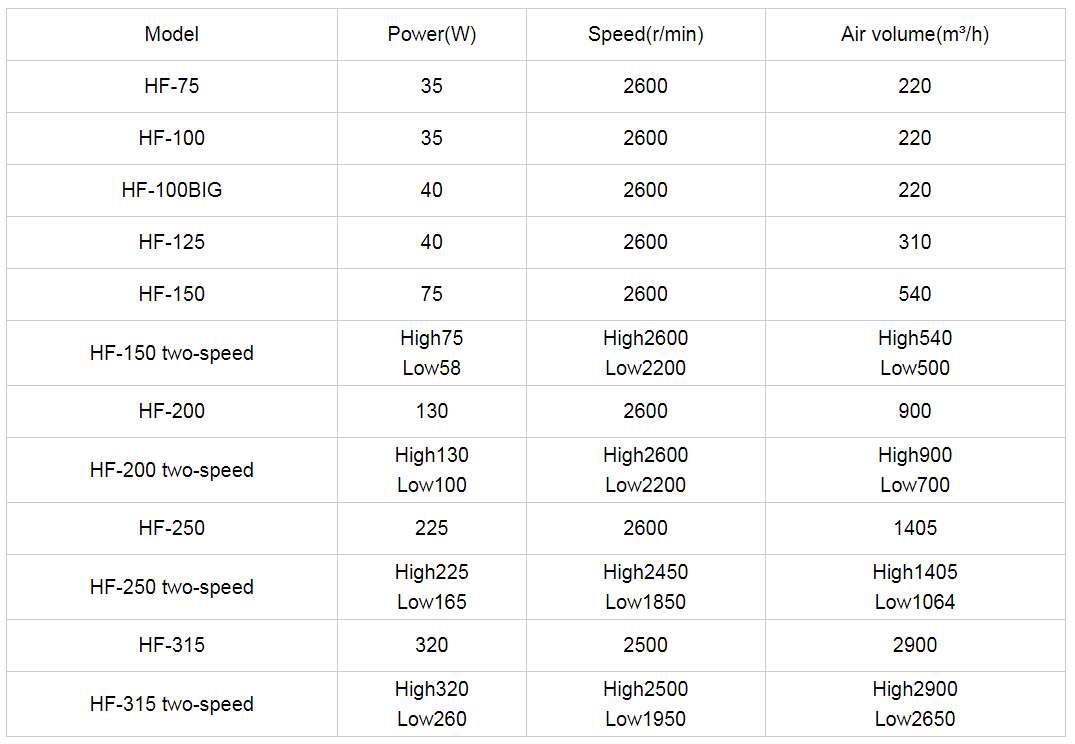

4.Technical Parameters

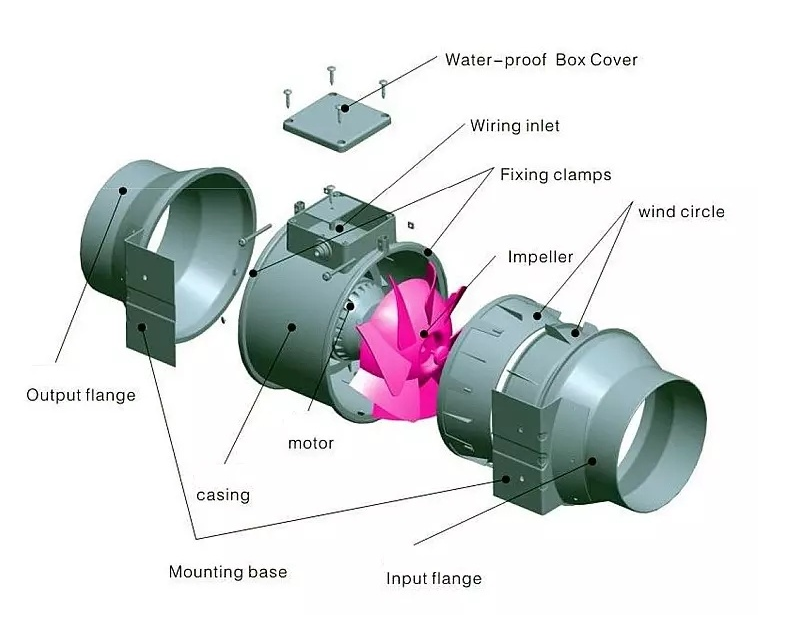

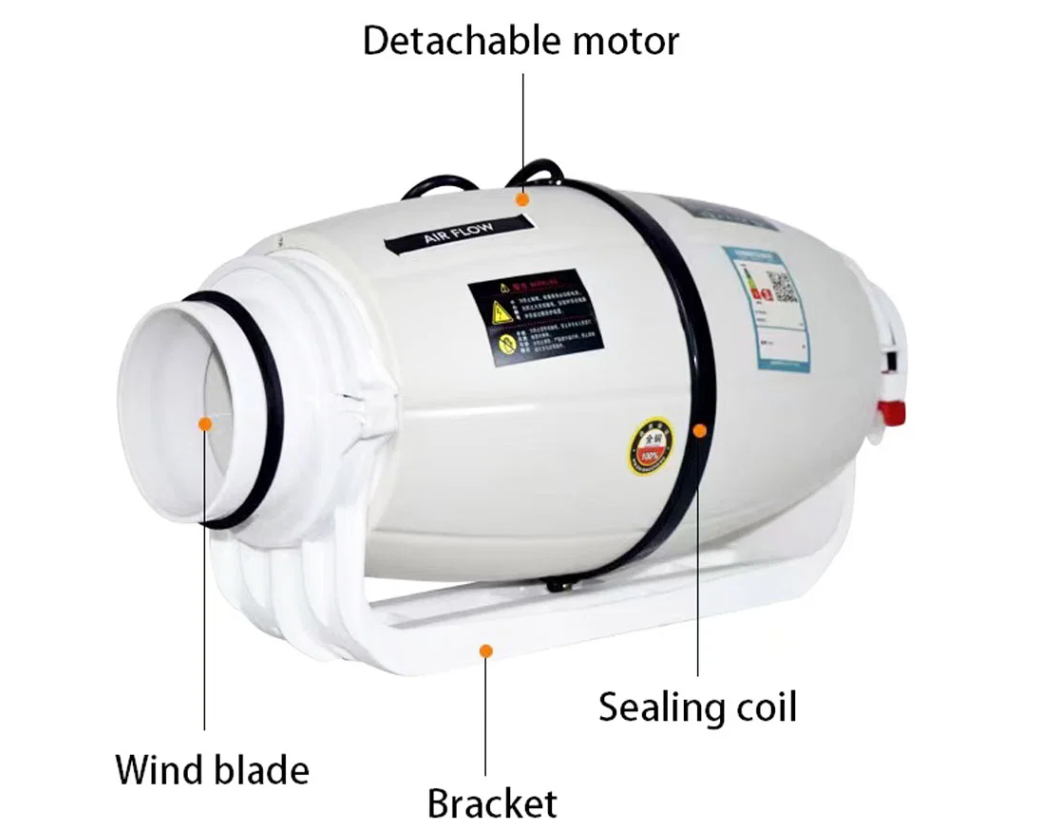

5.Product Structure Diagram

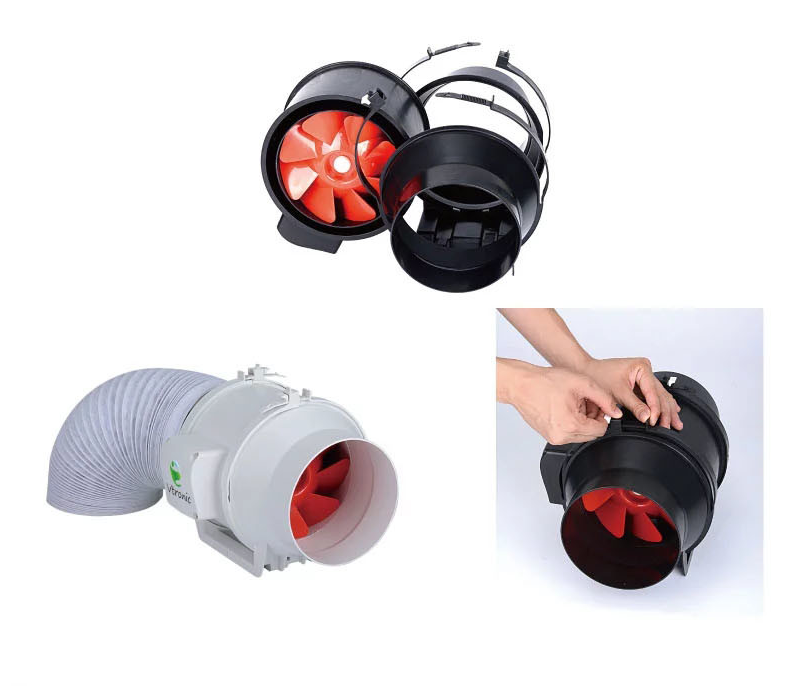

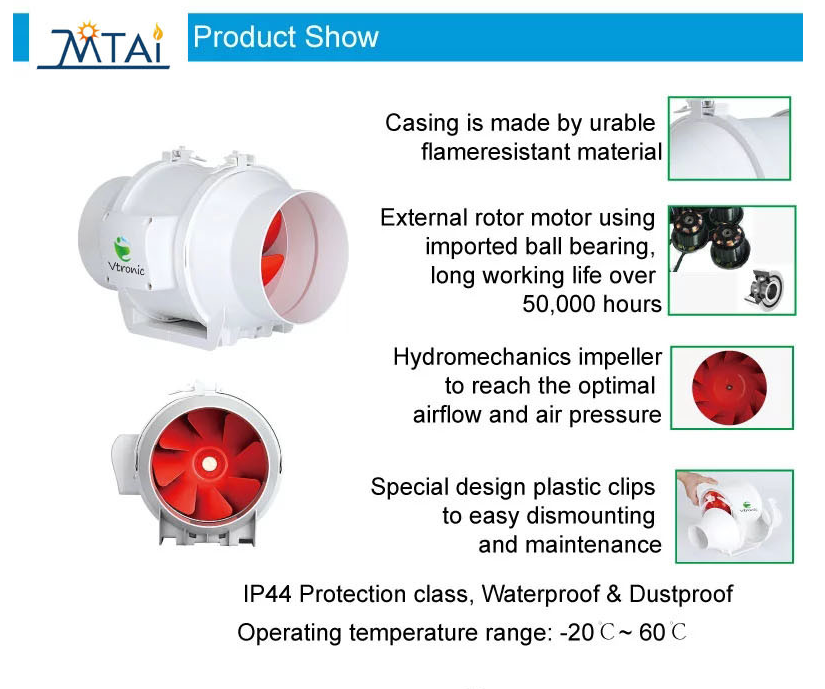

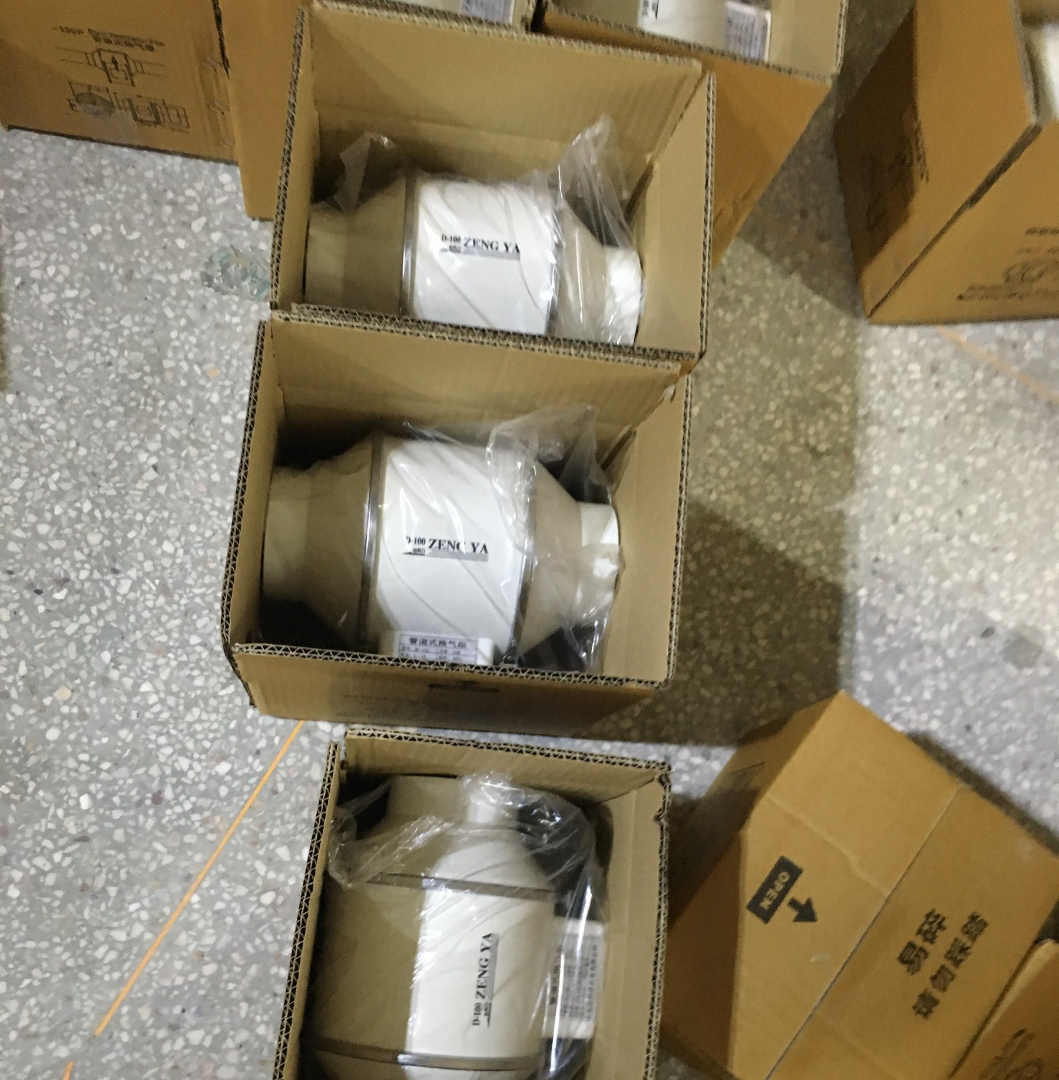

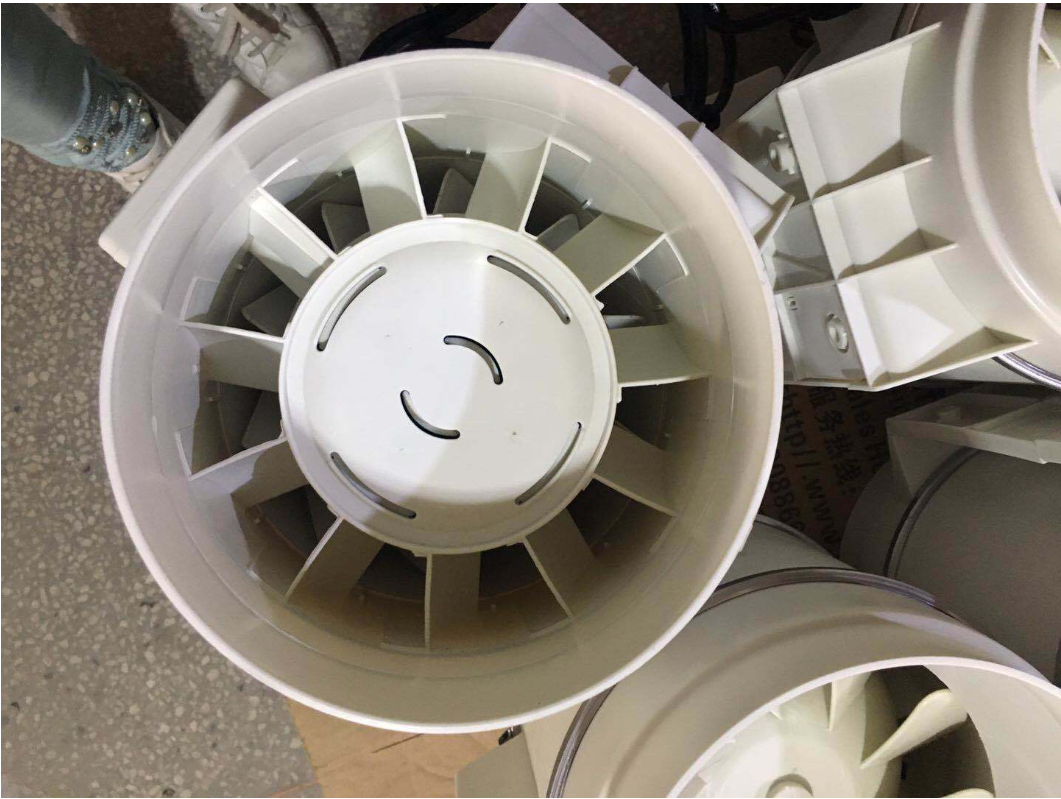

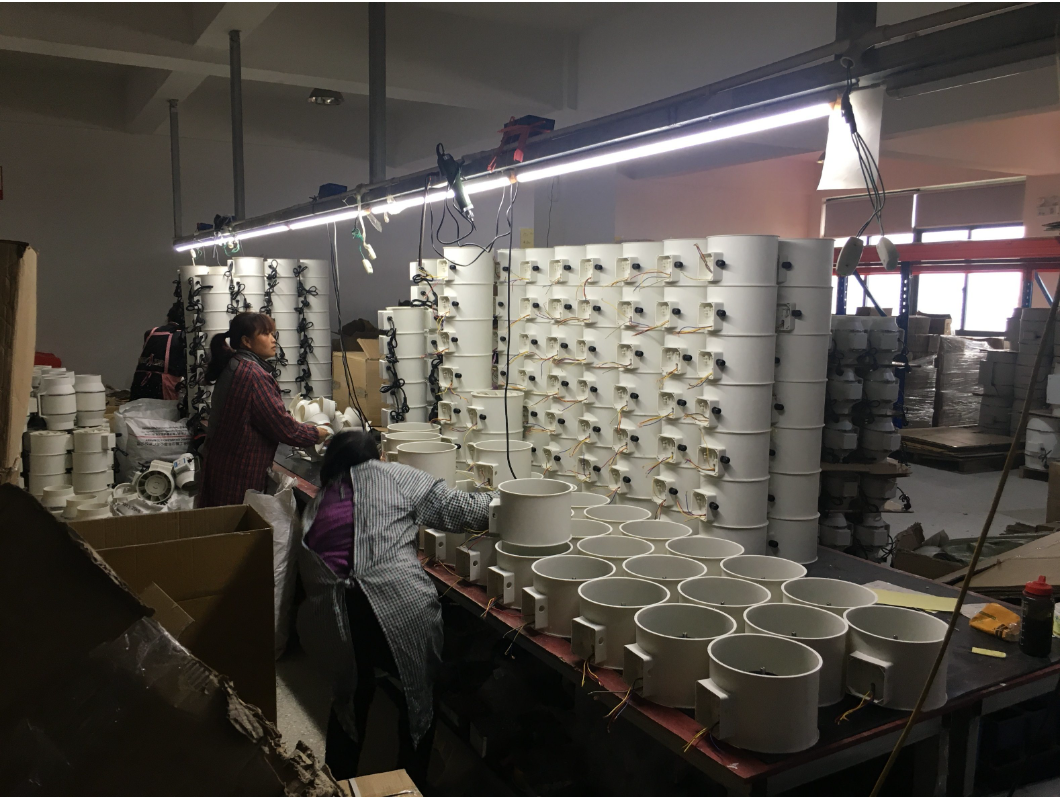

6.Fan Product Show





7.Our service:
 Marketing Service
100% tested CE certified blowers.Special customized blowers(ATEX blower,belt-driven blower) for special industry.Like gas transportation,Medical industry...Professional advice for model selection and further market development.
Pre-sales service:
•We are a sales team, with all technical support from engineer team.
•We value every inquiry sent to us, ensure quick competitive offer within 24 hours.
•We cooperate with customer to design and develop the new products. Provide all necessary document.
After-sales service:
•We respect your feed back after receive the motors.
•We provide 1years warranty after receipt of motors..
•We promise all spare parts available in lifetime use.
•We loge your complain within 24 hours.
