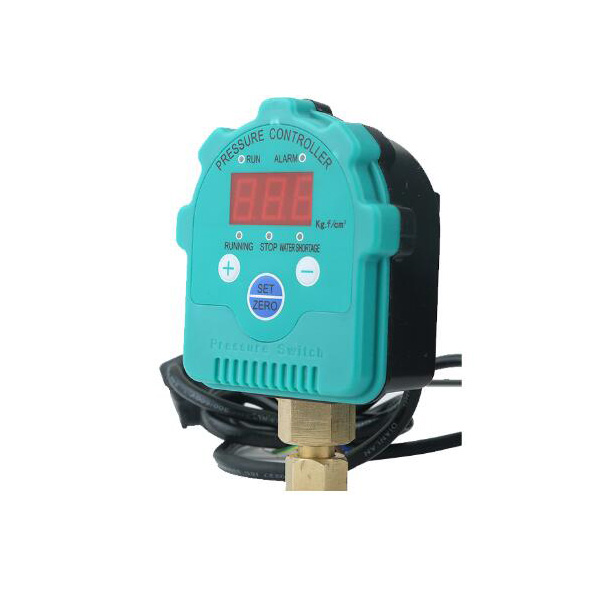

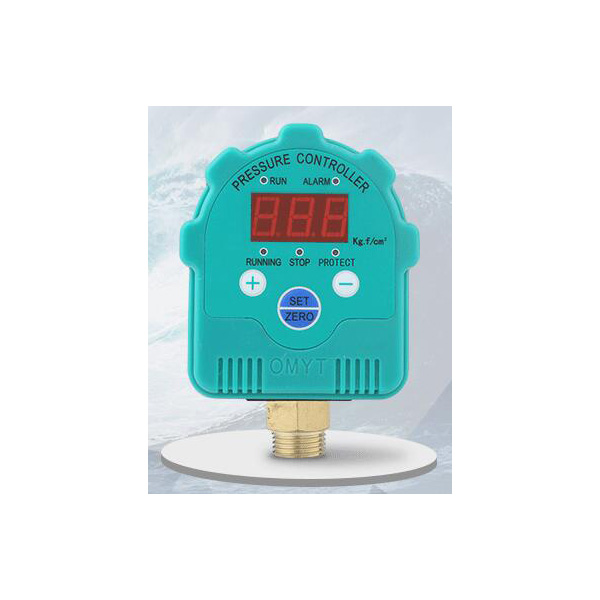

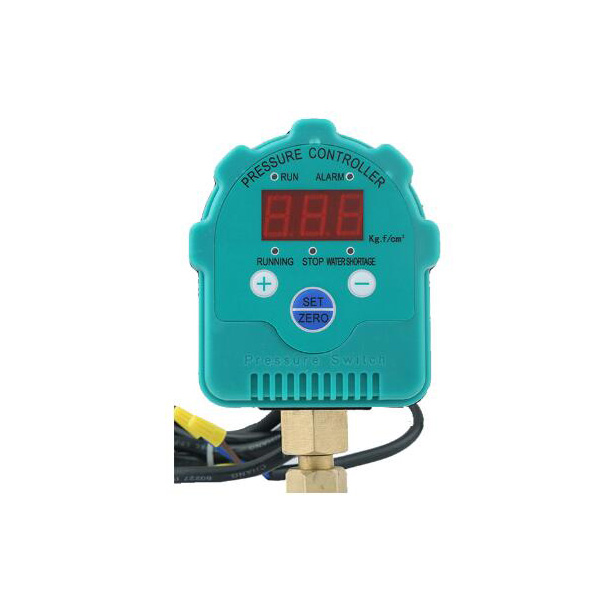

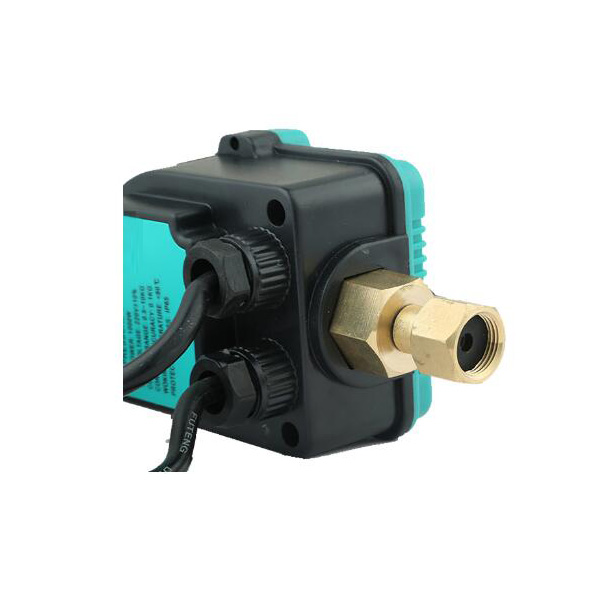

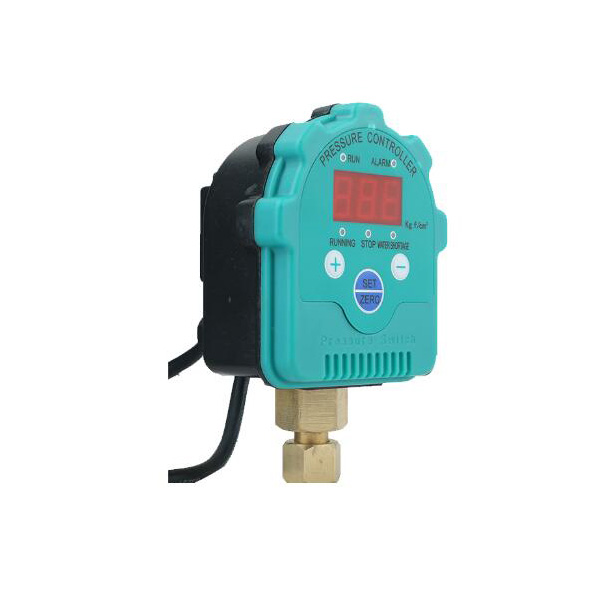

Name: Automatic Water Pump High Pressure Control Switch
Type: APC-10AC
  • PUMP
  • PUMP
  • PUMP
  • PUMP
  • PUMP
  • PUMP
Product details
Product Features
1.APC-10A/C Pressure controller has built-in Ceramic Pressure Sensor,which could withstand high voltage ,High Temperature-Resistance and could show the pressure accurate and stable.
2.Humanization Design .Start Pressure ,Current Pressure ,Stop Pressure could shift normally
3.It could casually set the start pressure between stop pressure ,which could prevent the pump start up frequently
4.This Pressure controller could automaticly stop the pump if no water within 3mins,
start the pump once have water and it also could automaticlly check circularly  the water supply in 30mins
5.The Controller automaticlly starts pump up intervally 24hours , operating 5 seconds every time ,which could effectively prevent the pump to be rusted if long time no working

Application Range
APC-10A/C is suitable for Pipeline pump ,Booster pump ,self-priming pump ,submersible pump ,circulation pump ,especially suitable for Solar heat pump ,
Air-source heat pump, No tower water supply ,etc .

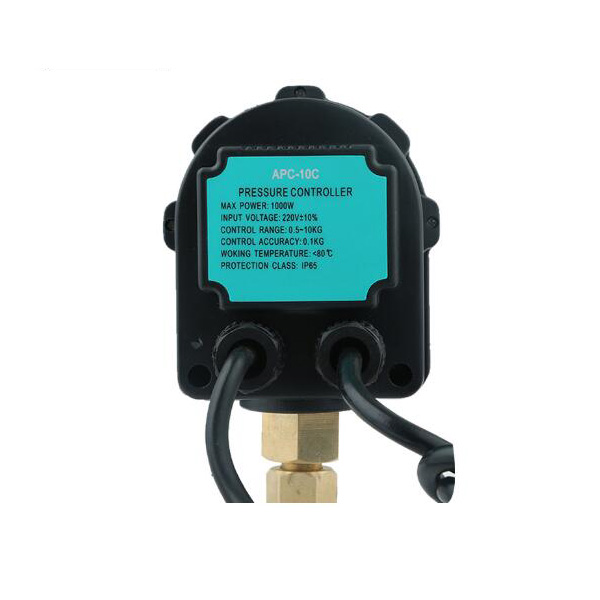

Technical Parameters
Product name Pressure Switch
Usage/Application Pump and other pressure control system
Material ABS+Brass
Max.Working Pressure 8Bar
Rated Input Voltage 220V;110V(Customizable)
Rated Output Voltage 220V;110V(Customizable)
Frequency 50HZ&60HZ
Connection Size 1/4;3/8;1/2
AC Plug Customizable
Color Green(Available)
Brand Name TZMOTAI
Packing Carton (20pcs in 1 Carton)
Place of Origin Taizhou,China
