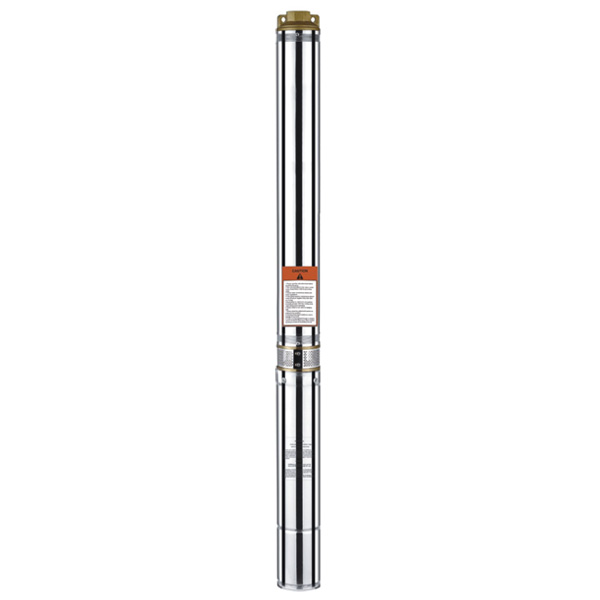

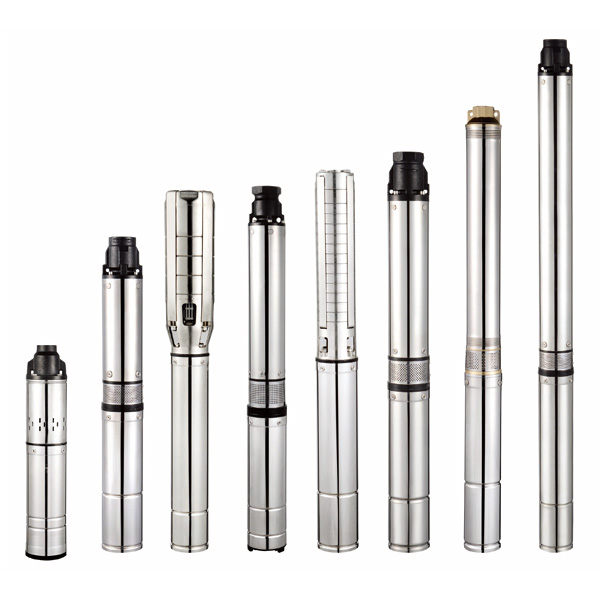

Name: QJ/QJD Series Stainless Steel Deep-well Water Pump
Type: QJ/QJD
Product details
Pumps installation and application
The submersible motor pump is a complete of equipment to draw water form deep well.it is widely used in farm irrigation and drainage of water in the city and rural utilities,factory, mine and building site.It operates under water.There is no pollution to the water.It features with compact construction small volume, light weight,convenient to usage and maintenance economizing on energy etc.
Operating conditions
1. Medium temperature must not above 40℃
2. PH range of Medium between 6.5-8.5;
3. Volume ration of solid partial content shall be within 0.1%, size of solid particle shall be not bigger than 0.2mm;
4. Power suppiy shall be 220V and 50Hz,voltage is allowed to fluctuate between 0.9 to 1.1 times of its rated voltage;
5. The depth of the pump under water must be less than 5 metres.

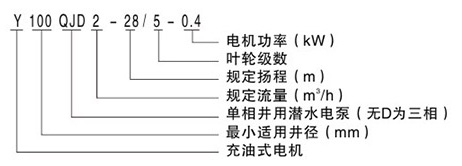

Model description
Performance Specifications
|
MODEL
|
CAPACITY
(m³/h)
|
HEAD
(m)
|
Freq.
Hz
|
RATED SPEED
(R/MIN)
|
POWER
(kW)
|
SIZE
(inch)
|
VOLTAGE
(V)
|
|
80QJD2-30/5-0.4(30M)
|
5
|
40
|
50
|
3000
|
0.4
|
1/1.5
|
220
|
|
80QJD2-40/7-0.6(30M)
|
5
|
50
|
50
|
3000
|
0.6
|
1/1.5
|
220
|
|
80QJD2-50/8-0.8(30M)
|
5
|
60
|
50
|
3000
|
0.8
|
1/1.5
|
220
|
|
90QJD2-30/5-0.37(30M)
|
6
|
40
|
50
|
3000
|
0.37
|
1/1.5
|
220
|
|
90QJD2-40/6-0.55(30M)
|
6
|
50
|
50
|
3000
|
0.55
|
1/1.5
|
220
|
|
90QJD3-50/7-0.75(30M)
|
6
|
60
|
50
|
3000
|
0.75
|
1/1.5
|
220
|
|
90QJD3-60/9-1.1(30M)
|
6
|
80
|
50
|
3000
|
1.1
|
1/1.5
|
220
|
|
90QJ3-50/7-0.75(30M)
|
6
|
60
|
50
|
3000
|
0.75
|
1/1.5
|
380
|
|
90QJD3-60/9-1.1(30M)
|
6
|
70
|
50
|
3000
|
1.1
|
1/1.5
|
380
|
|
90QJD5-25/4-0.55(30M)
|
10
|
30
|
50
|
3000
|
0.55
|
1/1.5
|
220
|
|
90QJD5-30/5-0.75(30M)
|
10
|
35
|
50
|
3000
|
0.75
|
1/1.5
|
220
|
|
90QJD5-30/6-0.85(20M)
|
7
|
50
|
50
|
3000
|
0.85
|
1/1.5
|
220/380
|
|
90QJD5-40/8-1.1(20M)
|
7
|
60
|
50
|
3000
|
1.1
|
1/1.5
|
380
|
|
Y90QJD2-60/8-0.75(40M)
|
6
|
70
|
50
|
3000
|
0.75
|
1/1.5
|
220
|
|
Y90QJD2-70/9-1.1(40M)
|
6
|
80
|
50
|
3000
|
1.1
|
1/1.5
|
220
|
|
Y90QJD2-85/11-1.5(40M)
|
6
|
90
|
50
|
3000
|
1.5
|
1/1.5
|
220
|
|
Y90QJ3-40/8-0.75(40M)
|
7
|
70
|
50
|
3000
|
0.75
|
1/1.5
|
380
|
|
Y90QJ3-50/10-1.15(40M)
|
7
|
80
|
50
|
3000
|
1.1
|
1/1.5
|
380
|
|
Y90QJ3-60/12-1.5(40M)
|
7
|
90
|
50
|
3000
|
1.5
|
1/1.5
|
380
|
|
Y90QJ3-70/14-2.2(40M)
|
7
|
100
|
50
|
3000
|
2.2
|
1/1.5
|
380
|
|
Y90QJ3-80/16-3(40M)
|
7
|
110
|
50
|
3000
|
3
|
1/1.5
|
380
|
|
Y130QJD5-35/3-0.75(20M)
|
12
|
50
|
50
|
3000
|
0.75
|
1.5
|
220
|
|
Y130QJD5-45/4-1.1(30M)
|
12
|
60
|
50
|
3000
|
1.1
|
1.5
|
220
|
|
Y130QJD5-50/5-1.5(30M)
|
12
|
70
|
50
|
3000
|
1.5
|
1.5
|
220
|
|
Y130QJD5-60/6-2.2(30M)
|
12
|
80
|
50
|
3000
|
2.2
|
1.5
|
220
|
|
Y130QJ5-50/7-1.1(40M)
|
12
|
80
|
50
|
3000
|
1.1
|
1.5
|
380
|
|
Y130QJ5-60/8-1.5(40M)
|
12
|
90
|
50
|
3000
|
1.5
|
1.5
|
380
|
|
Y130QJ5-80/10-2.2(40M)
|
12
|
110
|
50
|
3000
|
2.2
|
1.5
|
380
|
|
Y130QJ5-100/13-3(30M)
|
12
|
140
|
50
|
3000
|
3
|
1.5
|
380
|
|
Y100QJD2-28/5-0.4
|
7
|
35
|
50
|
3000
|
0.4
|
1/1.5
|
220/380
|
|
Y100QJD2-36/7-0.6
|
7
|
50
|
50
|
3000
|
0.6
|
1/1.5
|
220/380
|
|
Y100QJD2-45/9-0.8
|
7
|
65
|
50
|
3000
|
0.8
|
1/1.5
|
220/380
|
|
Y100QJD2-60/12-1.1
|
7
|
90
|
50
|
3000
|
1.1
|
1/1.5
|
220/380
|
