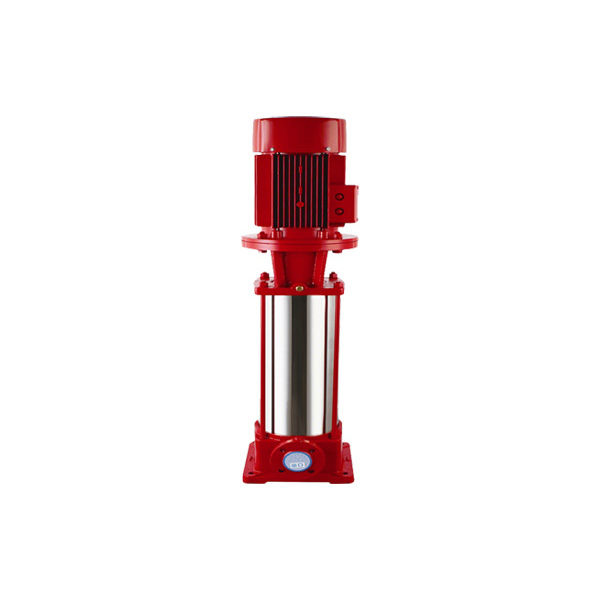

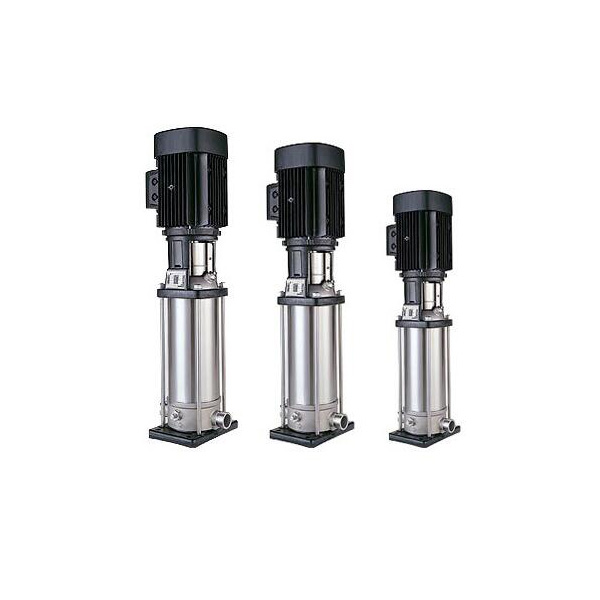

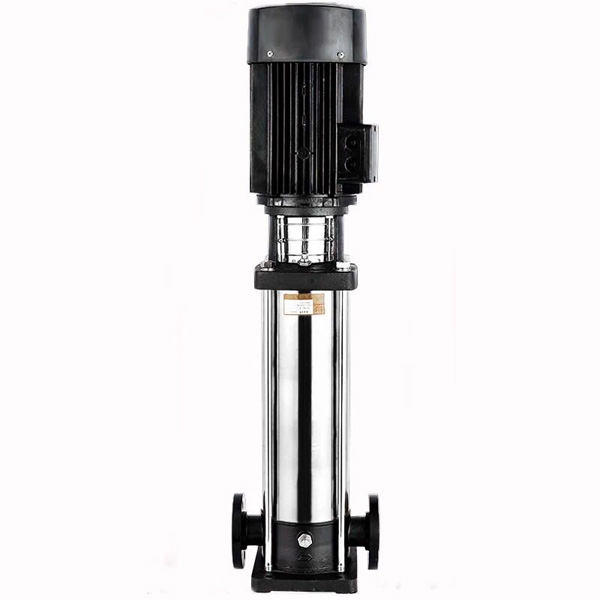

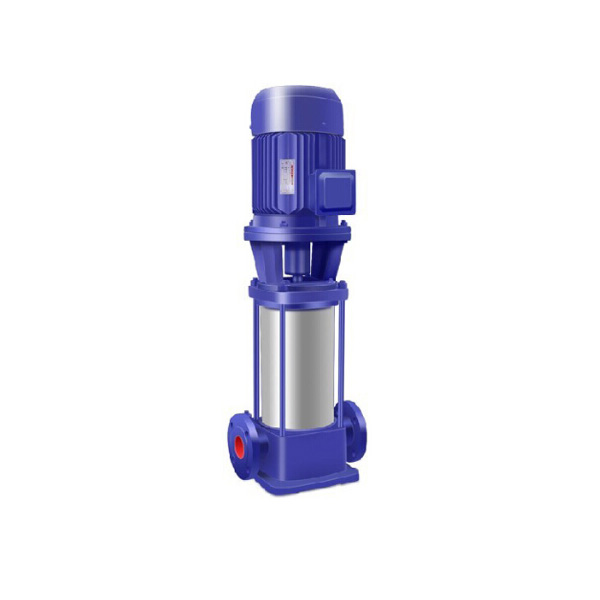

Name: CDL Seris Vertical Stainless Steel Multi-stage Centrifugal Pump
Type: CDL
  • PUMP
  • PUMP
  • PUMP
  • PUMP
Product details
CDL is a versatile product that can deliver a variety of different media from tap water to industrial fluids to suit different temperatures, flow and pressure ranges.
1. Water supply: water plant filtration and transportation, water plant partition water, in charge of pressurization, fire control system.
2. Industrial pressurization: process water system, cleaning system, high pressure flushing system, fire protection system.
3. Industrial liquid transport: cooling and air conditioning systems, boiler feed water and condensation systems, machine tools, acid and alkali.
4. Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
Irrigation: farmland irrigation, drip irrigation.
Operating conditions
Thin, clean, non-flammable and explosive and does not contain solid particles or fiber liquid.
Liquid temperature: room temperature type -15ºC to +70ºC
                             Hot water type -15ºC to + 120ºC
Ambient temperature: up to + 40ºC
Flow range: 0.4 ~ 50m³ / h
Medium PH range: PH3 ~ 11;
The highest altitude: ≤ 1000m;
Maximum working pressure: 2.5Mpa.
When the specific gravity and viscosity of the pump is greater than the water, the shaft power increases, so the motor must match the shaft power.
CDLF is a non-self-propelled vertical multi-stage centrifugal pump with standard motor. The motor shaft is connected with the pump shaft directly through the pump head coupling. The rod bolts connect the pressure cylinder and the overcurrent part between the pump head and the inlet and outlet , The pump inlet and outlet in the pump on the same line; the pump can be configured according to the need only protector, the pump dry turn, lack of phase, overload and other effective protection.
The motor is fully enclosed, air-cooled two-pole standard motor.
Protection class: IP55
Insulation class: F
Standard voltage: 50HZ  1P 200-230 / 240V
                         3P 200-220 / 346-380V
                        3P 220-240 / 380-4 15V
                         3P 380-415V

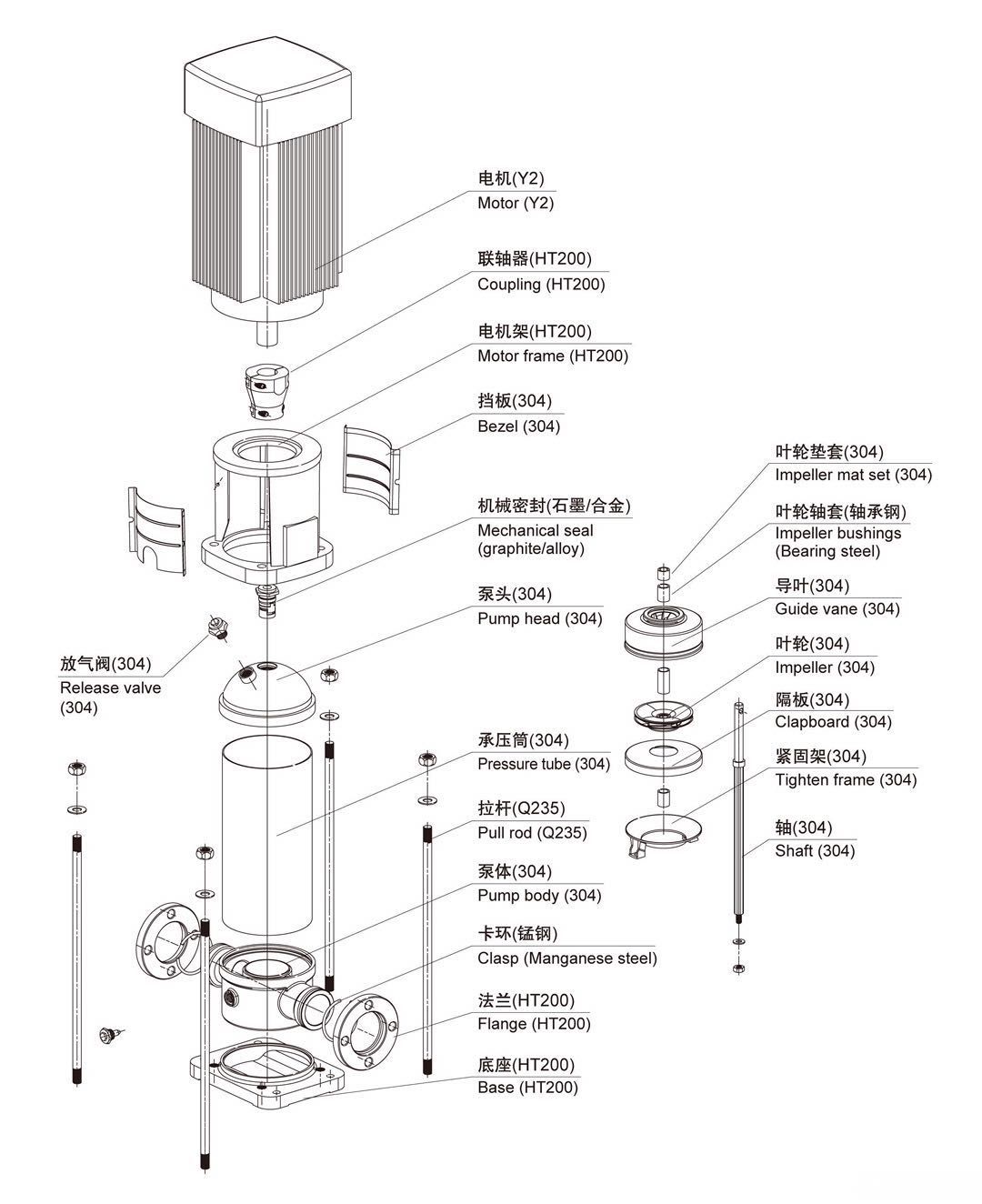

CDL Exploded Drawing

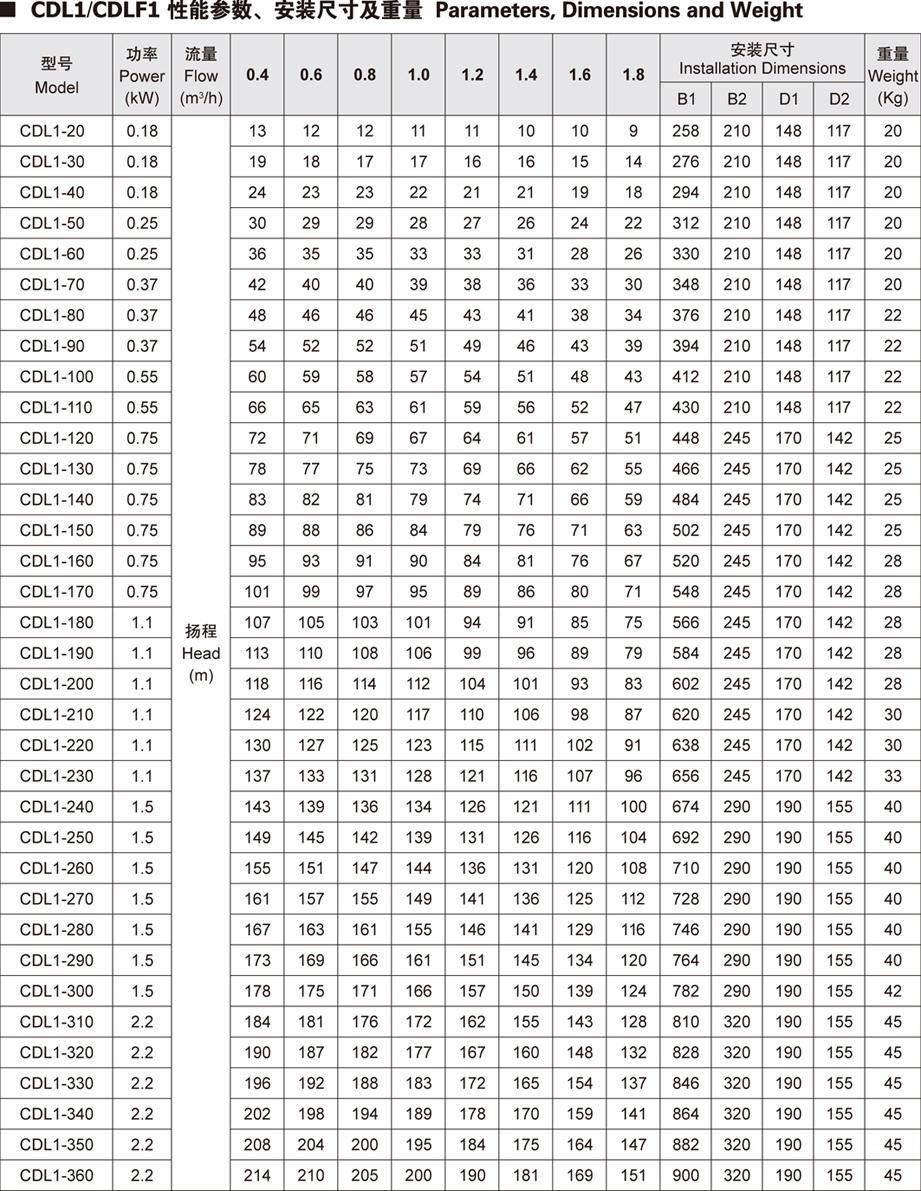

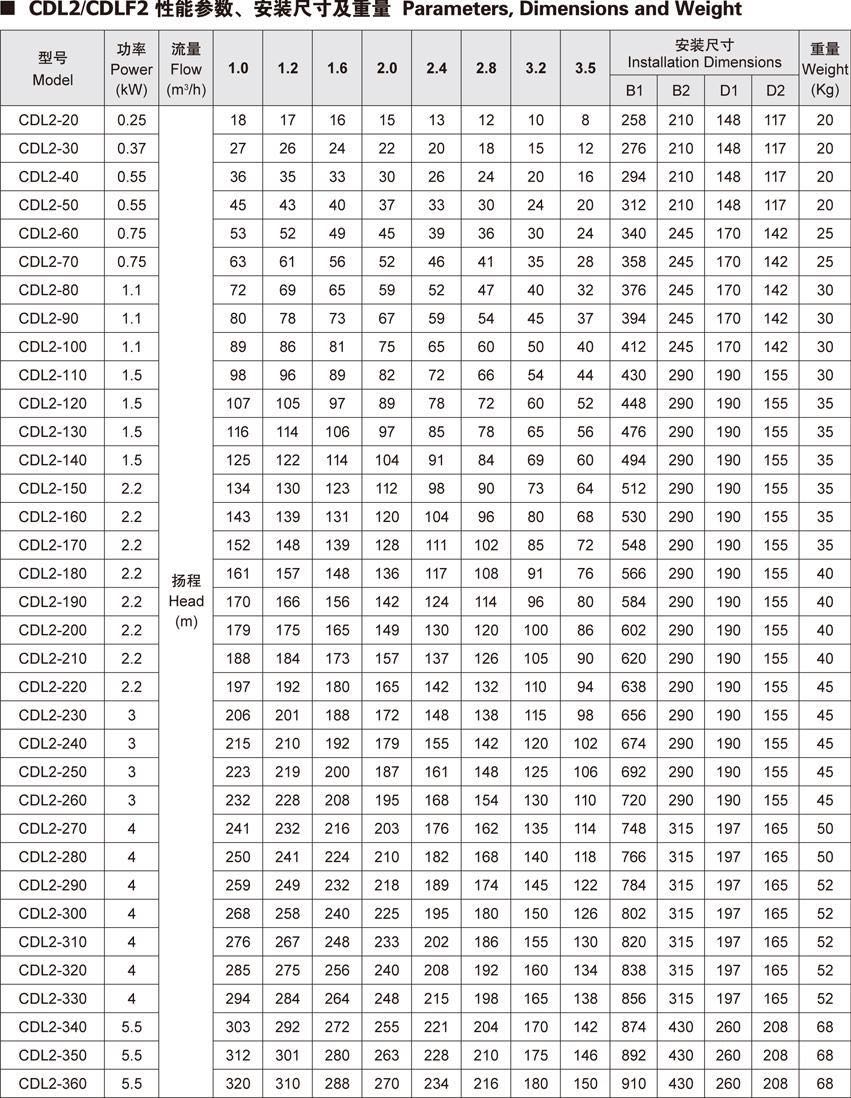

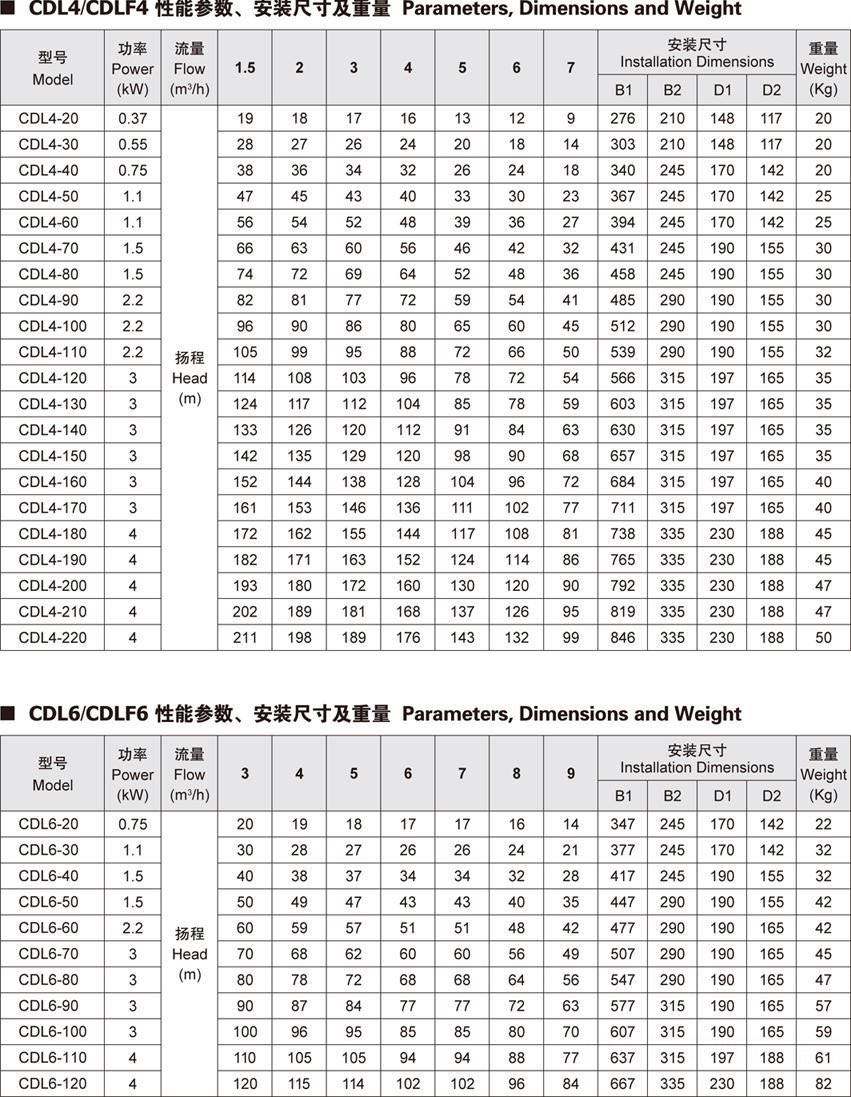

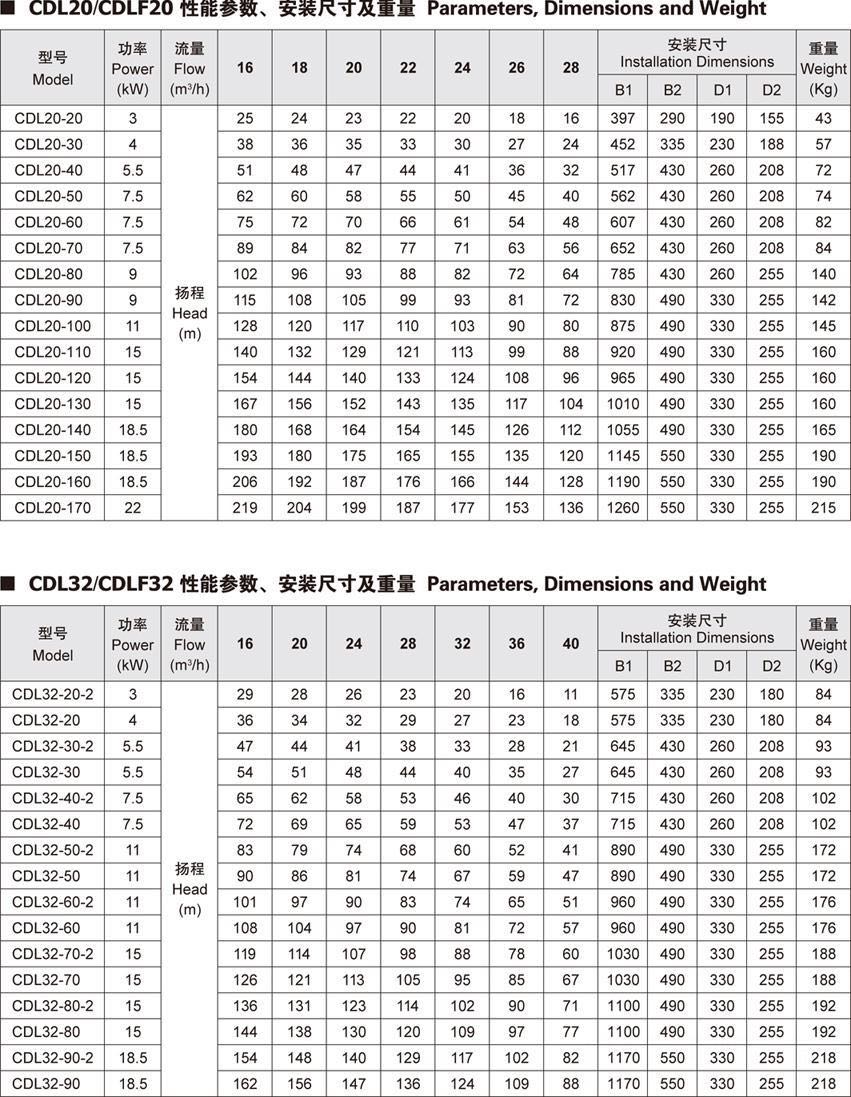

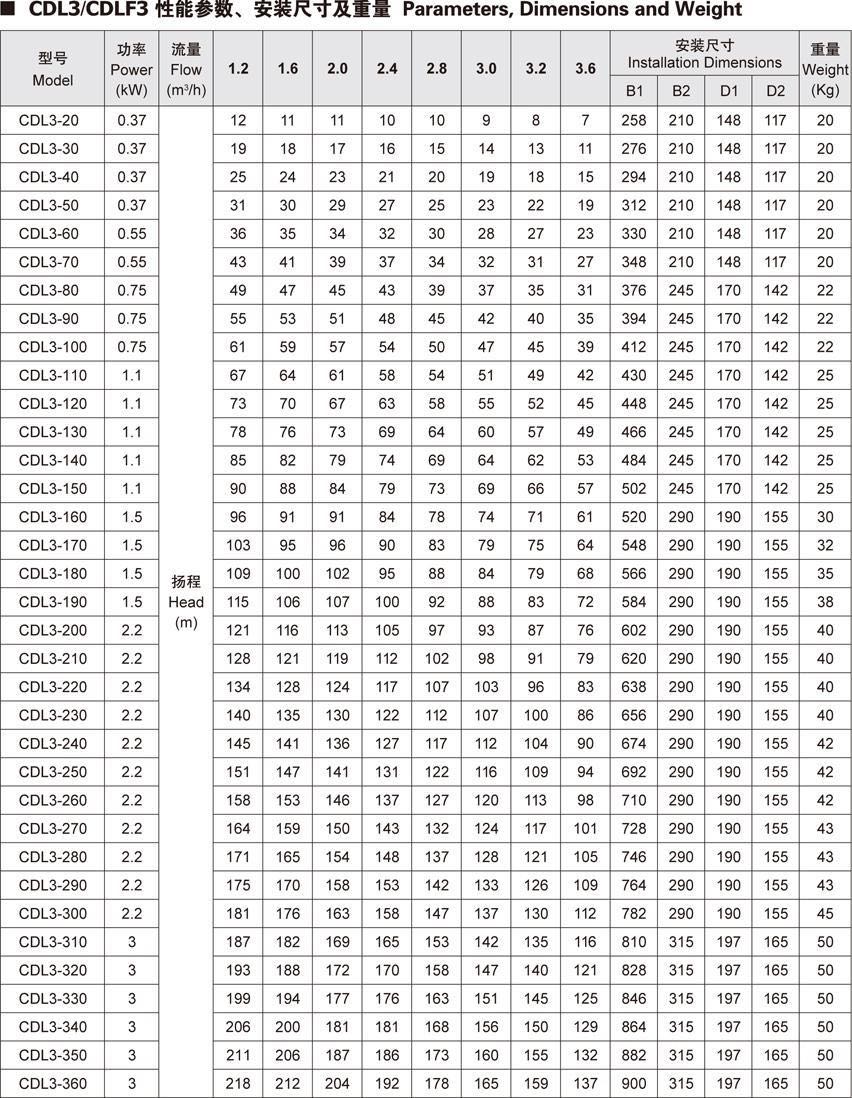

Technical Datas
