Product Introduction：

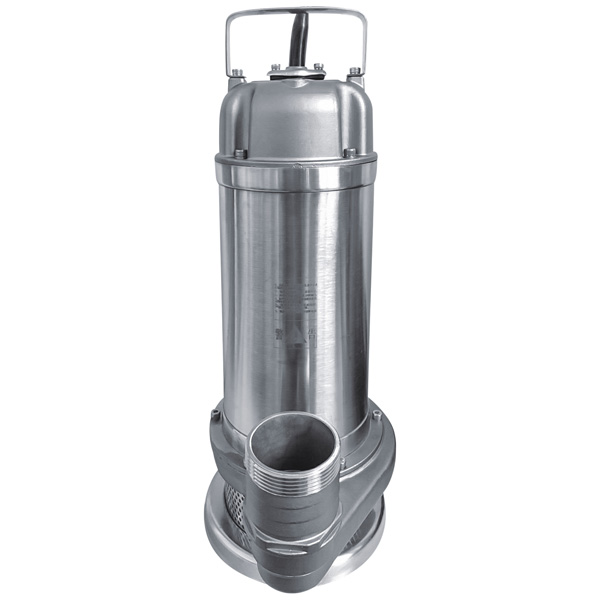

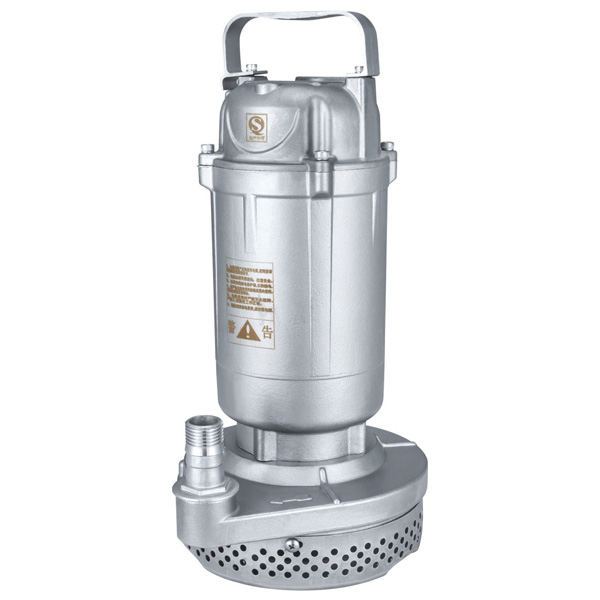

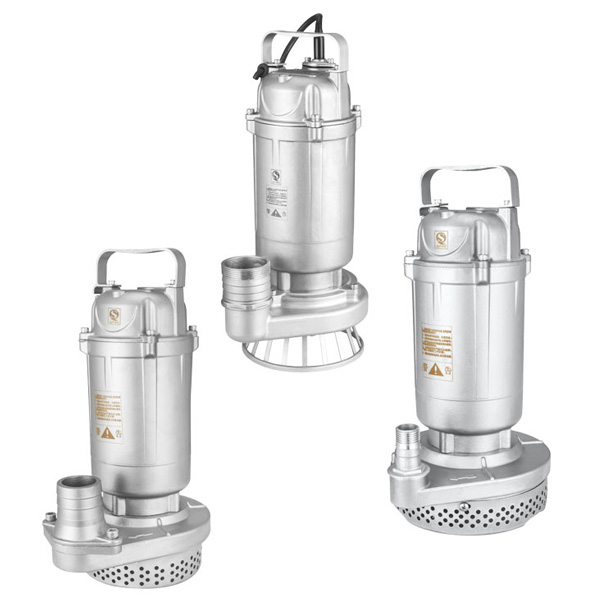

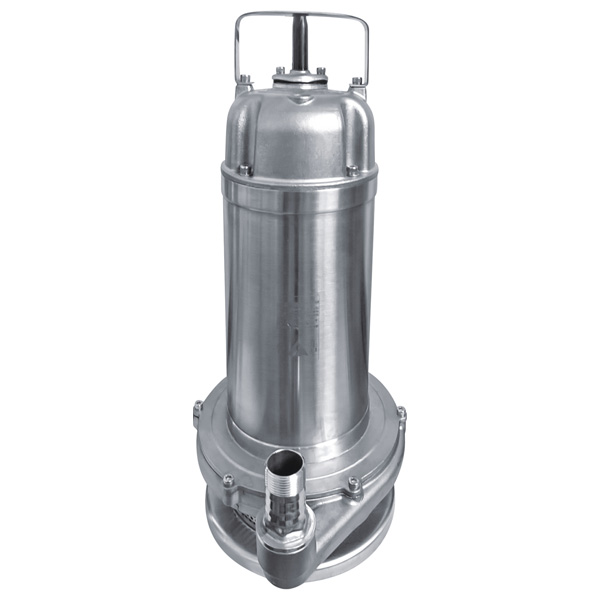

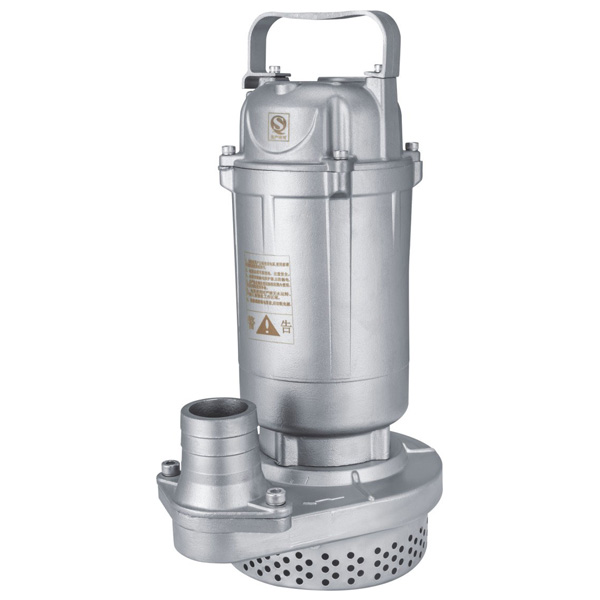

Q (D) X-S all stainless steel small submersible pump with stainless steel precision casting, corrosion-resistant, environmentally friendly, beautiful appearance, small size, durable.

Product Features：
1, the use of VITON double mechanical seal, VITON radial "O" ring seal, effectively against the harsh environment of liquid sealing protection.
2, the motor uses vacuum dipping paint to F grade insulation, built-in thermal protection device, greatly extending the pump life.
3, can be customized corrosion cable according to customer special requirements, PTFE seal, and high temperature motor. (To solve the use of liquid temperature ≤ 100 ℃ environment).
4, the use of stainless steel closed impulse welding impeller, greatly improving the head.
Application：
Applicable to industrial and mining enterprises, the food industry, mariculture, landscape engineering, deep water, chemical plating, irrigation and other general corrosive media.
Conditions of Use：
1, whichever is the center of the impeller, submerged depth shall not exceed 5m;
2, the transmission medium temperature is not higher than +40 ℃;
3, the transmission medium PH value 304 (4-10), 316 (4-13);
4, the transmission medium kinematic viscosity of 7 × 10-7-23 × 10-6m2 / s.
