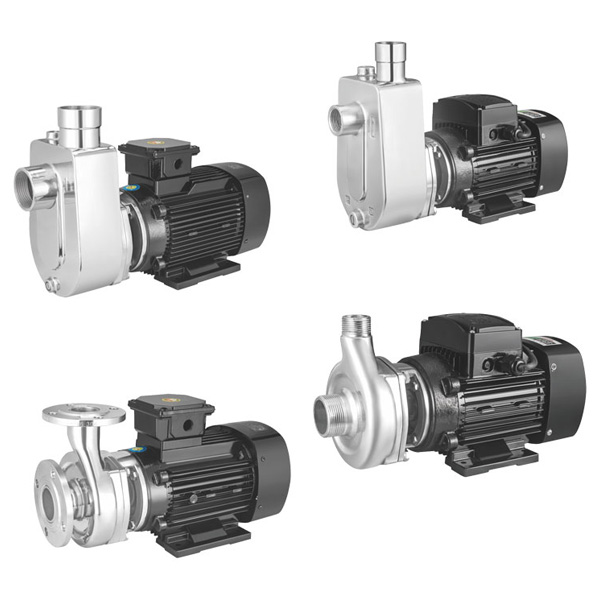

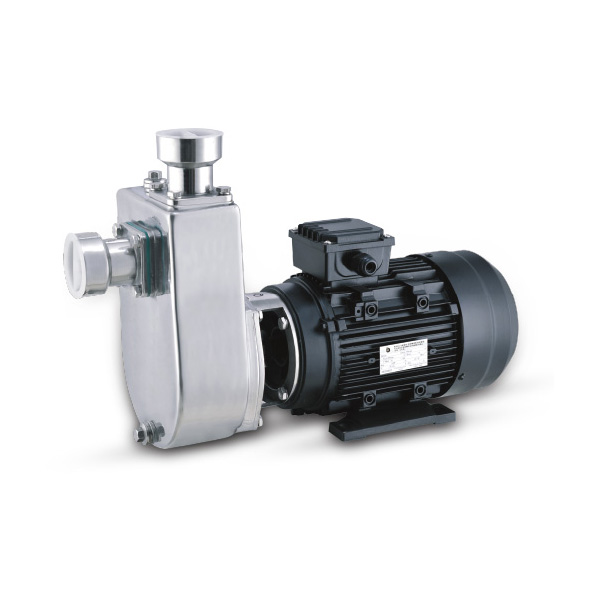

Name: WBZ(S)/WB(S) Stainless Steel Centrifugal/Self-priming Corrosion-resistant Pump
Type: WBZ(S)/WB(S)
  • PUMP
  • PUMP
Product details
Product Introduction:
(WBS) and WBS (S) series pumps are self-developed stainless steel centrifugal, self-priming micro-pump with corrosion resistance. The impeller is semi-open and swirling structure, and the flow parts and precision are used by stainless steel materials.
Product Features:
1, the use of stainless steel 304 welded shaft structure, effectively guarantee the life of the mechanical seal and impeller balance.
2, using PTFE seal, according to different customer needs can be equipped with explosion-proof motor.
The series of pumps can transport temperature is not higher than 103 ℃, containing small soft particles or fiber, with corrosive or hygienic requirements of the liquid, widely used in food, beverages, pharmaceuticals, sewage treatment, chemical, electroplating, dyeing, fine chemicals And other industries.
Conditions of Use:
1.The application of medium: the solid content of insoluble volume of not more than 0.1% of the unit volume, particle size is not greater than 0.2mm. (Mediums such as with a small particle to be used to wear mechanical seal, please specify when ordering.
2.The ambient temperature does not exceed 40 ℃, relative humidity of not more than 95%, altitude of not more than 1000m.
3.The transmission medium kinematic viscosity of 7×10-7-23×10-6m2/s.
