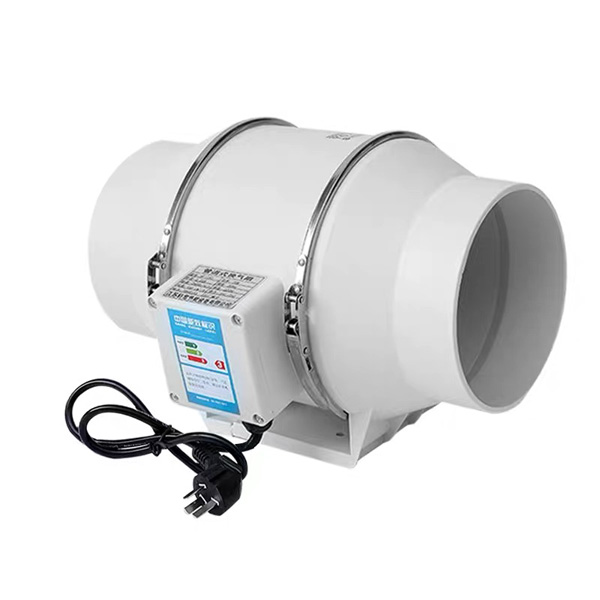

Name: HF SERIES INCLINED FLOW SILENCING BOOSTER PIPELINE FAN
Type: HF1
  • PUMP
  • PUMP
  • PUMP
  • PUMP
Product details

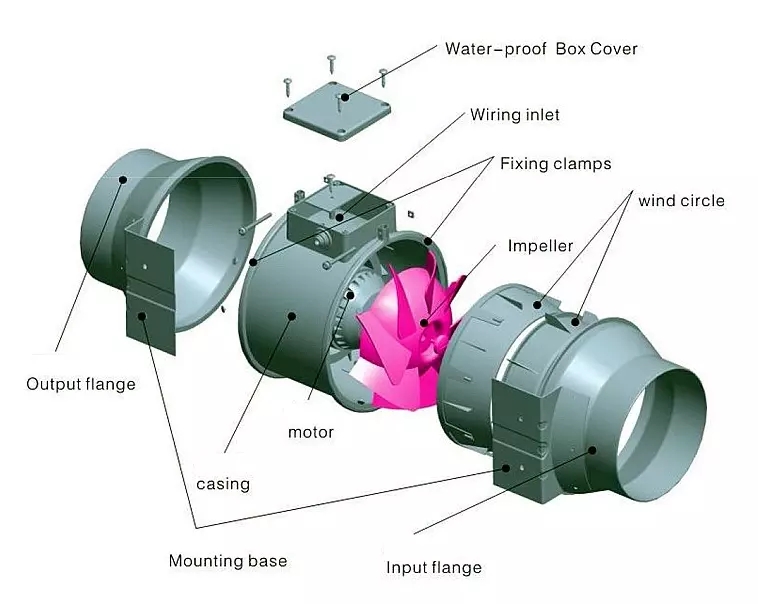

1.Brief Instruction

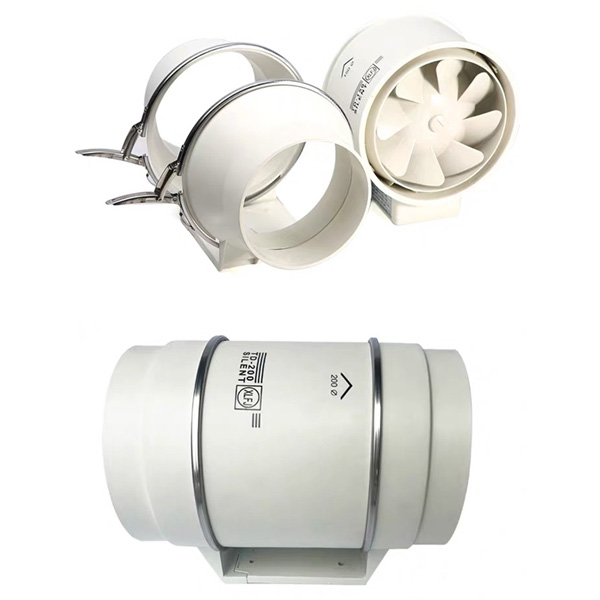

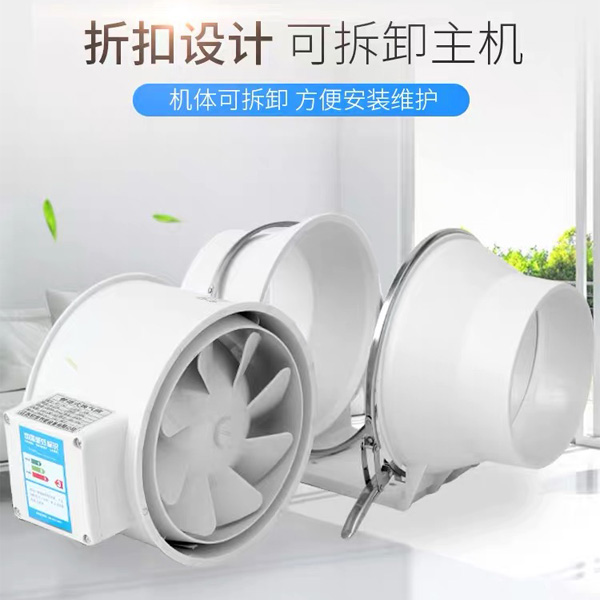

HF Series pipeline booster fan is a new designed fan ,which is used the pure copper wire as the stator winding ,stainless stell rotor ,plastic blad fan, good quality cable ,fan body is made of fire-retardant ABS material and main body could be detachable .The air inlet and outlet can be connected with the circular pipe for same diamter.The motor can be easily assembled and dispacthed ,very easy to maintenance . It has Large air flow,high pressure ,low noise and Low vibration ,energy saving ,long-life span,small size,light weight ,stable operation etc .This fan could  effectivly adjust the air ,control hot air ,wipe off  damp&dust&off-flavor, make the indoor air refreshing ,which already take place of the traditional axial fan .


2.Main Features
★The shell is made of polypropylene plastic, one-time disposable molded, with high anti-acid function.
★Using ABS blades, design by hydromechanics to reach the optimal air and pressure.
★Two-speed motor, imported NMB ball bearing, it's life expectancy up to 50,000 hours.
★IP44 Protection class, waterproof and dustproof more effective.
★Can be designed with a delay function, temperature sensors and humidity sensors, more of user-friendly features design.
★Run the ambient temperature range: -20°C~60°C.

3.Application

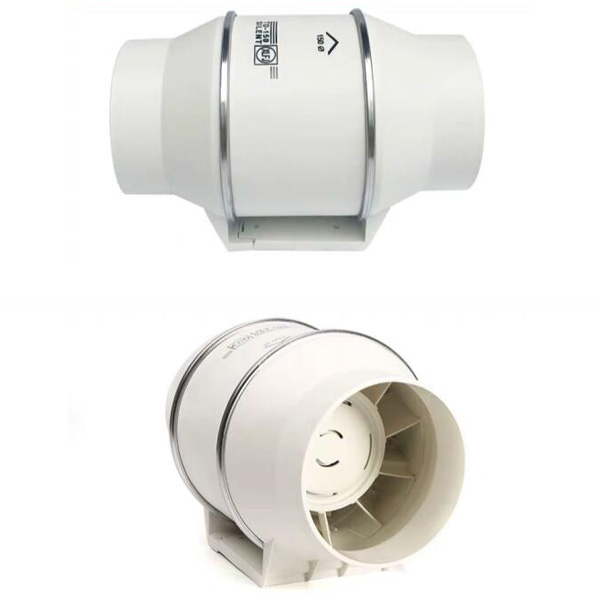

HF mixed flow fan can be used for exhaust and supply ventilation systems that require high pressure, powerful airflow and low noise levels. With a range of sizes that include 100, 125, 150, 200mm. HF fan can be used witg rigid and flexible ducting. The HF mixed flow fan is ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchens. As well as ventilation for apartments, houses, shops.
It is widely used in home-use and public places such as home ,apartments ,Villas ,offices ,meeting room ,supper market ,shopping malls ,hotels ,restaurant, Cinema,dance malls,stations ,etc .

4.Technical Parameters
MODEL Gear Voltage/Frequency Current Power Speed Weight Air flow Air pressure Avg.dBA@3m
A W RPM KG m3/h Pa dBA
HF-100 H 230V/50HZ 0.12 26 2200 2 198 156 31
L 0.11 23 1850 165 131 26
H 115V/60HZ 0.26 30 2200 198 156 31
L 0.24 28 1850 165 131 26
HF-125 H 230V/50HZ 0.14 33 2250 1.8 284 159 31
L 0.13 28 1850 248 106 26
H 115V/60HZ 0.30 32 2250 284 159 31
L 0.26 27 1850 248 106 26
HF-150 H 230V/50HZ 0.24 54 2550 2.7 530 300 33
L 0.21 48 1850 410 240 29
H 115V/60HZ 0.58 65 2550 530 300 33
L 0.49 53 1850 410 240 29
HF200 H 230V/50HZ 0.57 128 2450 4.9 840 352 39
L 0.52 123 1950 690 274 33
H 115V/60HZ 1.41 162 2450 840 352 39
L 1.28 146 1950 690 274 33

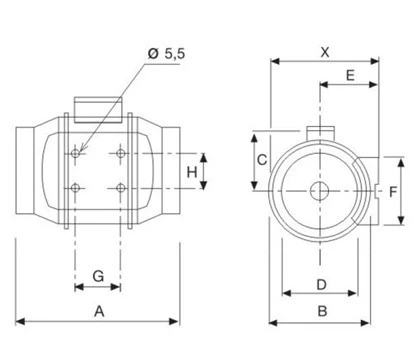

5.Installation Dimension

MODEL X A ΦB C ΦC E F G H
HF-100 188 303 176 115 97 100 90 80 60
HF-125 188 258 176 115 123 100 90 80 60
HF-150 212 320 200 127 147 112 130 80 60
HF-200 232.5 302 217 141 197 124 140 100 94

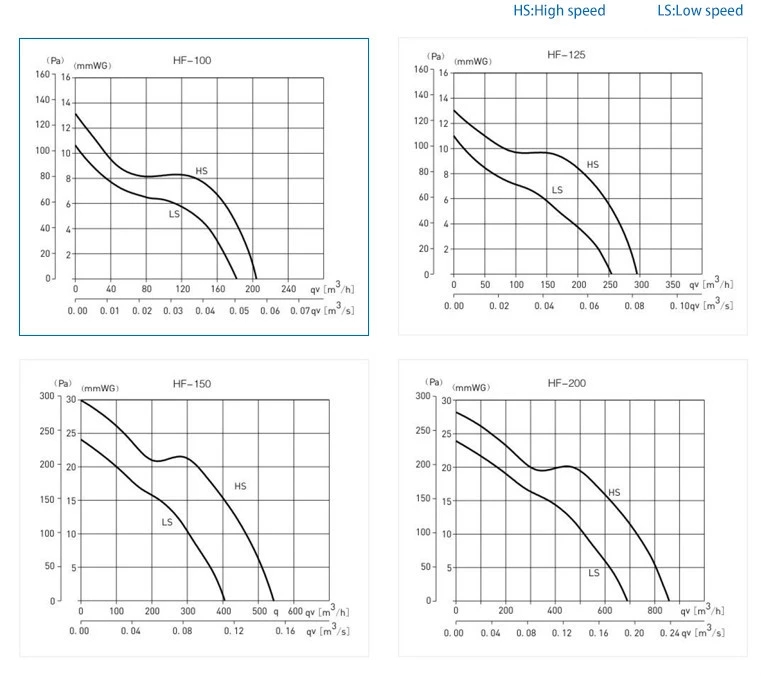

6.Performance Curve
qv: Air volume in m3/h and m3/s.
psf : Static pressure in mmWG and Pa.
Dry air at 20°C and 760mmHg.
Performance data in accordance with ISO 5801 and AMCA 210-99 Standards.
