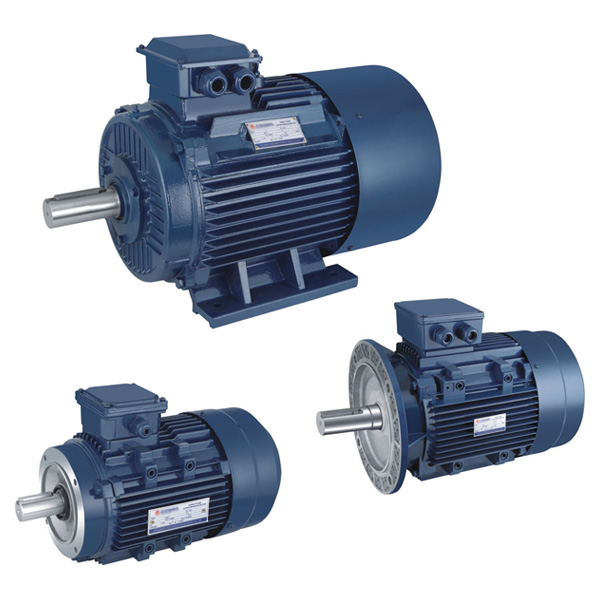

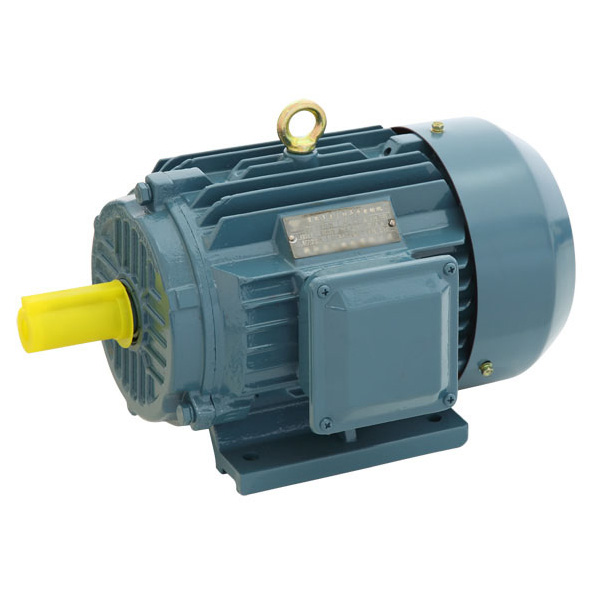

Name: YD SERIES DOUBLE-SPEED THREE PHASE MOTOR
Type: YD
  • PUMP
  • PUMP
Product details

Product Description:
YD series is one of the main derived series of Y series,a national unified designed latest product in  China and a replacement type for the JOD2 series.It can change speed easily.The speed of this series motor can be changed step by step according to the requirements ofload characteristics, there by reaching the aims of economizing on electricity and simplifying the system of speed variation.This series of motor has great starting torque and low noise and vibration,and its mounting dimensions are complied with the standard of the International Electrotechnical Commission(IEC),it has a fairly good interchange ability as compared with the similar products of the same kind so that it is easy to maintain and used widely in the industrial departments of machine tools,chemical industry,textile, metallurgy and mine,etc.

 Motor Features:
1. Frame size:H80-280;
2. Power:0.45-82KW;
3. Voltage:380V;
4. Rated Frequency: 50 Hz ;
5. Poles: 2 / 4 / 6 / 8
6. Speed: 700 -3000 r/min
7. Ambient Temperature: -15°C-40°C
8. Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9. Duty: continuous (S1);
10. Insulation Class:  B;
11. Protection Class:  IP44,IP54;
12. Frame material: aluminum body
13. Cooling Method: ICO141 Standards;
14. Altitude: No more than 1,000 meters above sea level;
15. Packing: 80-112 frame be packaged by carton&pallets
                 132-280 frame be packaged by wooden case;
16. Certifications: CE, CCC, ISO9001: 2008

PERFORMANCE DATAS

Model Output Rated current Rated speed Efficiency
   η 		Power
factor 		Locked-rotor current
Rated current 		Locked-rotor torque
Rated troque 		Pull-out torque
Rated torque
KW IN(A) nN(rmp) (%) (cos Φ) Tst/TN Ist/TN Tmax/TN
YD90L 0.45 1.9 700 58 0.63 1.5 5.5 1.8
0.75 1.92 1420 72 0.87 1.5 6.5 1.8
YD100L 0.85 3.1 700 68 0.63 1.5 5.5 1.8
1.5 3.5 1420 75 0.88 1.5 6.5 1.8
YD112M 1.5 5.0 700 75 0.63 1.5 5.5 1.8
2.4 5.3 1420 78 0.88 1.5 6.5 1.8
YD132S 2.2 7.0 720 75 0.64 1.5 5.5 1.8
3.3 7.1 1440 80 0.88 1.5 6.5 1.8
YD132M 3 9.0 720 78 0.65 1.5 5.5 1.8
4.5 9.4 1440 82 0.88 1.5 6.5 1.8
YD160M 5 13.9 730 83 0.66 1.5 5.5 1.8
7.5 15.2 1450 84 0.89 1.5 6.5 1.8
YD160L 7 19.0 730 85 0.66 1.5 5.5 1.8
11 21.8 1450 86 0.89 1.5 6.5 1.8
YD180L 11 26.0 730 86 0.74 1.5 6 1.8
17 31.5 1470 87 0.92 1.5 7 1.8
YD200L1 14 33.0 740 86 0.74 1.5 6 1.8
22 41.3 1470 88 0.92 1.5 7 1.8
YD200L2 17 40.1 740 87 0.74 1.5 6 1.8
26 48.8 1470 88 0.92 1.5 7 1.8
YD225M 24 53.2 740 89 0.77 1.4 6 1.8
34 66.7 1480 88 0.88 1.3 7 1.8
YD250M 30 64.9 740 90 0.78 1.4 6 1.8
42 78.8 1480 89 0.91 1.3 7 1.8
YD280S 40 83.5 740 91 0.80 1.4 6 1.8
55 102 1480 90 0.91 1.3 7 1.8
YD280M 47 96.9 680 91 0.81 1.4 6 1.8
67 122.9 930 90 0.92 1.3 7 1.8
YD90S 0.35 1.6 680 56 0.60 1.4 6 1.8
0.45 1.4 930 70 0.72 1.3 7 1.8
YD90L 0.45 1.9 710 59 0.60 1.5 5 1.8
0.65 1.9 950 71 0.73 1.5 6 1.8
YD100L 0.75 2.9 710 65 0.60 1.5 5 1.8
1.1 3.1 950 75 0.73 1.5 6 1.8
YD112M 1.3 4.5 710 72 0.61 1.5 5 1.8
1.8 4.8 950 78 0.73 1.5 6 1.8
YD132S 1.8 5.8 730 75 0.62 1.5 5 1.8
2.4 6.2 970 80 0.73 1.5 6 1.8
YD132M 2.6 8.2 730 78 0.62 1.5 5 1.8
3.7 9.4 970 82 0.73 1.5 6 1.8
YD160M 4.5 13.3 930 83 0.62 1.5 5 1.8
6 14.7 980 85 0.73 1.5 6 1.8
YD160L 6 17.5 930 84 0.62 1.5 5 1.8
8 19.4 980 86 0.73 1.5 6 1.8
YD180M 7.5 21.9 930 84 0.62 1.5 5 1.8
10 24.2 980 86 0.73 1.5 6 1.8
YD180L 9 24.8 730 85 0.65 1.5 5 1.8
12 28.3 980 86 0.75 1.5 6 1.8
YD200L1 12 32.5 730 86 0.65 1.5 5 1.8
17 39.1 980 87 0.76 1.5 6 1.8
YD200L2 15 40.3 730 87 0.65 1.5 5 1.8
20 45.4 980 88 0.76 1.5 6 1.8
YD100L 0.75/1.3/1.8 2.62/3.66/4.53 940/1420/2880 67/72/71 0.65/0.75/0.85 1.8/1.6/1.6 5.5/6/7 1.8/1.8/1.8
YD112M 1.1/2/2.4 3.52/5.14/5.80 940/1440/2890 73/74/74 0.65/0.81/0.85 1.7/1.4/1.6 5.5/6/7 1.8/1.8/1.8
YD132S 1.8/2.6/3 5.14/6.10/7.38 940/1440/2900 75/78/71 0.71/0.83/0.87 1.4/1.3/1.7 5.5/6/7 1.8/1.8/1.8
YD132M1 2.2/3.3/4 6.03/7.46/8.79 940/1440/2900 77/80/76 0.72/0.84/0.91 1.3/1.3/1.7 5.5/6/7 1.8/1.8/1.8
YD132M2 2.6/4/5 6.86/9.04/10.8 940/1440/2900 80/80/77 0.72/0.84/0.91 1.5/1.4/1.7 5.5/6/7 1.8/1.8/1.8
YD160M 3.7/5/6 9.52/11.2/13.2 940/1440/2900 81/81/76 0.72/0.84/0.91 1.5/1.3/1.4 5.5/6/7 1.8/1.8/1.8
YD160L 4.5/7/9 11.4/15.1/18.8 970/1490/2930 83/83/79 0.72/0.85/0.92 1.5/1.21.3 5.5/6/7 1.8/1.8/1.8
YD112M 0.65/2/2.4 2.66/5.14/5.80 910/1460/2930 59/74/74 0.63/0.81/0.85 1.4/1.3/1.2 4.5/6/7 1.8/1.8/1.8
YD132S 1/2.6/3 3.16/6.10/7.08 710/1440/2900 69/78/74 0.61/0.83/0.87 1.4/1.2/1.4 4.5/6/7 1.8/1.8/1.8
YD132M 1.3/3.7/4.5 4.56/8.37/10.0 710/1440/2900 71/80/75 0.61/0.84/0.91 1.5/1.3/1.4 4.5/6/7 1.8/1.8/1.8
YD160M 2.2/5/6 7.55/11.2/13.2 710/1440/2900 75/81/76 0.59/0.84/0.91 1.4/1.3/1.4 4.5/6/7 1.8/1.8/1.8
YD160L 2.8/7/9 9.21/15.10/18.80 720/1460/2930 77/83/79 0.60/0.85/0.92 1.3/1.2/1.3 5.5/6.5/7 1.8/1.8/1.8
YD112M 0.85/1/1.5 3.72/3.06/3.53 710/940/1400 62/68/75 0.56/0.73/0.86 1.4/1.2/1.4 5.5/6.5/7 1.8/1.8/1.8
YD132S 1.1/1.5/1.8 4.10/4.22/4.03 710/940/1440 68/74/78 0.60/0.73/0.87 1.4/1.3/1.3 5.5/6.5/7 1.8/1.8/1.8
YD132M1 1.5/2/2.2 5.18/5.41/4.87 710/940/1440 71/77/79 0.62/0.37/0.87 1.3/1.5/1.4 5.5/6.5/7 1.8/1.8/1.8
YD132M2 1.8/2.6/3 6.13/6.84/6.55 710/940/1440 72/78/80 0.62/0.74/0.87 1.5/1.5/1.5 5.5/6.5/7 1.8/1.8/1.8
YD160M 3.3/4/5.5 10.2/9.87/11.6 720/970/1460 79/81/83 0.62/0.76/0.87 1.7/1.4/1.5 5.5/6.5/7 1.8/1.8/1.8
YD160L 4.5/6/7.5 13.8/14.5/15.6 720/970/1460 80/83/84 0.62/0.76/0.87 1.6/1.6/1.5 5.5/6.5/7 1.8/1.8/1.8

Installation structure type
Common installation structure type, and the applicable frame size is shown in the table below
 Frame     Basic installation structure        Derived installation type
B3 B5 B35 V1 V3 V5 V6 B6 B7 B8 V15 V36 B14 B34 V18
63~112 √ √ √ √ √ √ √ √ √ √ √ √ √ √ √
132~160 √ √ √ √ √ √ √ √ √ √ √ √ - - -
180~280 √ √ √ √ - - - - - - - - - - -
Note: "√" indicates the type of structure that can be manufactured

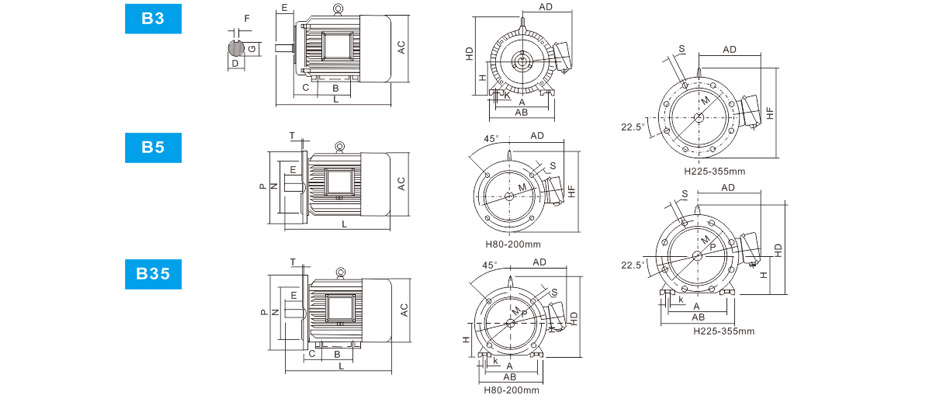

Overall Installation Dimensions


Frame Poles Installation dimensions                                                                            Dimensions
A B C D E F G H M N P R S T K AB AC AD HD L
80M 2.4 125 100 50 19 40 6 15.5 80 165 130 200 0 12 3.5 10 165 175 150 175 290
90S 2.4.6 140 100 56 24 50 8 20 90 165 130 200 0 12 305 10 180 195 160 195 315
90L 2.4.6 140 125 56 24 50 8 20 90 165 130 200 0 12 3.5 10 180 195 160 195 340
100L 2.4.6 160 140 63 28 60 8 24 100 215 180 250 0 15 4 12 205 215 180 245 380
12M 2.4.6 190 140 70 28 80 8 24 112 265 230 300 0 15 4 12 245 240 190 265 400
132S 2.4.6.8 216 140 89 38 80 10 33 132 300 230 300 0 15 4 12 280 275 210 315 475
132M 2.4.6.8 216 178 89 38 110 10 33 132 300 250 350 0 15 4 12 270 275 210 315 515
160M 2.4.6.8 254 210 108 42 110 12 37 160 300 250 350 0 19 5 15 330 335 265 385 605
160L 2.4.6.8 254 154 108 42 110 12 37 160 300 250 350 0 19 5 15 330 335 265 385 650
180M 2.4.6.8 279 241 121 48 110 14 42.5 180 300 250 350 0 19 5 15 355 380 285 430 670
180L 2.4.6.8 279 279 121 48 110 14 42.5 180 300 250 350 0 19 5 15 355 380 285 430 710
200L
225M
225S 		2.4.6.8 318
356
356 		305
311
286 		133
149
149 		55 110 16 49 200
225
225 		350
400
400 		300
350
300 		400
450
450 		0
0
0 		19
19
19 		5
5
5 		19
19
19 		  395
435
435 		420
475
475 		315
345
345 		475
530
530 		775
4.8 60 140 18 53 820
250M 2 406 349 168 55 110 16 49 250 500 450 550 0 19 5 24 490 515 385 575 1000
4.6.8 60 140 18 53
280S 2 457 368 190 60 140 18 53 280 500 450 550 0 19 5 24 550 585 410 640 1050
4.6.8 65 140 18 58
200M 2 457 419 190 65 140 18 58 200 500 450 550 0 19 5 24 550 505 410 640 1240
4.6.8 75 140 20 67.5
315S 2 508 406 216 65 140 18 58 315 600 550 660 0 24 6 28 744 645 576 865 1270
4.6.8 75 140 20 67.5
315M 2 508 457 216 65 140 18 58 315 600 550 660 0 24 6 28 744 645 576 865 1310
4.6.8.10 80 170 22 71
315L 2 508 508 216 65 140 18 58 315 600 550 660 0 24 6 28 744 645 576 865 1340
4.6.8.10 80 170 22 71

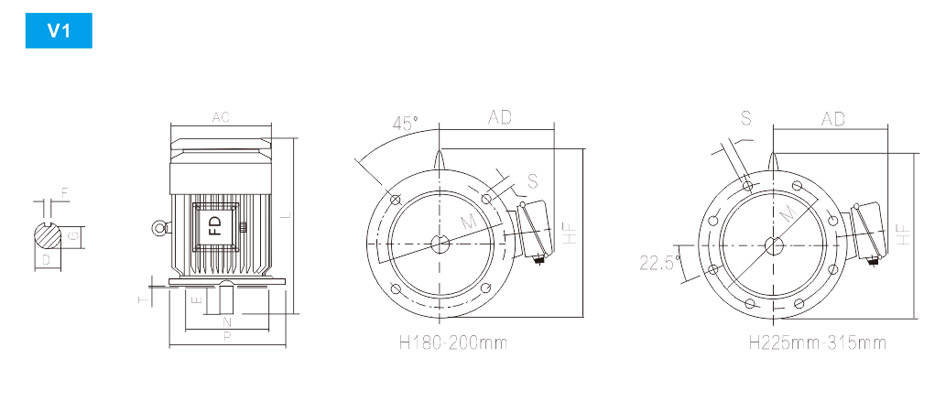

Installation Dimensions

Frame  Pole Installation dimensions                           Dimensions
D E F G M N P R S T Flange holes AC AD HF L
180M 2.4.6.8 48 110 14 42.5 300 250 350 0 19 5 4 380 285 500 730
180L 2.4.6.8 48 110 14 42.5 300 250 350 0 19 5 4 380 285 500 770
200L 2.4.6.8 60 110 16 49 350 300 400 0 19 5 4 420 315 550 850
225S 4.8 55 140 18 53 400 350 450 0 19 5 8 475 345 610 910
225M 2 60 110 16 49 400 350 450 0 19 5 8 475 345 610 935
250M 4.6.8 60 140 18 53 500 450 550 0 19 5 8 515 385 650 1035
2 65 140 18 53
280S 4.6.8 65 140 18 58 500 450 550 0 19 5 8 580 410 720 1120
2 75 140 18 58
280M 4.6.8 65 140 20 67.5 500 450 550 0 19 5 8 580 410 720 1170
2 75 140 18 58 1360
315S 2 65 140 18 58 600 550 660 0 24 6 8 580 410 720 1360
4.6.8.10 80 140 20 67.5 1390
315M 2 65 140 18 58 600 550 660 0 24 6 8 645 576 900 1460
4.6.8.10 80 170 22 71 1490
315L 2 65 140 18 58 600 550 660 0 24 6 8 645 576 900 1460
4.6.8.10 80 170 22 71 1490
