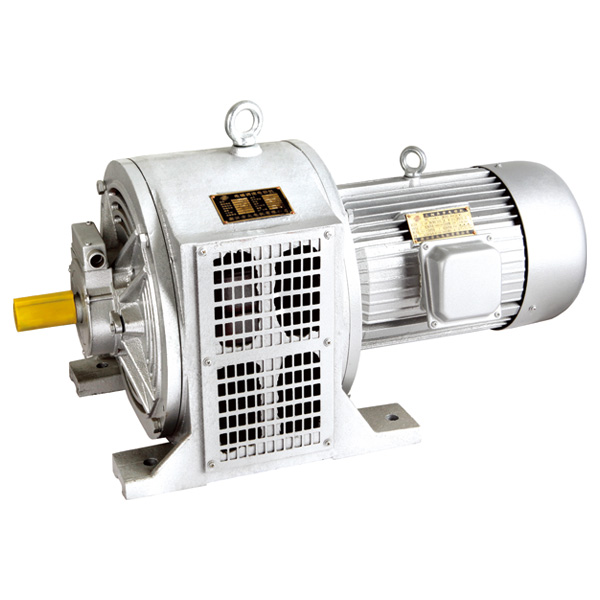

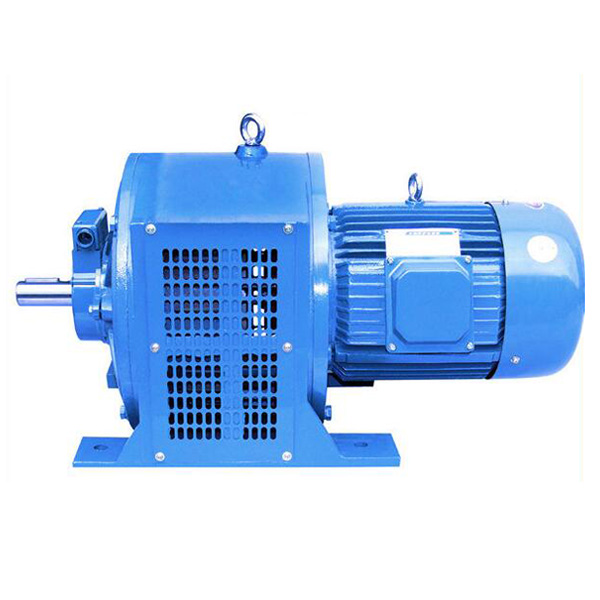

Frame number：112~355   power：0.55~90KW
Working system：S1    Insulation class：B
Protection class：SIP21   Speed ratio：1:10
Applicable to: constant torque stepless speed regulation occasions, especially for fans, pumps and other reduced torque load
Features: constant torque stepless speed regulation, simple structure, easy operation and maintenance, reliable operation
Conditions of use: no more than 1000m above sea level; ambient air temperature changes with the seasons, but the maximum does not exceed 40 ℃. Less dust, no ferromagnetic characteristics of dust, no corrosion of metal damage insulation and explosive gas

Performance data 380V 50Hz

Model	Nominal Power (KW)	Rated torque (NM)	Rated Speed Range
YCT112-4A	0.55	3.6	1230~125
YCT112-4B	0.75	4.9	1230~125
YCT132-4A	1.1	7.1	1230~125
YCT132-4B	1.5	9.7	1230~125
YCT160-4A	2.2	14.1	1230~125
YCT160-4B	3	19.2	1230~125
YCT180-4A	4	25.2	1230~125
YCT200-4A	5.5	36.1	1230~125
YCT200-4B	7.5	47.7	1230~125
YCT225-4A	11	69	1230~125
YCT225-4B	15	94	1250~125
YCT250-4A	18.5	110	1320~132
YCT250-4B	22	137	1320~132
YCT280-4A	30	189	1320~132
YCT315-4A	37	232	1320~132
YCT315-4B	45	282	1320~132
YCT355-4A	55	344	1340~440
YCT355-4B	75	469	1340~440
YCT355-4C	90	564	1340~600

Note: 1. Rate is the rated power of the motor 2. The data in the table are subject to change without notice.

Overall Installation Dimensions

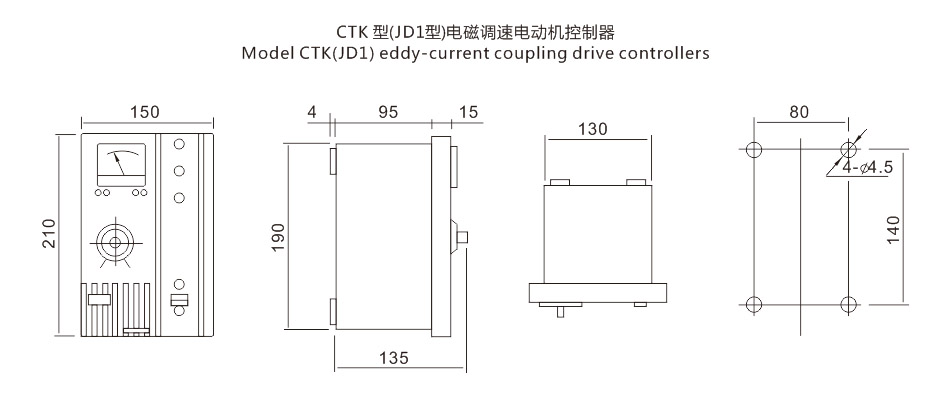

Model		CTK-A30	CTK-A90	CTK-B90
power supply	VoltageV	220±10%
	frequencyHz	50±2%
Rated DC output DC	VoltageV	≥80
	CurrentA	4	6.3	4	63
Controlled motor powerkW		0.55~30	37·90	0.55~30	37~90
Speed change rate%		2.5		1.0
Steady speed accuracy%		≤1
Terminal mark		enter input: 1:Phase line phase terminal 2:Zero line：zero line	Output output: 3+ 4-	Techogenerator 5 6 7

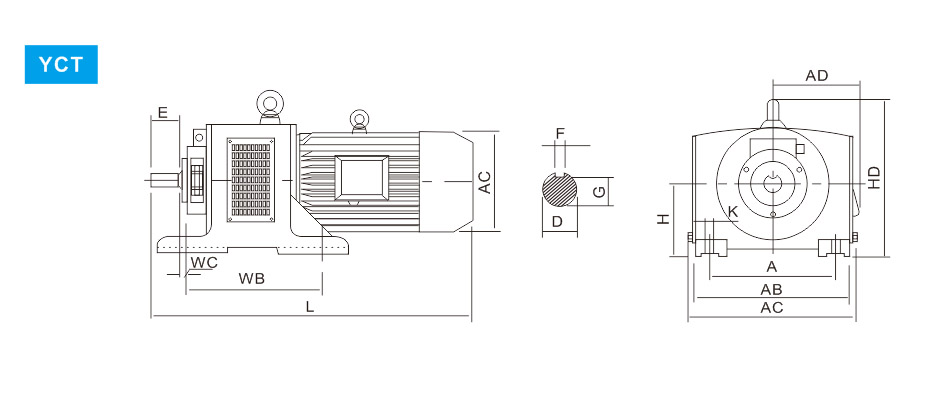

Model	Installation Dimensions									Overall Dimensions
	A	WB	WC	E	E	H	F	G	K	AB	AC	AD	HD	L
YCT112-4A	190	210	40	40	112	19	6	15.5	12	240	260	150	280	520
YCT112-4B	190	210	40	40	112	19	6	15.5	12	240	260	150	280	520
YCT132-4A	216	241	40	50	132	24	8	20	12	285	310	165	330	570
YCT132-4B	216	241	40	50	132	24	8	20	12	285	310	165	330	585
YCT160-4A	254	267	45	60	160	28	8	24	15	330	350	185	385	665
YCT160-4B	254	267	45	60	160	28	8	24	15	330	350	185	385	665
YCT180-4A	379	305	45	60	180	28	8	24	15	365	385	195	430	700
YCT200-4A	318	356	50	80	200	38	10	33	19	410	430	235	485	820
YCT200-4B	318	356	50	80	200	38	10	33	19	410	430	235	485	860
YCT225-4A	356	406	56	110	225	42	12	37	19	465	485	270	545	980
YCT225-4B	356	406	56	110	225	42	12	37	19	465	485	270	545	1025
YCT250-4A	406	457	63	110	250	48	14	42.5	24	520	540	295	595	1130
YCT250-4B	406	457	63	110	250	48	14	42.5	24	520	540	295	595	1170
YCT280-4A	457	508	70	110	280	55	16	49	24	575	595	320	665	1280
YCT315-4A	508	560	89	140	315	60	18	53	28	645	670	345	770	1400
YCT315-4B	508	560	89	140	315	60	18	53	28	645	670	345	770	1425
YCT355-4A	610	630	108	140	355	65	18	58	28	755	780	390	890	1550
YCT355-4B	610	630	108	140	355	75	20	67.5	28	755	780	420	890	1630
YCT355-4C	610	630	108	140	355	75	20	67.5	28	755	780	420	890	1680

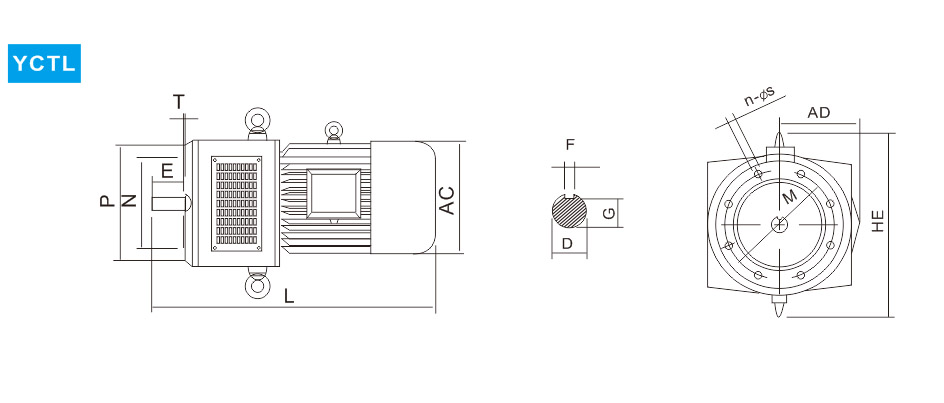

Model	Installation Dimensions										Overall Dimensions
	D	E	F	G	M	N	P	n	s	r	AC/2	AD	HE	L
YCT112-4A	19	40	6	15.5	215	180	250	4	15	4	125	150	333	515
YCT112-4B	19	40	6	15.5	215	180	250	4	15	4	125	150	333	515
YCT132-4A	24	50	8	20	215	180	250	6	15	4	142	155	391	580
YCT132-4B	24	50	8	20	215	180	250	6	15	4	142	155	391	580
YCT160-4A	28	60	8	24	265	230	300	6	15	4	165	185	445	620
YCT160-4B	28	60	8	24	265	230	300	6	15	4	165	185	445	665
YCT180-4A	28	60	8	24	265	230	300	6	15	5	180	190	485	670
YCT200-4A	38	80	10	33	300	250	350	6	19	5	205	210	530	840
YCT200-4B	38	80	10	33	300	250	350	6	19	5	205	210	530	840
YCT225-4A	42	110	12	37	350	300	400	6	19	5	225	255	582	970
YCT225-4B	42	110	12	37	350	300	400	6	19	5	225	255	582	1015
YCT250-4A	48	110	14	42.5	400	350	450	8	19	5	250	285	642	1130
YCT250-4B	48	110	14	42.5	400	350	450	8	19	5	250	285	642	1170
YCT280-4A	55	110	16	49	450	400	500	8	19	5	286	320	740	1270
