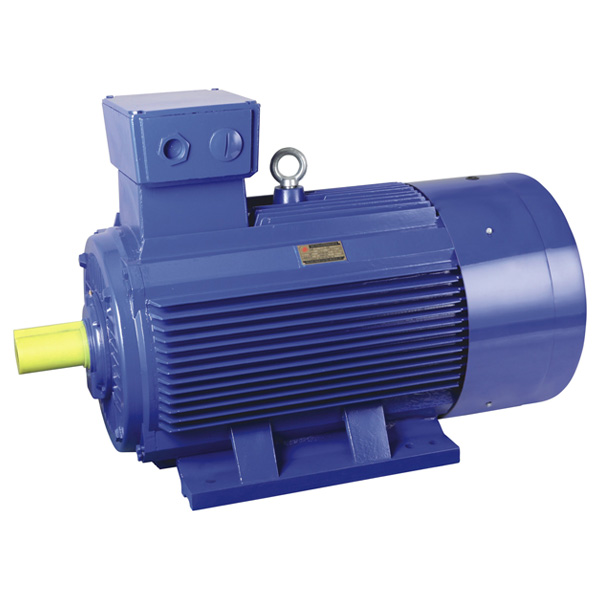

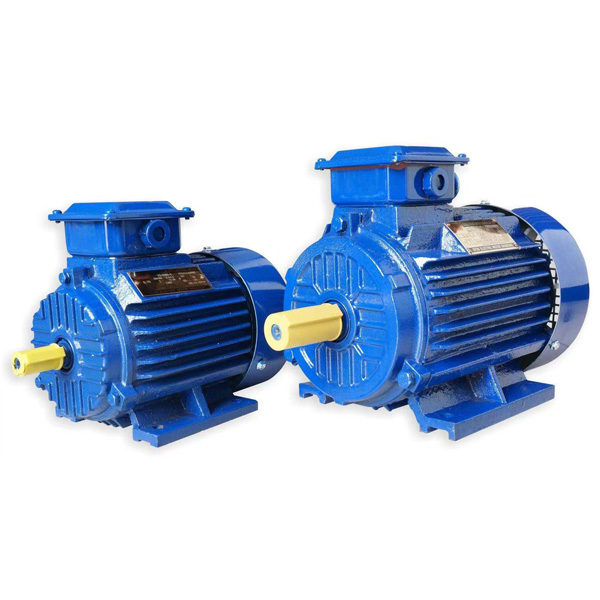

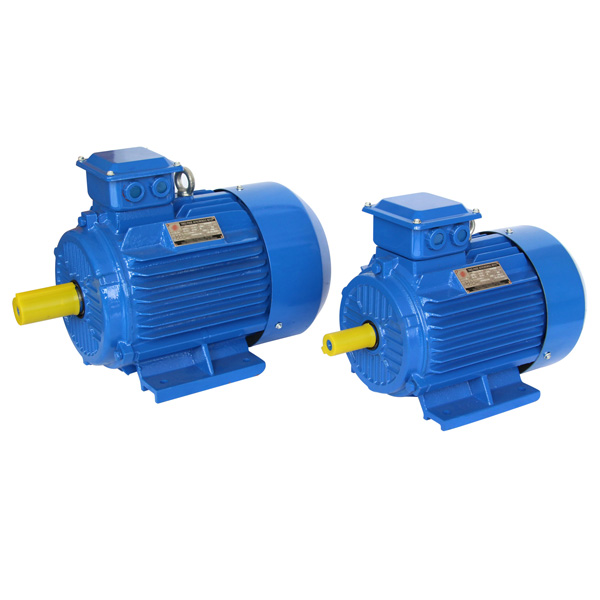

Name: Y2 SERIES THREE PHASE ELECTRIC MOTOR
Type: Y2
Product details
Frame number: 63 ~ 355 Power: 0.12 ~ 315KW
Working system: S1
Applications: General purpose including cutting, machine, pumps, fans, conveyors, Agricultural Machinery and food machinery
Features:Good-looking appearance, High efficiency and energy saving, low noise and little vibration. F insulation class, IP54 or IP55 protection class
OPERATING CONDITIONS:
Ambient temperature: -15senti degree≤ 0≤ 40senti degree
Altitude: Not exceeding 1000 meters
Rated voltage: 380V, 220/380V, 380/660V, 400V, 415V
Rated frequency: 50Hz / 60 Hz
Connection:
Y Start-connection for 3KW and below
Delta-connection for 4KW or more
Duty / Rating: Continuous (S1)
Cooling type: IC411
Technical parameter:
Output
(KW)
|
Type
|
Amps
(A)
|
Speed
(R/min)
|
Eff.
%
|
p.f.
|
RT
N.m
|
Direct on line starting torque ratio
|
Direct on line pull out torque ratio
|
Direct on line starting current ratio
|
Noise LwdB
(A)
|
Weight
(Kg)
|
380V 50HZ 2P
|
0.18
|
Y2-631-2
|
0.5
|
2800
|
65.0
|
0.80
|
0.61
|
2.2
|
2.2
|
5.5
|
61
|
14
|
0.25
|
Y2-632-2
|
0.7
|
2800
|
68.0
|
0.81
|
0.96
|
2.2
|
2.2
|
5.5
|
61
|
14.5
|
0.37
|
Y2-711-2
|
1.0
|
2800
|
70.0
|
0.81
|
1.26
|
2.2
|
2.2
|
6.1
|
64
|
15
|
0.55
|
Y2-712-2
|
1.4
|
2800
|
73.0
|
0.82
|
1.88
|
2.2
|
2.3
|
6.1
|
64
|
15.5
|
0.75
|
Y2-801-2
|
1.8
|
2825
|
75.0
|
0.83
|
2.54
|
2.2
|
2.3
|
6.1
|
67
|
16.5
|
1.1
|
Y2-802-2
|
2.6
|
2825
|
77.0
|
0.84
|
3.72
|
2.2
|
2.3
|
7.0
|
67
|
17.5
|
1.5
|
Y2-90S-2
|
3.4
|
2840
|
79.0
|
0.84
|
5.04
|
2.2
|
2.3
|
7.0
|
72
|
21
|
2.2
|
Y2-90L-2
|
4.9
|
2840
|
81.0
|
0.85
|
7.40
|
2.2
|
2.3
|
7.0
|
72
|
25
|
3
|
Y2-100L-2
|
6.3
|
2880
|
83.0
|
0.87
|
9.95
|
2.2
|
2.3
|
7.5
|
76
|
33
|
4
|
Y2-112M-2
|
8.1
|
2890
|
85.0
|
0.88
|
13.22
|
2.2
|
2.3
|
7.5
|
77
|
41
|
5.5
|
Y2-132S1-2
|
11.0
|
2900
|
86.0
|
0.88
|
18.11
|
2.2
|
2.3
|
7.5
|
80
|
63
|
7.5
|
Y2-132S2-2
|
14.9
|
2900
|
87.0
|
0.88
|
24.70
|
2.2
|
2.3
|
7.5
|
80
|
70
|
11
|
Y2-160M1-2
|
21.3
|
2930
|
88.0
|
0.89
|
35.85
|
2.2
|
2.3
|
7.5
|
86
|
110
|
15
|
Y2-160M2-2
|
28.8
|
2930
|
89.0
|
0.89
|
48.89
|
2.2
|
2.3
|
7.5
|
86
|
120
|
18.5
|
Y2-160L-2
|
34.7
|
2930
|
90.5
|
0.90
|
60.30
|
2.2
|
2.3
|
7.5
|
86
|
135
|
22
|
Y2-180M-2
|
41.0
|
2940
|
91.2
|
0.90
|
71.46
|
2.0
|
2.3
|
7.5
|
89
|
165
|
30
|
Y2-200L1-2
|
55.5
|
2950
|
92.0
|
0.90
|
97.12
|
2.0
|
2.3
|
7.5
|
92
|
218
|
37
|
Y2-200L2-2
|
67.9
|
2950
|
92.3
|
0.90
|
119.78
|
2.0
|
2.3
|
7.5
|
92
|
230
|
45
|
Y2-225M-2
|
82.3
|
2970
|
92.3
|
0.90
|
144.70
|
2.0
|
2.3
|
7.5
|
92
|
280
|
55
|
Y2-250M-2
|
100.4
|
2970
|
92.5
|
0.90
|
176.85
|
2.0
|
2.3
|
7.5
|
93
|
365
|
75
|
Y2-280S-2
|
134.4
|
2970
|
93.2
|
0.91
|
241.16
|
2.0
|
2.3
|
7.5
|
94
|
495
|
90
|
Y2-280M-2
|
160.2
|
2970
|
93.8
|
0.91
|
289.39
|
2.0
|
2.3
|
7.5
|
94
|
565
|
110
|
Y2-315S-2
|
195.4
|
2980
|
94.0
|
0.91
|
352.51
|
1.8
|
2.2
|
7.1
|
96
|
890
|
132
|
Y2-315M-2
|
233.2
|
2980
|
94.5
|
0.91
|
423.02
|
1.8
|
2.2
|
7.1
|
96
|
980
|
160
|
Y2-315L1-2
|
279.3
|
2980
|
94.6
|
0.92
|
512.75
|
1.8
|
2.2
|
7.1
|
99
|
1055
|
200
|
Y2-315L2-2
|
348.4
|
2980
|
94.8
|
0.92
|
640.94
|
1.8
|
2.2
|
7.1
|
99
|
1110
|
250
|
Y2-355M-2
|
433.2
|
2985
|
95.3
|
0.92
|
799.83
|
1.6
|
2.2
|
7.1
|
103
|
1900
|
315
|
Y2-355L-2
|
544.2
|
2985
|
95.6
|
0.92
|
1007.79
|
1.6
|
2.2
|
7.1
|
103
|
2300
|
380V 50HZ 4P
|
0.12
|
Y2-631-4
|
0.4
|
1400
|
57.0
|
0.72
|
0.82
|
2.1
|
2.2
|
4.4
|
52
|
13
|
0.18
|
Y2-632-4
|
0.6
|
1400
|
60.0
|
0.73
|
1.23
|
2.1
|
2.2
|
4.4
|
52
|
13.5
|
0.25
|
Y2-711-4
|
0.8
|
1400
|
65.0
|
0.74
|
1.71
|
2.1
|
2.2
|
5.2
|
55
|
14
|
0.37
|
Y2-712-4
|
1.1
|
1400
|
67.0
|
0.75
|
2.54
|
2.1
|
2.2
|
5.2
|
55
|
14.5
|
0.55
|
Y2-801-4
|
1.6
|
1390
|
71.0
|
0.75
|
3.78
|
2.4
|
2.3
|
5.2
|
58
|
15
|
0.75
|
Y2-802-4
|
2.0
|
1490
|
73.0
|
0.77
|
5.15
|
2.4
|
2.3
|
6.0
|
58
|
16
|
1.1
|
Y2-90S-4
|
2.0
|
1400
|
75.0
|
0.77
|
7.50
|
2.3
|
2.3
|
6.0
|
61
|
23
|
1.5
|
Y2-90L-4
|
3.7
|
1420
|
78.0
|
0.79
|
10.23
|
2.3
|
2.3
|
6.0
|
61
|
25
|
2.2
|
Y2-100L1-4
|
5.2
|
1420
|
80.0
|
0.81
|
14.80
|
2.3
|
2.3
|
7.0
|
64
|
33
|
3.
|
Y2-100L2-4
|
6.8
|
1420
|
82.0
|
0.82
|
20.18
|
2.3
|
2.3
|
7.0
|
64
|
35
|
4.
|
Y2-112M-4
|
8.8
|
1440
|
84.0
|
0.82
|
26.53
|
2.3
|
2.3
|
7.0
|
65
|
41
|
5.5
|
Y2-132S-4
|
11.8
|
1440
|
85.0
|
0.83
|
36.48
|
2.3
|
2.3
|
7.0
|
71
|
65
|
7.5
|
Y2-132M-S
|
15.6
|
1440
|
87.0
|
0.84
|
49.74
|
2.2
|
2.3
|
7.0
|
71
|
76
|
11
|
Y2-160M-4
|
22.3
|
1460
|
88.0
|
0.85
|
71.59
|
2.2
|
2.3
|
7.0
|
75
|
118
|
15
|
Y2-160L-4
|
30.1
|
1460
|
89.0
|
0.85
|
98.12
|
2.2
|
2.3
|
7.5
|
75
|
132
|
18.5
|
Y2-180M-4
|
36.5
|
1470
|
90.5
|
0.85
|
120.19
|
2.2
|
2.3
|
7.5
|
76
|
164
|
22
|
Y2-1180L-4
|
43.2
|
1470
|
91.0
|
0.85
|
142.93
|
2.2
|
2.3
|
7.5
|
76
|
182
|
30
|
Y2-200L-4
|
57.6
|
1480
|
92.0
|
0.86
|
193.68
|
2.2
|
2.3
|
7.2
|
79
|
245
|
37
|
Y2-225S-4
|
69.9
|
1480
|
92.5
|
0.87
|
238.87
|
2.2
|
2.3
|
7.2
|
81
|
258
|
45
|
Y2-225M-4
|
84.7
|
1480
|
92.8
|
0.87
|
290.37
|
2.2
|
2.3
|
7.2
|
81
|
290
|
55
|
Y2-250M-4
|
103.3
|
1480
|
93.0
|
0.87
|
354.90
|
2.2
|
2.3
|
7.2
|
83
|
388
|
75
|
Y2-280S-4
|
139.6
|
1480
|
93.8
|
0.87
|
483.95
|
2.2
|
2.3
|
7.2
|
86
|
510
|
90
|
Y2-280M-4
|
166.9
|
1485
|
94.2
|
0.87
|
578.79
|
2.2
|
2.3
|
7.2
|
86
|
606
|
110
|
Y2-315S-4
|
201.0
|
1485
|
94.5
|
0.88
|
707.41
|
2.1
|
2.2
|
6.9
|
93
|
910
|
132
|
Y2-315M-4
|
240.4
|
1485
|
94.8
|
0.88
|
848.89
|
2.1
|
2.2
|
6.9
|
93
|
1000
|
160
|
Y2-315L1-4
|
287.8
|
1485
|
94.9
|
0.89
|
1028.96
|
2.1
|
2.2
|
6.9
|
97
|
1055
|
200
|
Y2-315L2-4
|
359.4
|
1485
|
95.0
|
0.89
|
1286.20
|
2.1
|
2.2
|
6.9
|
97
|
1128
|
250
|
Y2-355M-4
|
442.9
|
1490
|
95.3
|
0.90
|
1602.35
|
2.1
|
2.2
|
6.9
|
101
|
1700
|
315
|
Y2-355L-4
|
556.2
|
1490
|
95.6
|
0.90
|
2018.96
|
2.1
|
2.2
|
6.9
|
101
|
1900
|
380V 50HZ 6P
|
0.18
|
Y2-711-6
|
0.8
|
900
|
56.0
|
0.60
|
1.91
|
1.9
|
2.0
|
4.0
|
52
|
14
|
0.25
|
Y2-711-6
|
0.9
|
900
|
59.0
|
0.68
|
2.65
|
1.9
|
2.0
|
4.0
|
52
|
14.5
|
0.37
|
Y2-801-6
|
1.3
|
900
|
62.0
|
0.70
|
3.93
|
1.9
|
2.0
|
4.7
|
54
|
15
|
0.55
|
Y2-802-6
|
1.8
|
900
|
65.0
|
0.72
|
5.84
|
1.9
|
2.1
|
4.7
|
54
|
16
|
0.75
|
Y2-90S-6
|
2.3
|
910
|
69.0
|
0.72
|
7.87
|
2.0
|
2.1
|
5.5
|
57
|
19
|
1.1
|
Y2-90L-6
|
3.2
|
910
|
72.0
|
0.73
|
11.54
|
2.0
|
2.1
|
5.5
|
57
|
22
|
1.5
|
Y2-100L-6
|
3.9
|
940
|
76.0
|
0.76
|
15.24
|
2.0
|
2.1
|
5.5
|
61
|
32
|
2.2
|
Y2-112M-6
|
5.6
|
940
|
79.0
|
0.76
|
22.35
|
2.1
|
2.1
|
6.5
|
65
|
41
|
3
|
Y2-132S-6
|
7.4
|
960
|
81.0
|
0.76
|
29.84
|
2.1
|
2.1
|
6.5
|
69
|
63
|
4
|
Y2-132M1-6
|
9.9
|
960
|
82.0
|
0.76
|
39.79
|
2.1
|
2.1
|
6.5
|
69
|
72
|
5.5
|
Y2-132M-6
|
12.9
|
960
|
84.0
|
0.77
|
54.71
|
2.1
|
2.1
|
6.5
|
69
|
81
|
7.5
|
Y2-160M-6
|
16.9
|
970
|
86.0
|
0.78
|
73.84
|
2.0
|
2.1
|
6.5
|
73
|
118
|
11
|
Y2-160L-6
|
24.2
|
970
|
87.5
|
0.79
|
108.30
|
2.0
|
2.1
|
6.5
|
73
|
145
|
15
|
Y2-180L-6
|
31.6
|
970
|
89.0
|
0.81
|
147.68
|
2.1
|
2.1
|
7.0
|
73
|
178
|
18.5
|
Y2-200L1-6
|
38.6
|
970
|
90.0
|
0.81
|
182.14
|
2.1
|
2.1
|
7.0
|
76
|
200
|
22
|
Y2-200L2-6
|
44.7
|
970
|
90.0
|
0.83
|
216.60
|
2.1
|
2.1
|
7.0
|
76
|
228
|
30
|
Y2-225M-6
|
59.3
|
980
|
91.5
|
0.84
|
292.35
|
2.0
|
2.1
|
7.0
|
76
|
265
|
37
|
Y2-250M-6
|
71.1
|
980
|
92.0
|
0.86
|
360.56
|
2.1
|
2.1
|
7.0
|
78
|
370
|
45
|
Y2-280S-6
|
85.9
|
980
|
92.5
|
0.86
|
438.52
|
2.1
|
2.0
|
7.0
|
80
|
490
|
55
|
Y2-280M-6
|
104.7
|
980
|
92.8
|
0.86
|
535.97
|
2.1
|
2.0
|
7.0
|
80
|
540
|
75
|
Y2-315S-6
|
141.7
|
980
|
93.5
|
0.86
|
730.87
|
2.0
|
2.0
|
7.0
|
85
|
900
|
90
|
Y2-315M-6
|
169.5
|
985
|
93.8
|
0.86
|
872.59
|
2.0
|
2.0
|
7.0
|
85
|
980
|
110
|
Y2-315L1-6
|
206.7
|
985
|
94.0
|
0.86
|
1066.50
|
2.0
|
2.0
|
6.7
|
85
|
1045
|
132
|
Y2-315L2-6
|
244.7
|
985
|
94.2
|
0.87
|
1279.80
|
2.0
|
2.0
|
6.7
|
85
|
1100
|
160
|
Y2-355M1-6
|
292.3
|
990
|
94.5
|
0.88
|
1543.43
|
1.9
|
2.0
|
6.7
|
92
|
1440
|
200
|
Y2-355M2-6
|
364.6
|
990
|
94.7
|
0.88
|
1929.29
|
1.9
|
2.0
|
6.7
|
92
|
1600
|
250
|
Y2-355L-6
|
454.8
|
990
|
94.9
|
0.88
|
2411.62
|
1.9
|
2.0
|
6.7
|
92
|
1700
|
INSTALLATION DIMENSION
Frame with feet and end-shield with flange(IM B35)
|
FRAME
|
POLES
|
A
|
A/2
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
S
|
T
|
FLANGE HOLES
|
AB
|
AC
|
AD
|
HD
|
L
|
DH*
|
SIZE
|
80M
|
2 4 6 8
|
125
|
62.5
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
165
|
130
|
200
|
12
|
3.5
|
4
|
160
|
155
|
145
|
214
|
289
|
M6X16
|
90S
|
2 4 6 8
|
140
|
70
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
12
|
3.5
|
4
|
176
|
175
|
155
|
255
|
324
|
M8x19
|
90L
|
2 4 6 8
|
140
|
70
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
12
|
3.5
|
4
|
176
|
175
|
155
|
255
|
346
|
M8x19
|
100L
|
2 4 6 8
|
160
|
80
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
215
|
180
|
250
|
15
|
4
|
4
|
200
|
195
|
180
|
264
|
375
|
M10X22
|
112M
|
2 4 6 8
|
190
|
95
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
215
|
180
|
250
|
15
|
4
|
4
|
230
|
220
|
190
|
313
|
403
|
M10X22
|
132S
|
2 4 6 8
|
216
|
108
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
15
|
4
|
4
|
262
|
258
|
210
|
338
|
465
|
M12x28
|
132M
|
2 4 6 8
|
216
|
108
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
15
|
4
|
4
|
262
|
258
|
210
|
338
|
504
|
M12X28
|
160M
|
2 4 6 8
|
254
|
127
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
19
|
5
|
4
|
314
|
315
|
255
|
416
|
613
|
M16x36
|
160L
|
2 4 6 8
|
254
|
127
|
254
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
19
|
5
|
4
|
314
|
315
|
255
|
416
|
658
|
M16x36
|
180M
|
2 4 6 8
|
279
|
139.5
|
241
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
19
|
5
|
4
|
349
|
355
|
280
|
451
|
698
|
M16x36
|
180L
|
2 4 6 8
|
279
|
139.5
|
279
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
19
|
5
|
4
|
349
|
355
|
280
|
451
|
734
|
M16x36
|
200L
|
2 4 6 8
|
318
|
159
|
305
|
133
|
55
|
110
|
16
|
49
|
200
|
19
|
350
|
300
|
400
|
19
|
5
|
4
|
388
|
397
|
305
|
505
|
776
|
M20x42
|
225S
|
4 8
|
356
|
178
|
286
|
149
|
60
|
140
|
18
|
53
|
225
|
19
|
400
|
350
|
450
|
19
|
5
|
8
|
431
|
445
|
335
|
550
|
810
|
M20x42
|
225M
|
2
|
356
|
178
|
311
|
149
|
55
|
110
|
16
|
49
|
225
|
19
|
400
|
350
|
450
|
19
|
5
|
8
|
431
|
445
|
335
|
550
|
809
|
M20X42
|
225M
|
4 6 8
|
356
|
178
|
311
|
149
|
60
|
140
|
18
|
53
|
225
|
19
|
400
|
450
|
550
|
19
|
5
|
8
|
431
|
445
|
335
|
550
|
839
|
M20x42
|
250M
|
2
|
406
|
203
|
349
|
168
|
60
|
140
|
18
|
53
|
250
|
24
|
500
|
450
|
550
|
19
|
5
|
8
|
484
|
484
|
370
|
613
|
925
|
M20x42
|
250M
|
4 6 8
|
406
|
203
|
349
|
168
|
65
|
140
|
18
|
58
|
250
|
24
|
500
|
450
|
550
|
19
|
5
|
8
|
484
|
484
|
370
|
613
|
925
|
M20x42
|
280S
|
2
|
457
|
228.5
|
368
|
190
|
65
|
140
|
18
|
58
|
280
|
24
|
500
|
450
|
550
|
19
|
5
|
8
|
542
|
546
|
410
|
670
|
991
|
M20X42
|
280S
|
4 6 8
|
457
|
228.5
|
368
|
190
|
75
|
140
|
20
|
67.5
|
280
|
24
|
500
|
450
|
550
|
19
|
5
|
8
|
542
|
546
|
410
|
670
|
991
|
M20X42
|
280M
|
2
|
457
|
228.5
|
419
|
190
|
65
|
140
|
18
|
58
|
280
|
24
|
500
|
450
|
550
|
19
|
5
|
8
|
542
|
546
|
410
|
670
|
1046
|
M20X42
|
280M
|
4 6 8
|
457
|
228.5
|
419
|
190
|
75
|
140
|
20
|
67.5
|
280
|
24
|
500
|
450
|
550
|
19
|
5
|
8
|
542
|
546
|
410
|
670
|
1046
|
M20X42
|
315S
|
2
|
508
|
254
|
406
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
8
|
628
|
620
|
530
|
855
|
1185
|
M20x42
|
315S
|
4 6 8 10
|
508
|
254
|
406
|
216
|
80
|
170
|
22
|
71
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
8
|
628
|
620
|
530
|
855
|
1220
|
M20x42
|
315M
|
2
|
508
|
254
|
457
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
8
|
628
|
620
|
530
|
855
|
1290
|
M20X42
|
315M
|
4 6 8 10
|
508
|
254
|
457
|
216
|
80
|
170
|
22
|
71
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
8
|
628
|
620
|
530
|
855
|
1325
|
M20X42
|
315L
|
2
|
508
|
254
|
508
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
8
|
628
|
620
|
530
|
855
|
1290
|
M20X42
|
315L
|
4 6 8 10
|
508
|
254
|
508
|
216
|
80
|
170
|
22
|
71
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
8
|
628
|
620
|
530
|
855
|
1325
|
M20X42
|
355M
|
2
|
610
|
305
|
560
|
254
|
75
|
140
|
20
|
67.5
|
355
|
28
|
740
|
680
|
800
|
24
|
6
|
8
|
726
|
700
|
655
|
1002
|
1484
|
M20X42
|
355M
|
4 6 8 10
|
610
|
305
|
560
|
254
|
95
|
170
|
25
|
86
|
355
|
28
|
740
|
680
|
800
|
24
|
6
|
8
|
726
|
700
|
655
|
1002
|
1514
|
M20x42
|
355L
|
2
|
610
|
305
|
630
|
254
|
75
|
140
|
20
|
67.5
|
355
|
28
|
740
|
680
|
800
|
24
|
6
|
8
|
726
|
700
|
655
|
1002
|
1484
|
M20x42
|
355L
|
4 6 8 10
|
610
|
305
|
630
|
254
|
95
|
170
|
25
|
86
|
355
|
28
|
740
|
680
|
800
|
24
|
6
|
8
|
726
|
700
|
655
|
1002
|
1514
|
M20x42
|
BEARING SIZE
Bearing Size
|
Frame Size
|
Poles
|
Drive End
|
Non-Drive End
|
International type
|
Internationat type
|
56
|
2-4
|
62012RZ
|
62012RZ
|
63
|
2-4
|
62012RZ
|
62012RZ
|
71
|
2-6
|
62022RZ
|
62022RZ
|
80
|
2-8
|
62042RZ
|
62042RZ
|
90
|
2-8
|
62052RZ
|
62052RZ
|
100
|
2-8
|
62062RZ
|
62062RZ
|
112
|
2-8
|
63062RZ
|
63062RZ
|
132
|
2-8
|
63082RZ
|
63082RZ
|
160
|
2-8
|
63092RZC3
|
63092RZC3
|
180
|
2-8
|
6311C3
|
6311C3
|
200
|
2-8
|
6312C3
|
6312C3
|
225
|
2-8
|
6313C3
|
6313C3
|
250
|
2-8
|
6314C3
|
6314C3
|
280
|
2
|
6314C3
|
6314C3
|
4-8
|
6317C3
|
6317C3
|
315
|
2
|
6317C3
|
6317C3
|
4-10
|
NU319C3
|
6319C3
|
355
|
2
|
6319C3
|
6319C3
|
4-10
|
NU322C3
|
6322C3
|
400
|
4-10
|
NU326C3
|
6326C3
|
MAIN DATAS FOR TERMINAL BOX
Main data for terminal box
|
Classified number
|
Frame size
|
Max.F.Amps
|
Entery hole size
|
International standard
|
1
|
H80
|
2.6
|
2×M20×15
|
2
|
H90-100
|
6.8
|
2×M25×1.5
|
3
|
H112-132
|
15.4
|
2×M35×1.5
|
4
|
H160-180
|
42.5
|
2×M40×1.5
|
5
|
H200-225
|
84.2
|
2×M50×1.5
|
6
|
H250-280
|
166.6
|
2×M63×1.5
|
7
|
H315
|
358
|
2×M63×1.5
|
8
|
H355
|
546
|
2×M63×1.5
|
9
|
H400
|
600
|
3×M63×1.5
|
