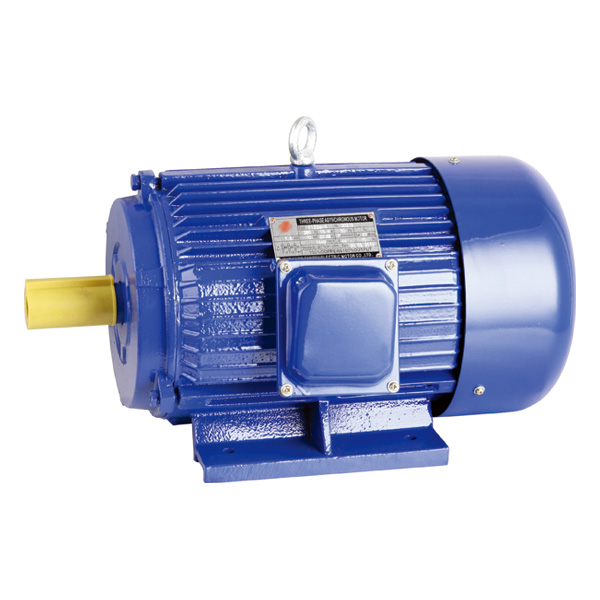

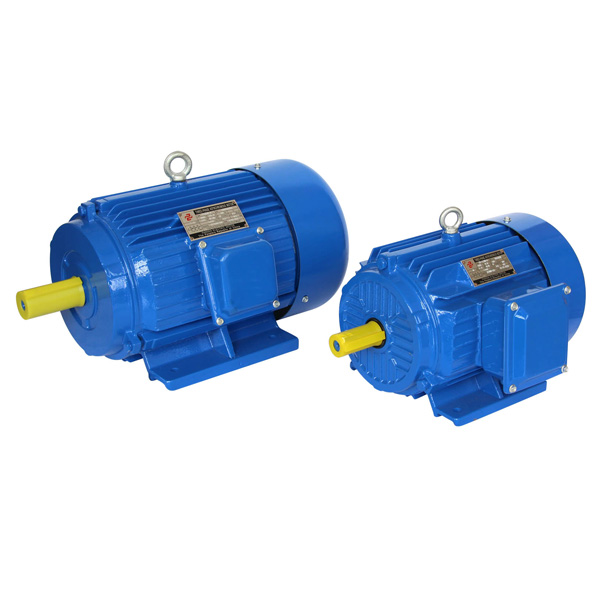

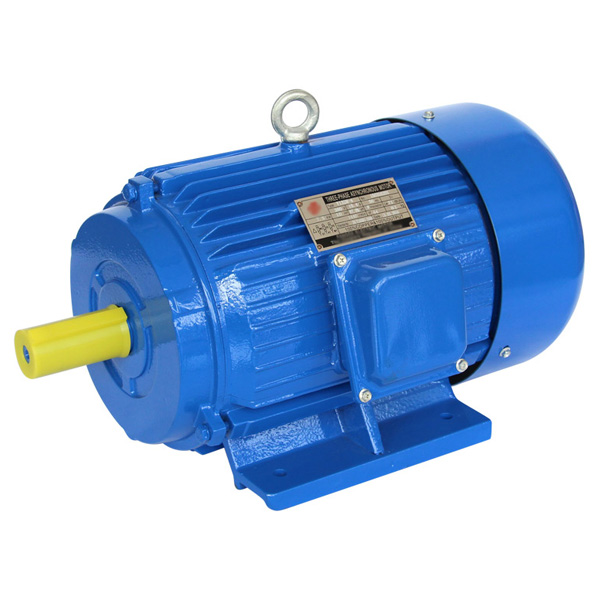

Name: Y Series Three - Phase Asynchronous Motor
Type: Y
  • PUMP
  • PUMP
  • PUMP
Product details
Frame: 80 ~ 315     Power: 0.55 ~ 250KW
Working system: S1  Insulation class: B
Motor Housing :Cast Iron
Applicable to: all places and no special requirements of machinery, such as metal cutting machine tools, pumps, fans, transport machinery, mixers, agricultural machinery, food machinery.
Features: Insulation class for the B-class, enclosure protection class IP44.
Conditions of use: no more than 1000M above sea level. Ambient temperature changes with the seasons, but the maximum does not exceed +40 ℃, the minimum not less than -15 ℃.

Performance data
model power Rated current Rotating speed effectiveness Power factor Stall torque
Rated torque
Stall current
Rated current
Maximum torque
Rated torque
Synchronous speed3000r/min
Y80M1-2 0.75 1.8 2825 75.0 0.84 2.2 6.5 2.3
Y80M2-2 1.1 2.5 2825 77.0 0.86 2.2 7.0 2.3
Y90S-2 1.5 3.4 2840 78.0 0.85 2.2 7.0 2.3
Y90L-2 2.2 4.8 2840 80.5 0.86 2.2 7.0 2.3
Y100L-2 3 6.4 2880 82.5 0.87 2.2 7.0 2.3
Y112M-2 4 8.2 2890 85.5 0.87 2.2 7.0 2.3
Y132S1-2 5.5 11.1 2900 85.5 0.88 2.0 7.0 2.3
Y132S2-2 7.5 15.0 2900 86.2 0.88 2.0 7.0 2.3
Y160M1-2 11 21.8 2930 87.2 0.88 2.0 7.0 2.3
Y160M2-2 15 29.4 2930 88.2 0.88 2.0 7.0 2.3
Y160L-2 18.5 35.5 2930 89.0 0.89 2.0 7.0 2.2
Y180M-2 22 42.2 2940 89.0 0.89 2.0 7.0 2.2
Y200L1-2 30 56.9 2950 90.0 0.89 2.0 7.0 2.2
Y200L2-2 37 69.8 2950 90.0 0.89 2.0 7.0 2.2
Y225M-2 45 84.0 2960 90.5 0.89 2.0 7.0 2.2
Y250M-2 55 103 2960 91.5 0.89 2.0 7.0 2.2
Y280S-2 75 139 2970 92.0 0.89 2.0 7.0 2.2
Y280M-2 90 166 2970 92.5 0.89 2.0 7.0 2.2
Y315S-2 110 203 2980 92.5 0.89 1.8 6.8 2.2
Y315M-2 132 242 2980 93.0 0.89 1.8 6.8 2.2
Y315L1-2 160 292 2980 93.5 0.89 1.8 6.8 2.2
Y315L2-2 200 365 2980 93.5 0.89 1.8 6.8 2.2
Synchronous speed1500r/min
Y80M1-4 0.55 1.5 1390 73.0 0.76 2.4 6.0 2.3
Y80M2-4 0.75 2.0 1390 74.5 0.76 2.3 6.5 2.3
Y90S-4 1.1 2.7 1400 78.0 0.78 2.3 6.5 2.3
Y90L-4 1.5 3.7 1400 19.0 0.79 2.3 7.0 2.3
Y100L1-4 2.2 5.0 1420 81.0 0.82 2.2 7.0 2.3
Y100L2-4 3 6.8 1420 82.5 0.81 2.2 7.0 2.3
Y112M-4 4 6.8 1440 84.5 0.82 2.2 7.0 2.3
Y132S-4 5.5 11.6 1440 85.5 0.84 2.2 7.0 2.3
Y132M-4 7.5 15.4 1440 87.0 0.85 2.2 7.0 2.3
Y160M-4 11 22.6 1460 88.0 0.84 2.2 7.0 2.3
Y160L-4 15 30.3 1460 88.5 0.85 2.2 7.0 2.3
Y180M-4 18.5 35.9 1470 91.0 0.86 2.0 7.0 2.2
Y180L-4 22 42.5 1470 91.5 0.86 2.0 7.0 2.2
Y200L-4 30 56.8 1470 92.2 0.87 2.0 7.0 2.2
Y225D-4 37 70.4 1480 91.8 0.87 1.9 7.0 2.2
Y225M-4 45 84.2 1480 92.3 0.88 1.9 7.0 2.2
Y250M-4 55 103 1480 92.6 0.88 2.0 7.0 2.2
Y280S-4 75 140 1485 92.7 0.88 1.9 7.0 2.2
Y280M-4 90 164 1485 93.5 0.89 1.9 7.0 2.2
Y315S-4 110 201 1485 93.5 0.89 1.8 6.8 2.2
Synchronous speed 1000r/min
Y315M-4 132 240 1485 94.0 0.89 1.8 6.8 2.2
Y315L1-4 160 289 1485 94.5 0.89 1.8 6.8 2.2
Y315L2-4 200 361 1485 94.5 0.89 1.8 6.8 2.2
Y90S-6 0.75 2.2 910 72.5 0.70 2.0 5.5 2.2
Y90L-6 1.1 3.2 910 73.5 0.72 2.0 5.5 2.2
Y100L-6 1.5 4.0 940 77.5 0.74 2.0 6.0 2.2
Y112M-6 2.2 5.6 940 80.5 0.74 2.0 6.0 2.2
Y132S-6 3 7.2 960 83.0 0.76 2.0 6.5 2.2
Y132M1-6 4 9.4 960 84.0 0.77 2.0 6.5 2.2
Y132M2-6 5.5 12.6 960 85.3 0.78 2.0 6.5 2.2
Y160M-6 7.5 17.0 970 86.0 0.78 2.0 6.5 2.0
Y160L-6 11 24.6 970 87.0 0.78 2.0 6.5 2.0
Y180L-6 15 31.4 970 89.5 0.81 1.8 6.5 2.0
Y200L1-6 18.8 37.7 980 89.8 0.83 1.8 6.5 2.0
Y200L2-6 22 44.6 980 90.2 0.83 1.8 6.5 2.0
Y225M-6 30 59.5 980 90.2 0.85 1.7 6.5 2.0
Y250M-6 37 72.0 980 90.8 0.86 1.8 6.5 2.0
Y280S-6 45 85.4 985 92.0 0.87 1.8 6.5 2.0
Y280M-6 55 104 985 92.0 0.87 1.8 6.5 2.0
Y315S-6 75 141 990 92.8 0.87 1.6 6.5 2.0
Y315M-6 90 169 990 93.2 0.87 1.6 6.5 2.0
Y315L1-6 110 205 990 93.5 0.87 1.6 6.5 2.0
Y315L2-6 132 246 990 93.5 0.87 1.6 6.5 2.0
Synchronous speed 750r/min
Y132S-8 2.2 5.8 710 80.6 0.71 2.0 5.5 2.0
Y132M-8 3 7.7 710 82.0 0.72 2.0 5.5 2.0
Y160M1-8 4 9.9 720 84.0 0.73 2.0 6.0 2.0
Y160M2-8 5.5 13.3 720 85.0 0.74 2.0 6.0 2.0
Y160L-8 7.5 17.7 720 86.0 0.75 2.0 5.5 2.0
Y180L-8 11 24.8 730 87.5 0.77 1.7 6.0 2.0
Y200L-8 15 34.1 730 88.0 0.76 1.8 6.0 2.0
Y225S-8 18.5 41.3 735 89.5 0.76 1.7 6.0 2.0
Y225M-8 22 47.6 735 90.0 0.78 1.8 6.0 2.0
Y250M-8 30 63.0 735 90.5 0.80 1.8 6.0 2.0
Y280D-8 37 78.2 735 91.0 0.79 1.8 6.0 2.0
Y280M-8 45 93.2 735 91.7 0.80 1.6 6.5 2.0
Y315S-8 55 114 740 92.0 0.80 1.6 6.5 2.0
Synchronous speed 600r/min
Y315M-8 75 152 740 92.5 0.81 1.6 6.5 2.0
Y315L1-8 90 179 740 93.0 0.82 1.6 6.5 2.0
Y315L2-8 110 218 740 93.3 0.82 1.6 6.5 2.0
Y315S-10 45 101 590 91.5 0.74 1.4 8.0 2.0
Y315M-10 55 123 590 92.0 0.74 1.4 8.0 2.0
Y315L1-10 75 197 590 92.5 0.75 1.4 6.0 2.0

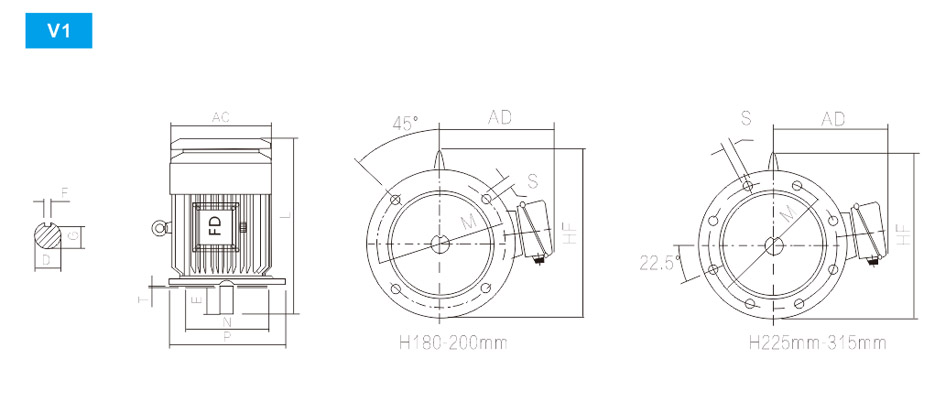

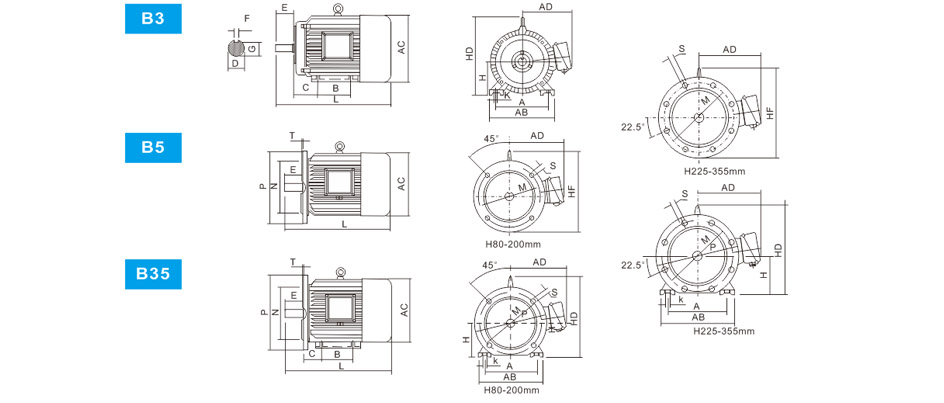

Installation structure type
Common installation structure type, and the applicable frame size is shown in the table below
 Frame number Basic installation structure Derived installation type
B3 B5 B35 V1 V3 V5 V6 B6 B7 B8 V15 V36 B14 B34 V18
63~112
132~160
180~280
Note: "√" indicates the type of structure that can be manufactured

Overall Installation Dimensions

Frame The number of poles Installation dimensions                                                                           Dimensions
A B C D E F G H M N P R S T K AB AC AD HD L
80M 2.4 125 100 50 19 40 6 15.5 80 165 130 200 0 12 3.5 10 165 175 150 175 290
90S 2.4.6 140 100 56 24 50 8 20 90 165 130 200 0 12 305 10 180 195 160 195 315
90L 2.4.6 140 125 56 24 50 8 20 90 165 130 200 0 12 3.5 10 180 195 160 195 340
100L 2.4.6 160 140 63 28 60 8 24 100 215 180 250 0 15 4 12 205 215 180 245 380
12M 2.4.6 190 140 70 28 80 8 24 112 265 230 300 0 15 4 12 245 240 190 265 400
132S 2.4.6.8 216 140 89 38 80 10 33 132 300 230 300 0 15 4 12 280 275 210 315 475
132M 2.4.6.8 216 178 89 38 110 10 33 132 300 250 350 0 15 4 12 270 275 210 315 515
160M 2.4.6.8 254 210 108 42 110 12 37 160 300 250 350 0 19 5 15 330 335 265 385 605
160L 2.4.6.8 254 154 108 42 110 12 37 160 300 250 350 0 19 5 15 330 335 265 385 650
180M 2.4.6.8 279 241 121 48 110 14 42.5 180 300 250 350 0 19 5 15 355 380 285 430 670
180L 2.4.6.8 279 279 121 48 110 14 42.5 180 300 250 350 0 19 5 15 355 380 285 430 710
200L
225M
225S
2.4.6.8 318
356
356
305
311
286
133
149
149
55 110 16 49 200
225
225
350
400
400
300
350
300
400
450
450
0
0
0
19
19
19
5
5
5
19
19
19
  395
435
435
420
475
475
315
345
345
475
530
530
775
4.8 60 140 18 53 820
250M 2 406 349 168 55 110 16 49 250 500 450 550 0 19 5 24 490 515 385 575 1000
4.6.8 60 140 18 53
280S 2 457 368 190 60 140 18 53 280 500 450 550 0 19 5 24 550 585 410 640 1050
4.6.8 65 140 18 58
200M 2 457 419 190 65 140 18 58 200 500 450 550 0 19 5 24 550 505 410 640 1240
4.6.8 75 140 20 67.5
315S 2 508 406 216 65 140 18 58 315 600 550 660 0 24 6 28 744 645 576 865 1270
4.6.8 75 140 20 67.5
315M 2 508 457 216 65 140 18 58 315 600 550 660 0 24 6 28 744 645 576 865 1310
4.6.8.10 80 170 22 71
315L 2 508 508 216 65 140 18 58 315 600 550 660 0 24 6 28 744 645 576 865 1340
4.6.8.10



Frame Pole Installation Dimensions                           Overall Dimensions
D E F G M N P R S T Flange Holes AC AD HF L
180M 2.4.6.8 48 110 14 42.5 300 250 350 0 19 5 4 380 285 500 730
180L 2.4.6.8 48 110 14 42.5 300 250 350 0 19 5 4 380 285 500 770
200L 2.4.6.8 60 110 16 49 350 300 400 0 19 5 4 420 315 550 850
225S 4.8 55 140 18 53 400 350 450 0 19 5 8 475 345 610 910
225M 2 60 110 16 49 400 350 450 0 19 5 8 475 345 610 935
250M 4.6.8 60 140 18 53 500 450 550 0 19 5 8 515 385 650 1035
2 65 140 18 53
280S 4.6.8 65 140 18 58 500 450 550 0 19 5 8 580 410 720 1120
2 75 140 18 58
280M 4.6.8 65 140 20 67.5 500 450 550 0 19 5 8 580 410 720 1170
2 75 140 18 58 1360
315S 2 65 140 18 58 600 550 660 0 24 6 8 580 410 720 1360
4.6.8.10 80 140 20 67.5 1390
315M 2 65 140 18 58 600 550 660 0 24 6 8 645 576 900 1460
4.6.8.10 80 170 22 71 1490
315L 2 65 140 18 58 600 550 660 0 24 6 8 645 576 900 1460
4.6.8.10 80 170 22 71 1490
