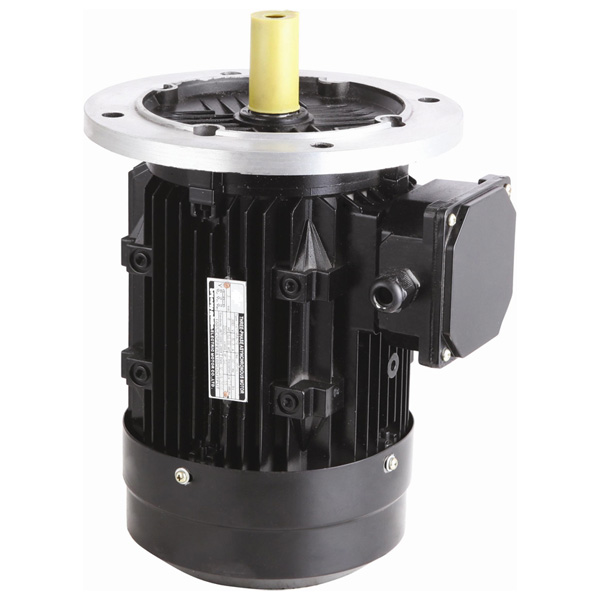

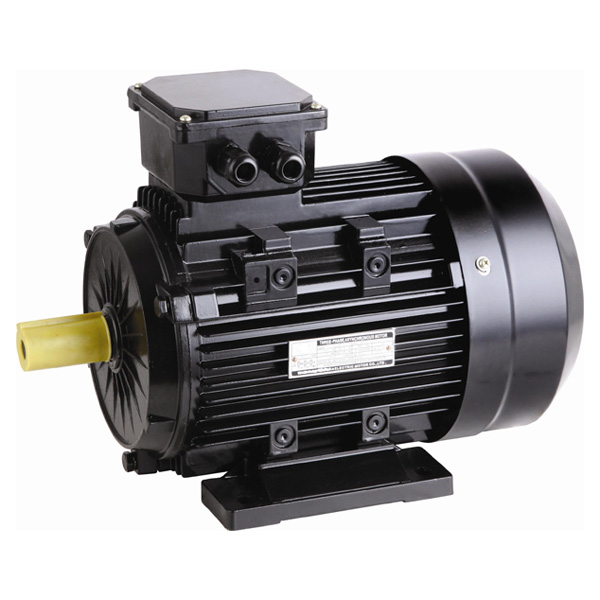

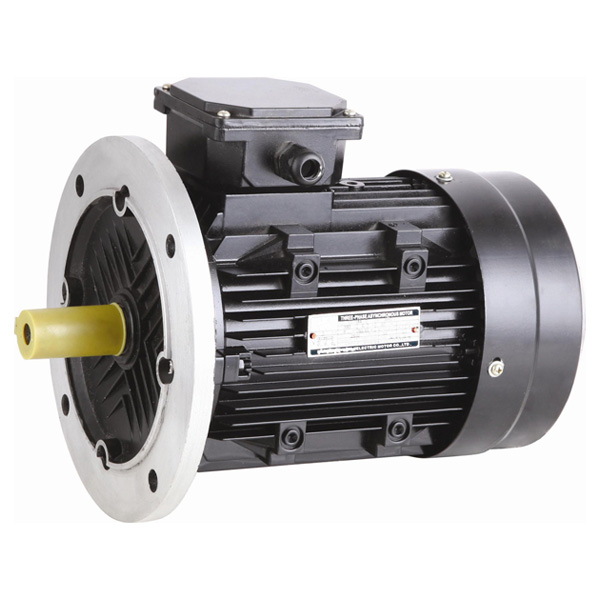

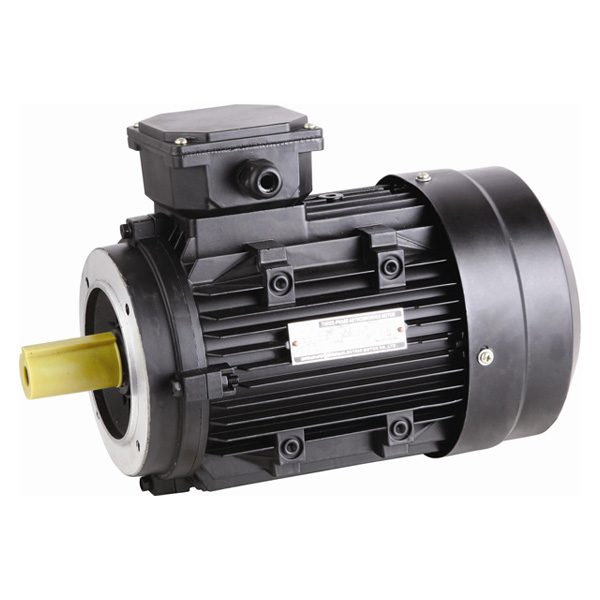

Name: MS SERIES ALUMINIUM BODY THREE PHASE INDUCTION MOTOR
Type: MS
  • PUMP
  • PUMP
  • PUMP
  • PUMP
Product details
Frame: 63 ~ 160      Power: 0.12 ~ 18.5KW
Working set :S1      Insulation class: F
Motor Housing :Aluminium Alloy
Applicable to: all places and no special requirements of machinery, such as metal cutting machine tools, pumps, fans, transport machinery, mixers, agricultural machinery, food machinery.
Features: beautiful appearance, low noise, vibration, insulation class for the F-class, enclosure protection class IP54 or IP55, comprehensive performance and Siemens 1LA56 series quite.
Conditions of use: no more than 1000M above sea level. Ambient temperature changes with the seasons, but the maximum does not exceed +40 ℃, the minimum not less than -15 ℃.

Performance data
MODEL Power
KW
Rated
Current
A
SPEED
RPM
EFF.
%
Power
Factor
Locked rotor
torque
Rated torque
Locked rotor
current
Rated cuffrent
Breakdown
torque
Rated torque
Synchronous speed 3000r/min
MS63M1-2 0.18 0.53 2720 65.0 0.80 2.2 5.5 2.2
MS63M2-2 0.25 0.69 2720 68.0 0.81 2.2 5.5 2.2
MS71M1-2 0.37 0.99 2740 70.0 0.81 2.2 6.1 2.2
MS71M2-2 0.55 1.4 2740 73.0 0.82 2.2 6.1 2.3
MS80M1-2 0.75 1.8 2840 75.0 0.83 2.2 6.1 2.3
MS80M2-2 1.1 2.6 2840 77.0 0.84 2.2 7.0 2.3
MS90S-2 1.5 3.4 2845 79.0 0.84 2.2 7.0 2.3
MS90L-2 2.2 4.9 2845 81.0 0.85 2.2 7.0 2.3
MS100L-2 3 6.3 2860 83.0 0.87 2.2 7.5 2.3
MS112M-2 4 8.1 2880 85.0 0.88 2.2 7.5 2.3
MS132S1-2 5.5 11.0 2900 86.0 0.88 2.2 7.5 2.3
MS132S2-2 7.5 14.9 2900 87.0 0.88 2.2 7.5 2.3
MS160M1-2 11 21.3 2930 88.0 0.89 2.2 7.5 2.3
MS160M2-2 15 28.8 2930 89.0 0.89 2.2 7.5 2.3
MS160L-2 18.5 34.7 2930 90.0 0.90 2.2 7.5 2.3
Synchronous speed 1500r/min
MS63M1-4 0.12 0.44 1310 57.0 0.72 2.1 4.4 2.2
MS63M2-4 0.18 0.62 1310 60.0 0.73 2.1 4.4 2.2
MS71M1-2 0.25 0.79 1330 65.0 0.74 2.1 5.2 2.2
MS71M2-4 0.37 1.12 1330 67.0 0.75 2.1 5.2 2.2
MS80M1-4 0.55 1.6 1390 71.0 0.75 2.4 5.2 2.3
MS80M2-4 0.75 2.0 1390 73.0 0.76 2.3 6.0 2.3
MS90S-4 1.1 2.9 1390 75.0 0.77 2.3 6.0 2.3
MS90L-4 1.5 3.7 1390 78.0 0.79 2.3 6.0 2.3
MS100L1-4 2.2 5.2 1410 80.0 0.81 2.3 7.0 2.3
MS100L2-4 3 6.8 1410 82.0 0.82 2.3 7.0 2.3
MS112M-4 4 8.8 1440 84.0 0.82 2.3 7.0 2.3
MS132S-4 5.5 11.8 1440 85.0 0.83 2.3 7.0 2.3
MS132M-4 7.5 15.6 1440 87.0 0.84 2.3 7.0 2.3
MS160M-4 11 22.3 1460 88.0 0.84 2.2 7.0 2.3
MS160L-4 15 30.1 1460 89.0 0.85 2.2 7.5 2.3
Synchronous speed 1000r/min
MS71M1-6 0.18 0.74 850 56.0 0.66 1.9 4.0 2.0
MS71M2-6 0.25 0.95 850 59.0 0.68 1.9 4.0 2.0
MS80M1-6 0.37 1.3 885 62.0 0.70 1.9 4.7 2.0
MS80M2-6 0.55 1.8 885 65.0 0.72 1.9 4.7 2.1
MS90S-6 0.75 2.3 910 69.0 0.72 2.0 5.5 2.1
MS90L-6 1.1 3.2 910 72.0 0.73 2.0 5.5 2.1
MS100L-6 1.5 3.9 920 76.0 0.75 2.0 5.5 2.1
MS112M-6 2.2 5.6 935 79.0 0.76 2.0 6.5 2.1
MS132S-6 3 7.4 960 81.0 0.76 2.1 6.5 2.1
MS132M1-6 4 9.8 960 82.0 0.76 2.1 6.5 2.1
MS132M2-6 5.5 12.9 965 84.0 0.77 2.1 6.5 2.1
MS160M-6 7.5 17.2 970 86.0 0.77 2.0 6.5 2.1
MS160L-6 11 24.2 970 87.5 0.78 2.0 6.5 2.1
Synchronous speed 750r/min
MS80M1-8 0.18 0.88 645 51.0 0.61 1.8 3.3 1.9
MS80M2-8 0.25 1.15 645 54.0 0.61 1.8 3.3 1.9
MS90S-8 0.37 1.49 670 62.0 0.61 1.8 4.0 1.9
MS90L-8 0.55 2.17 670 63.0 0.61 1.8 4.0 2.0
MS100L1-8 0.75 2.4 680 71.0 0.67 1.8 4.0 2.0
MS100L2-8 1.1 3.4 680 73.0 0.69 1.8 5.0 2.0
MS112M-8 1.5 4.4 690 75.0 0.69 1.8 5.0 2.0
MS132S-8 2.2 6 705 78.0 0.71 1.8 6.0 2.0
MS132M-8 3 7.9 705 79.0 0.73 1.8 6.0 2.0
MS160M1-8 4 10.3 720 81.0 0.73 1.9 6.0 2.0
MS160M2-8 5.5 13.6 720 83.0 0.74 2.0 6.0 2.0
MS160L-8 7.5 17.8 720 85.5 0.75 2.0 6.0 2.0

OVERALL INSTALLATION DIMENSION
Frame Pole Installation Dimension Dimension
A B C D E F G H M N P R S T K Flange
Number of holes
AB AC AD HD HF L
63M 2.4 110 80 40 11 23 4 8.5 63 75 60 90 0 M5 2.5 7 4 135 130 70 180 130 230
71M 2.4.6 112 90 45 14 30 5 11 71 85 70 105 0 M6 2.5 7 4 150 145 80 195 145 255
80M 2.4.6.8 125 100 50 19 40 6 15.5 80 100 80 120 0 M6 3 10 4 165 175 145 214 185 295
90S 2.4.6.8 140 100 56 24 50 8 20 90 115 95 140 0 M8 3 10 4 180 195 155 250 195 320
90L 2.4.6.8 140 125 56 24 50 8 20 90 115 95 140 0 M8 3 10 4 180 195 155 250 195 345
100L 2.4.6.8 160 140 63 28 60 8 24 100 130 110 160 0 M8 3.5 12 4 205 215 180 270 245 385
112M 2.4.6.8 190 140 70 28 60 8 24 112 130 110 160 0 M8 3.5 12 4 230 240 190 300 265 400

Frame Pole Installation Dimension Dimension
A B C D E F G H M N P R S T K AB AC AD HD HF L
63M 2.4 100 80 40 11 23 4 8.5 63 115 95 140 0 10 3 7 135 130 70 180 130 230
71M 2.4.6 112 90 45 14 30 5 11 71 130 110 160 0 10 3.5 7 150 145 80 195 145 255
80M 2.4.6.8 125 100 50 19 40 6 15.5 80 165 130 200 0 12 3.5 10 165 175 145 220 185 295
90S 2.4.6.8 140 100 56 24 50 8 20 90 165 130 200 0 12 3.5 10 180 195 155 250 195 320
90L 2.4.6.8 140 125 56 24 50 8 20 90 165 130 200 0 12 3.5 10 180 195 155 250 195 345
100L 2.4.6.8 160 140 63 28 60 8 24 100 215 180 250 0 15 4 12 205 215 180 270 245 385
112M 2.4.6.8 190 140 70 28 60 8 24 112 215 180 250 0 15 4 12 230 240 190 300 265 400
132S 2.4.6.8 216 140 89 38 80 10 33 132 265 230 300 0 15 4 12 270 275 210 345 315 470
132M 2.4.6.8 216 170 89 38 80 10 33 132 265 230 300 0 15 4 12 240 275 210 345 315 510
160M 2.4.6.8 254 210 108 42 110 12 37 160 300 250 350 0 19 5 15 320 330 255 420 385 615
160L 2.4.6.8 254 254 108 42 110 12 37 160 300 250 350 0 19 5 15 320 330 255 420 385 670

Installation Structure Type
Common installation structure type, and the applicable frame size is shown in the table below
Frame Installation Dimension Dimension
B3 B5 B35 V1 V3 V5 V6 B6 B7 B8 V15 V36 B14 B34 V18
63~112
132~160
Note: "√" indicates the type of structure that can be manufactured
