产品详情
机座号:63~355 功率:0.12~315KW
防护等级:IP55 绝缘等级:F级
适用于:含有甲烷等气体或煤矿井下(非采掘工作面)(Ex d Ⅰ) 及工厂(Ex dⅡBT4、d II BT4)含有II类A、B级T1~T4组的可燃性气体或蒸汽与空气形成的爆炸性混合物的场所。
特点:防爆标志为Ex dⅠ、Ex dⅡBT4、d II Bt4、Ⅰ类的最高表面温度不超过150℃(当电机表面可能堆积煤尘时),不超过450℃(当电机表面不会堆积或采取措施可以防止堆积煤尘时);Ⅱ类的最高表面温度应不超过;T1(450℃)、T2(300℃)、 T3(200℃)、T4(135℃);接线盒可分别制成三个或六个出线端子,适用于橡套电缆(或塑料电缆)和钢管布线两种结构。
环境温度:环境温度为-15℃~35℃(煤矿井下)或-15℃~40℃ (工厂)
额定电压:380V、660V、380/660V
性能数据
型号
|
功率
KW
|
额定电流
|
转 速
|
效 率
|
功率因数
|
堵转转矩
额定转矩
|
堵转电流
额定电流
|
最大转矩
额定转矩
|
同步转速 3000r/min
|
YB3-631-2
|
0.18
|
0.53
|
2720
|
66.0
|
0.80
|
2.2
|
5.0
|
2.3
|
YB3-632-2
|
0.25
|
0.69
|
2720
|
68.0
|
0.81
|
2.2
|
5.0
|
2.3
|
YB3-711-2
|
0.37
|
0.99
|
2740
|
70.0
|
0.81
|
2.2
|
5.5
|
2.3
|
YB3-712-2
|
0.55
|
1.4
|
2740
|
73.0
|
0.83
|
2.2
|
5.5
|
2.3
|
YB3-801-2
|
0.75
|
1.8
|
2845
|
75.0
|
0.83
|
2.2
|
6.0
|
2.3
|
YB3-802-2
|
1.1
|
2.6
|
2845
|
78.0
|
0.84
|
2.2
|
6.0
|
2.3
|
YB3-90S-2
|
1.5
|
3.4
|
2840
|
79.0
|
0.84
|
2.2
|
7.0
|
2.3
|
YB3-90L-2
|
2.2
|
4.9
|
2840
|
81.0
|
0.85
|
2.2
|
7.0
|
2.3
|
YB3-100L-2
|
3
|
6.3
|
2860
|
83.0
|
0.88
|
2.2
|
7.0
|
2.3
|
YB3-112M-2
|
4
|
8.1
|
2880
|
85.0
|
0.88
|
2.2
|
7.0
|
2.3
|
YB3-132S1-2
|
5.5
|
11.0
|
2900
|
86.0
|
0.88
|
2.2
|
7.5
|
2.3
|
YB3-132S2-2
|
7.5
|
14.9
|
2900
|
87.0
|
0.88
|
2.2
|
7.5
|
2.3
|
YB3-160M1-2
|
11
|
21.3
|
2930
|
88.0
|
0.88
|
2.2
|
7.5
|
2.3
|
YB3-160M2-2
|
15
|
28.8
|
2930
|
89.0
|
0.89
|
2.2
|
7.5
|
2.4
|
YB3-160L-2
|
18.5
|
34.7
|
2930
|
89.0
|
0.89
|
2.2
|
7.5
|
2.4
|
YB3-180M-2
|
22
|
41.0
|
2940
|
90.5
|
0.90
|
2.0
|
7.5
|
2.3
|
YB3-200L1-2
|
30
|
55.5
|
2950
|
91.2
|
0.90
|
2.0
|
7.5
|
2.4
|
YB3-200L2-2
|
37
|
67.9
|
2950
|
92.0
|
0.90
|
2.0
|
7.5
|
2.4
|
YB3-225M-2
|
45
|
82.3
|
2960
|
92.5
|
0.90
|
2.2
|
7.5
|
2.3
|
YB3-250M-2
|
55
|
100
|
2965
|
92.5
|
0.90
|
2.1
|
7.5
|
2.3
|
YB3-280S-2
|
75
|
135
|
2970
|
93.2
|
0.90
|
2.0
|
7.5
|
2.3
|
YB3-280M-2
|
90
|
160
|
2970
|
93.8
|
0.91
|
1.8
|
7.0
|
2.3
|
YB3-315S-2
|
110
|
195
|
2975
|
94.0
|
0.91
|
2.2
|
7.5
|
2.3
|
YB3-315M-2
|
132
|
233
|
2975
|
94.5
|
0.91
|
1.8
|
7.0
|
2.3
|
YB3-315L1-2
|
160
|
279
|
2975
|
94.6
|
0.92
|
1.8
|
7.0
|
2.3
|
YB3-315L2-2
|
200
|
348
|
2975
|
94.8
|
0.92
|
1.8
|
7.0
|
2.3
|
YB3-355S1-2
|
185
|
323
|
2980
|
94.6
|
0.92
|
1.8
|
7.0
|
2.3
|
YB3-355S2-2
|
200
|
348
|
2980
|
94.8
|
0.92
|
1.8
|
7.0
|
2.3
|
YB3-355M1-2
|
220
|
383
|
2980
|
94.8
|
0.92
|
1.6
|
4.0
|
2.4
|
YB3-355M2-2
|
250
|
433
|
2980
|
95.3
|
0.92
|
1.6
|
7.0
|
2.4
|
YB3-355L1-2
|
280
|
485
|
2980
|
95.3
|
0.92
|
1.6
|
7.0
|
2.4
|
YB3-355L2-2
|
315
|
544
|
2980
|
95.6
|
0.92
|
1.6
|
7.0
|
2.4
|
YB3-631-4
|
0.12
|
0.44
|
1310
|
58.0
|
0.72
|
2.0
|
4.0
|
2.2
|
YB3-632-4
|
0.18
|
0.62
|
1310
|
63.0
|
0.73
|
2.0
|
4.0
|
2.2
|
YB3-711-4
|
0.25
|
0.79
|
1330
|
66.0
|
0.74
|
2.0
|
4.0
|
2.2
|
YB3-712-4
|
0.37
|
1.12
|
1330
|
69.0
|
0.75
|
2.0
|
4.0
|
2.2
|
YB3-801-4
|
0.55
|
1.6
|
1390
|
71.0
|
0.75
|
2.4
|
5.0
|
2.3
|
YB3-802-4
|
0.75
|
2
|
1390
|
73.0
|
0.77
|
2.4
|
5.0
|
2.3
|
YB3-90S-4
|
1.1
|
2.9
|
1390
|
75.0
|
0.77
|
2.3
|
6.0
|
2.3
|
YB3-90L-4
|
1.5
|
3.7
|
1390
|
78.0
|
0.79
|
2.3
|
6.0
|
2.3
|
YB3-100L1-4
|
2.2
|
5.2
|
1410
|
80.0
|
0.81
|
2.3
|
6.0
|
2.4
|
YB3-100L2-4
|
3
|
6.8
|
1410
|
82.0
|
0.82
|
2.3
|
6.0
|
2.4
|
YB3-112M-4
|
4
|
8.8
|
1440
|
84.0
|
0.82
|
2.3
|
6.0
|
2.4
|
YB3-132S-4
|
5.5
|
11.8
|
1440
|
86.0
|
0.84
|
2.3
|
7.0
|
2.4
|
YB3-132M-4
|
7.5
|
15.6
|
1440
|
87.0
|
0.85
|
2.3
|
7.0
|
2.4
|
YB3-160M-4
|
11
|
22.3
|
1460
|
88.0
|
0.85
|
2.2
|
7.0
|
2.4
|
YB3-160L-4
|
15
|
30.1
|
1460
|
89.0
|
0.85
|
2.2
|
7.0
|
2.4
|
YB3-180M-4
|
18.5
|
36.1
|
1470
|
90.5
|
0.85
|
2.2
|
7.0
|
2.3
|
YB3-180L-4
|
22
|
42.7
|
1470
|
91.2
|
0.86
|
2.2
|
7.0
|
2.3
|
YB3-200L-4
|
30
|
57.6
|
1470
|
92.0
|
0.86
|
2.2
|
7.2
|
2.4
|
YB3-225S-4
|
37
|
69.9
|
1475
|
92.5
|
0.87
|
2.2
|
7.2
|
2.4
|
YB3-225M-4
|
45
|
84.7
|
1475
|
92.8
|
0.87
|
2.2
|
7.2
|
2.4
|
YB3-250M-4
|
55
|
103
|
1480
|
93.0
|
0.87
|
2.2
|
7.2
|
2.4
|
YB3-280S-4
|
75
|
140
|
1480
|
93.8
|
0.87
|
2.2
|
7.2
|
2.4
|
YB3-280M-4
|
90
|
167
|
1480
|
94.2
|
0.87
|
2.2
|
7.2
|
2.4
|
YB3-315S-4
|
110
|
201
|
1480
|
94.5
|
0.89
|
2.1
|
7.0
|
2.4
|
YB3-315M-4
|
132
|
240
|
1480
|
94.8
|
0.89
|
2.1
|
7.0
|
2.4
|
YB3-315L1-4
|
160
|
288
|
1480
|
95.0
|
0.90
|
2.1
|
7.0
|
2.4
|
YB3-315L2-4
|
200
|
359
|
1480
|
95.2
|
0.90
|
2.1
|
7.0
|
2.4
|
YB3-355S1-4
|
185
|
330
|
1490
|
95.0
|
0.90
|
2.1
|
7.0
|
2.4
|
YB3-355S2-4
|
200
|
356
|
1490
|
95.2
|
0.90
|
2.1
|
7.0
|
2.3
|
同步转速1500r/min
|
YB3-355M1-4
|
220
|
443
|
1490
|
95.2
|
0.90
|
2.1
|
7.0
|
2.4
|
YB3-355M2-4
|
250
|
442
|
1490
|
95.5
|
0.90
|
2.1
|
7.0
|
2.4
|
YB3-355L1-4
|
280
|
495
|
1490
|
95.5
|
0.90
|
2.1
|
7.0
|
2.4
|
YB3-355L2-4
|
315
|
556
|
1490
|
95.6
|
0.90
|
2.1
|
7.0
|
2.4
|
同步转速1000r/min
|
YB3-711-6
|
0.18
|
0.74
|
850
|
62.0
|
0.66
|
1.9
|
4.0
|
2.1
|
YB3-7126
|
0.25
|
0.95
|
850
|
63.0
|
0.68
|
1.9
|
4.0
|
2.1
|
YB3-801-6
|
0.37
|
1.3
|
850
|
63.0
|
0.70
|
1.9
|
4.0
|
2.1
|
YB3-802-6
|
0.55
|
1.8
|
885
|
66.0
|
0.72
|
1.9
|
4.0
|
2.1
|
YB3-90S-6
|
0.75
|
2.3
|
910
|
69.0
|
0.72
|
2.1
|
4.0
|
2.1
|
YB3-90L-6
|
1.1
|
3.2
|
910
|
73.0
|
0.73
|
2.1
|
5.0
|
2.1
|
YB3-100L-6
|
1.2
|
3.9
|
920
|
76.0
|
0.76
|
2.1
|
5.0
|
2.1
|
YB3-112M-6
|
2.2
|
5.6
|
935
|
79.0
|
0.76
|
2.1
|
5.0
|
2.4
|
YB3-132S-6
|
3
|
7.4
|
960
|
81.0
|
0.77
|
2.1
|
6.0
|
2.4
|
YB3-132M1-6
|
4
|
9.8
|
960
|
83.0
|
0.78
|
2.1
|
6.0
|
2.4
|
YB3-132M2-6
|
5.5
|
12.9
|
965
|
85.0
|
0.78
|
2.1
|
6.5
|
2.4
|
YB3-160M-6
|
7.5
|
17.2
|
970
|
86.0
|
0.79
|
2.1
|
6.5
|
2.4
|
YB3-160L-6
|
11
|
24.5
|
970
|
87.5
|
0.79
|
2.1
|
6.5
|
2.3
|
YB3-180L-6
|
15
|
31.6
|
970
|
89.0
|
0.81
|
2.1
|
7.0
|
2.2
|
YB3-200L1-6
|
18.5
|
38.6
|
980
|
90.0
|
0.83
|
2.2
|
7.0
|
2.2
|
YB3-200L2-6
|
22
|
44.7
|
980
|
90.0
|
0.83
|
2.2
|
7.0
|
2.2
|
YB3-225M-6
|
30
|
59.3
|
980
|
92.0
|
0.86
|
2.1
|
7.0
|
2.2
|
YB3-250M-6
|
37
|
71.1
|
980
|
92.0
|
0.86
|
2.1
|
7.0
|
2.2
|
YB3-280S-6
|
45
|
85.9
|
980
|
92.5
|
0.86
|
2.1
|
7.0
|
2.2
|
YB3-280M-6
|
55
|
1.05
|
980
|
92.8
|
0.86
|
2.1
|
7.0
|
2.2
|
YB3-315S-6
|
75
|
142
|
985
|
93.5
|
0.86
|
2.0
|
7.0
|
2.2
|
YB3-315M-6
|
90
|
170
|
985
|
93.8
|
0.86
|
2.0
|
7.0
|
2.2
|
YB3-315L1-6
|
110
|
207
|
985
|
94.0
|
0.86
|
2.0
|
7.0
|
2.2
|
YB3-315L2-6
|
132
|
245
|
985
|
94.2
|
0.87
|
2.0
|
7.0
|
2.2
|
YB3-355S-6
|
160
|
292
|
990
|
94.5
|
0.88
|
2.0
|
7.0
|
2.2
|
YB3-355M1-6
|
185
|
338
|
990
|
94.5
|
0.88
|
2.0
|
7.0
|
2.2
|
YB3-355M2-6
|
200
|
365
|
990
|
94.7
|
0.88
|
2.0
|
7.0
|
2.2
|
YB3-355L1-6
|
220
|
401
|
990
|
94.7
|
0.88
|
2.0
|
7.0
|
2.2
|
YB3-355L2-6
|
250
|
455
|
990
|
95.0
|
0.88
|
2.0
|
7.0
|
2.2
|
YB3-801-8
|
0.18
|
0.88
|
645
|
52.0
|
0.61
|
1.8
|
3.3
|
1.9
|
YB3-802-8
|
0.25
|
1.15
|
645
|
55.0
|
0.61
|
1.8
|
3.3
|
1.9
|
YB3-90S-8
|
0.37
|
1.49
|
670
|
63.0
|
0.62
|
1.8
|
4.0
|
2.0
|
YB3-90L-8
|
0.55
|
2.17
|
670
|
64.0
|
0.63
|
1.8
|
4.0
|
2.0
|
YB3-100L1-8
|
0.75
|
2.4
|
680
|
71.0
|
0.69
|
1.8
|
4.0
|
2.0
|
YB3-100L2-8
|
1.1
|
3.4
|
680
|
73.0
|
0.69
|
1.8
|
4.0
|
2.0
|
YB3-112M-8
|
1.5
|
4.4
|
690
|
75.0
|
0.69
|
1.8
|
4.0
|
2.0
|
YB3-132S-8
|
2.2
|
6.0
|
705
|
79.0
|
0.73
|
1.8
|
5.5
|
2.2
|
YB3-132M-8
|
3
|
7.9
|
705
|
81.0
|
0.73
|
1.8
|
5.5
|
2.2
|
YB3-160M1-8
|
4
|
10.3
|
720
|
81.0
|
0.73
|
1.9
|
6.0
|
2.2
|
同步转速750r/min
|
YB3-160M2-8
|
5.5
|
13.6
|
720
|
83.0
|
0.75
|
1.9
|
6.0
|
2.2
|
YB3-160L-8
|
7.5
|
17.8
|
720
|
85.0
|
0.76
|
1.9
|
6.0
|
2.2
|
YB3-180L-8
|
11
|
25.1
|
730
|
87.0
|
0.76
|
1.9
|
6.0
|
2.2
|
YB3-200L-8
|
15
|
34.1
|
730
|
89.0
|
0.76
|
2.0
|
6.5
|
2.2
|
YB3-225S-8
|
18.5
|
41.1
|
730
|
90.0
|
0.78
|
2.0
|
6.5
|
2.2
|
YB3-225M-8
|
22
|
47.4
|
730
|
90.5
|
0.78
|
2.0
|
6.5
|
2.2
|
YB3-250M-8
|
30
|
63.4
|
735
|
91.0
|
0.79
|
1.9
|
6.5
|
2.0
|
YB3-280S-8
|
37
|
77.8
|
735
|
91.5
|
0.79
|
1.8
|
6.0
|
2.0
|
YB3-280M-8
|
45
|
94.1
|
735
|
92.0
|
0.79
|
1.8
|
6.0
|
2.0
|
YB3-315S-8
|
55
|
111
|
735
|
92.8
|
0.81
|
1.9
|
6.5
|
2.2
|
YB3-315M-8
|
75
|
151
|
735
|
93.0
|
0.81
|
1.9
|
6.5
|
2.2
|
YB3-315L1-8
|
90
|
178
|
735
|
93.8
|
0.82
|
1.9
|
6.5
|
2.2
|
YB3-315L2-8
|
110
|
217
|
735
|
94.0
|
0.82
|
1.9
|
6.5
|
2.2
|
YB3-355S-8
|
132
|
261
|
740
|
94.2
|
0.82
|
2.0
|
6.5
|
2.2
|
YB3-355M-8
|
160
|
315
|
740
|
94.6
|
0.82
|
2.0
|
6.5
|
2.2
|
YB3-355L1-8
|
185
|
362
|
740
|
94.6
|
0.82
|
2.0
|
6.5
|
2.2
|
YB3-355L2-8
|
200
|
387
|
740
|
94.8
|
0.83
|
2.0
|
6.5
|
2.2
|
YB3-315S-10
|
45
|
99.6
|
590
|
92.0
|
0.75
|
1.5
|
6.0
|
2.1
|
YB3-315M-10
|
55
|
121
|
590
|
92.0
|
0.75
|
1.5
|
6.0
|
2.1
|
YB3-315L1-10
|
75
|
162
|
590
|
92.5
|
0.76
|
1.5
|
6.0
|
2.1
|
YB3-315L2-10
|
90
|
191
|
590
|
93.0
|
0.77
|
1.5
|
6.0
|
2.1
|
YB3-355S-10
|
90
|
230
|
590
|
93.0
|
0.77
|
1.5
|
6.0
|
2.1
|
YB3-355M1-10
|
110
|
275
|
590
|
93.2
|
0.78
|
1.3
|
5.5
|
2.1
|
YB3-355M2-10
|
132
|
333
|
590
|
93.5
|
0.78
|
1.3
|
5.5
|
2.1
|
YB3-355L1-10
|
160
|
385
|
590
|
93.6
|
0.78
|
1.3
|
5.5
|
2.1
|
YB3-355L2-10
|
185
|
385
|
590
|
93.6
|
0.78
|
1.3
|
5.5
|
2.1
|
安装结构型式
常用的安装结构型式,以及适用的机座号见下表
机座号
|
基本安装结构
|
派生的安装型式
|
B3
|
B5
|
B35
|
V1
|
V3
|
V5
|
V6
|
B6
|
B7
|
B8
|
V15
|
V36
|
B14
|
B34
|
V18
|
63~71
|
√
|
√
|
-
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
-
|
-
|
√
|
√
|
√
|
80~112
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
132~160
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
√
|
-
|
-
|
-
|
180~280
|
√
|
√
|
√
|
√
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
315~355
|
√
|
-
|
√
|
√
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
注:“√”表示可以制造生产的结构型式

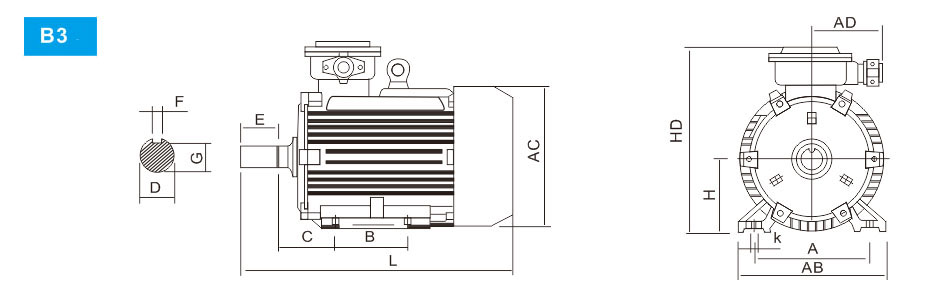

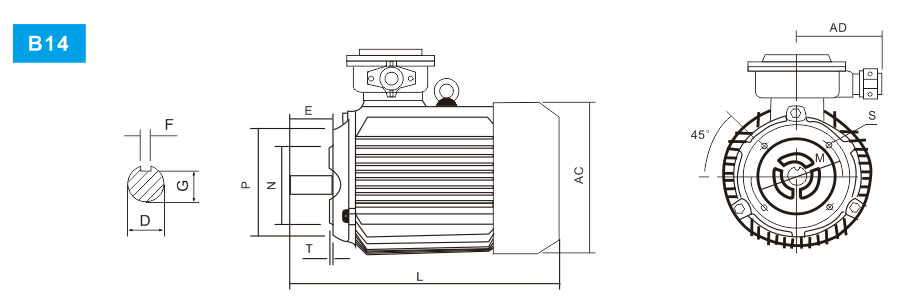

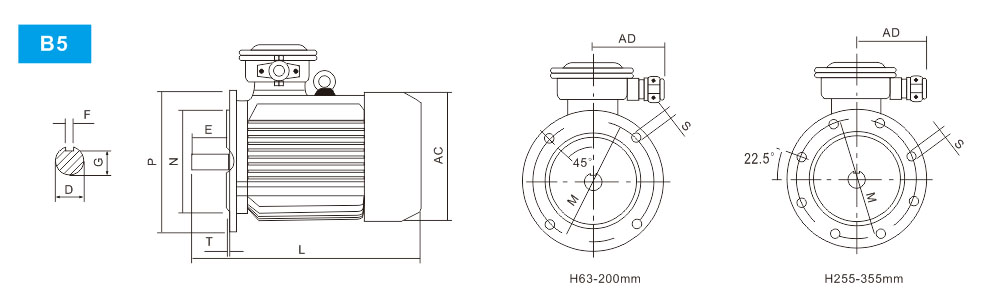

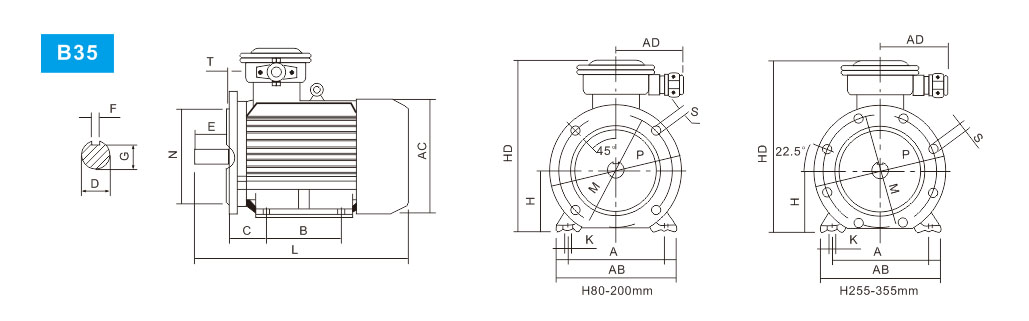

外型及安装尺寸
机座号
|
极数
|
安装尺寸
|
外形尺寸
|
D
|
E
|
F
|
G
|
M
|
N
|
P
|
R
|
S
|
T
|
凸缘
孔数
|
AC
|
AD
|
L
|
63
|
2.4
|
11
|
23
|
4
|
8.5
|
75
|
60
|
90
|
0
|
M5
|
2.5
|
4
|
150
|
170
|
270
|
71
|
2.4.6
|
14
|
30
|
5
|
11
|
85
|
70
|
105
|
0
|
M6
|
2.5
|
4
|
155
|
170
|
300
|
80
|
2.4.6.8
|
19
|
40
|
6
|
15.5
|
100
|
80
|
120
|
0
|
M6
|
3
|
4
|
165
|
240
|
330
|
90S
|
2.4.6.8
|
24
|
50
|
8
|
20
|
115
|
95
|
140
|
0
|
M8
|
3
|
4
|
180
|
260
|
360
|
90L
|
2.4.6.8
|
24
|
50
|
8
|
20
|
115
|
95
|
140
|
0
|
M8
|
3
|
4
|
180
|
260
|
385
|
100L
|
2.4.6.8
|
28
|
60
|
8
|
24
|
130
|
110
|
160
|
0
|
M8
|
3.5
|
4
|
205
|
300
|
440
|
112M
|
2.4.6.8
|
28
|
60
|
8
|
24
|
130
|
110
|
160
|
0
|
M8
|
3.5
|
4
|
230
|
310
|
460
|
机座号
|
极数
|
安装尺寸
|
外形尺寸
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
HD
|
L
|
63
|
2.4
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
7
|
75
|
60
|
90
|
0
|
M5
|
2.5
|
130
|
150
|
165
|
230
|
270
|
71
|
2.4.6
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
85
|
70
|
105
|
0
|
M6
|
2.5
|
140
|
155
|
165
|
240
|
300
|
80
|
2.4.6.8
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
100
|
80
|
120
|
0
|
M6
|
3
|
165
|
165
|
180
|
320
|
330
|
90S
|
2.4.6.8
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
115
|
95
|
140
|
0
|
M8
|
3
|
180
|
180
|
180
|
350
|
360
|
90L
|
2.4.6.8
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
115
|
95
|
140
|
0
|
M8
|
3
|
180
|
180
|
180
|
350
|
385
|
100L
|
2.4.6.8
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
130
|
110
|
160
|
0
|
M8
|
3.5
|
205
|
205
|
180
|
400
|
440
|
112M
|
2.4.6.8
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
130
|
110
|
160
|
0
|
M8
|
3.5
|
245
|
230
|
200
|
420
|
460
|
机座号
|
极数
|
安装尺寸
|
外形尺寸
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
AB
|
AC
|
AD
|
HD
|
L
|
63
|
2.4
|
100
|
80
|
40
|
11
|
23
|
4
|
8.5
|
63
|
7
|
130
|
150
|
165
|
230
|
270
|
71
|
2.4.6
|
112
|
90
|
45
|
14
|
30
|
5
|
11
|
71
|
7
|
140
|
155
|
165
|
240
|
300
|
80
|
2.4.6.8
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
165
|
165
|
180
|
320
|
330
|
90S
|
2.4.6.8
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
180
|
165
|
180
|
350
|
360
|
90L
|
2.4.6.8
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
180
|
180
|
180
|
350
|
385
|
100L
|
2.4.6.8
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
200
|
180
|
180
|
400
|
440
|
112M
|
2.4.6.8
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
200
|
205
|
200
|
420
|
460
|
132S
|
2.4.6.8
|
216
|
140
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
245
|
230
|
200
|
450
|
510
|
132M
|
2.4.6.8
|
216
|
170
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
280
|
270
|
200
|
450
|
550
|
160M
|
2.4.6.8
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
280
|
270
|
220
|
520
|
655
|
160L
|
2.4.6.8
|
254
|
254
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
330
|
325
|
220
|
520
|
695
|
180M
|
2.4.6.8
|
279
|
241
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
330
|
325
|
220
|
550
|
730
|
180L
|
2.4.6.8
|
279
|
279
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
335
|
360
|
220
|
550
|
750
|
200L
|
2.4.6.8
|
318
|
305
|
133
|
55
|
110
|
16
|
49
|
200
|
19
|
335
|
400
|
250
|
645
|
805
|
225M
|
2.4.6.8
|
356
|
311
|
149
|
55
|
110
|
16
|
49
|
225
|
19
|
390
|
450
|
250
|
690
|
865
|
225S
|
4.8
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
225
|
19
|
435
|
450
|
250
|
690
|
840
|
250M
|
2
|
406
|
349
|
168
|
55
|
110
|
16
|
49
|
250
|
24
|
490
|
500
|
300
|
720
|
890
|
4.8.6
|
60
|
140
|
18
|
53
|
1010
|
280S
|
2
|
457
|
368
|
190
|
60
|
140
|
18
|
43
|
280
|
24
|
545
|
560
|
300
|
|
|
4.8.6
|
65
|
140
|
18
|
58
|
|
280M
|
2
|
457
|
419
|
190
|
85
|
140
|
18
|
58
|
280
|
24
|
545
|
560
|
300
|
790
|
|
4.8.6
|
75
|
140
|
20
|
67.5
|
|
315S
|
2
|
508
|
406
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
640
|
630
|
400
|
790
|
|
4.8.6.10
|
75
|
140
|
20
|
67.5
|
|
315M
|
2
|
508
|
457
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
640
|
630
|
400
|
1020
|
1250
|
4.8.6.10
|
80
|
170
|
22
|
71
|
1280
|
315L
|
2
|
508
|
508
|
216
|
65
|
140
|
18
|
58
|
315
|
28
|
640
|
630
|
400
|
1020
|
1220
|
4.8.6.10
|
80
|
170
|
22
|
71
|
1320
|
355S
|
2
|
610
|
560
|
254
|
65
|
140
|
18
|
58
|
355
|
28
|
740
|
750
|
500
|
1020
|
1510
|
4.8.6.10
|
80
|
170
|
22
|
71
|
1350
|
355M
|
2
|
610
|
560
|
254
|
65
|
140
|
18
|
58
|
355
|
28
|
740
|
750
|
500
|
1080
|
1440
|
4.8.6.10
|
80
|
170
|
22
|
71
|
1690
|
355L
|
2
|
610
|
630
|
254
|
75
|
140
|
20
|
67.5
|
355
|
28
|
740
|
750
|
500
|
1080
|
|
4.8.6.10
|
95
|
170
|
25
|
86
|
|
机座号
|
极数
|
安装尺寸
|
外形尺寸
|
D
|
E
|
F
|
G
|
M
|
N
|
P
|
R
|
S
|
T
|
凸缘
孔数
|
AC
|
AD
|
L
|
卧式
|
立式
|
63
|
2.4
|
11
|
23
|
4
|
8.5
|
115
|
95
|
140
|
0
|
10
|
3.0
|
4
|
130
|
170
|
270
|
-
|
71
|
2.4.6
|
14
|
30
|
5
|
11
|
130
|
110
|
160
|
0
|
10
|
3.0
|
4
|
145
|
170
|
300
|
-
|
80
|
2.4.6.8
|
19
|
40
|
6
|
15.5
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
165
|
240
|
330
|
-
|
90S
|
2.4.6.8
|
24
|
50
|
8
|
20
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
180
|
260
|
360
|
-
|
90L
|
2.4.6.8
|
24
|
50
|
8
|
20
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
180
|
260
|
385
|
-
|
100L
|
2.4.6.8
|
28
|
60
|
8
|
24
|
165
|
130
|
250
|
0
|
15
|
4
|
4
|
205
|
300
|
440
|
-
|
112M
|
2.4.6.8
|
28
|
60
|
8
|
24
|
215
|
180
|
250
|
0
|
15
|
4
|
4
|
230
|
310
|
460
|
-
|
132S
|
2.4.6.8
|
38
|
80
|
10
|
33
|
215
|
180
|
300
|
0
|
15
|
4
|
4
|
270
|
320
|
510
|
-
|
160M
|
2.4.6.8
|
38
|
80
|
10
|
33
|
265
|
230
|
300
|
0
|
19
|
4
|
4
|
270
|
320
|
550
|
-
|
160L
|
2.4.6.8
|
42
|
110
|
12
|
37
|
265
|
230
|
350
|
0
|
19
|
5
|
4
|
325
|
360
|
655
|
-
|
180M
|
2.4.6.8
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
325
|
360
|
695
|
-
|
180L
|
2.4.6.8
|
48
|
110
|
14
|
42.5
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
360
|
370
|
730
|
-
|
200L
225M
225S
|
2.4.6.8
|
55
|
110
|
16
|
42.5
|
350
400
400
|
300
350
350
|
400
450
450
|
0
0
0
|
19
19
19
|
5
5
5
|
4
8
8
|
400
450
450
|
445
465
465
|
805
|
875
|
4.8
|
60
|
140
|
18
|
53
|
865
|
935
|
250M
|
2
|
55
|
110
|
16
|
49
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
500
|
500
|
945
|
1035
|
4.6.8
|
60
|
140
|
18
|
53
|
860
|
930
|
280S
|
2
|
60
|
140
|
18
|
58
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
560
|
550
|
890
|
960
|
4.6.8
|
65
|
140
|
18
|
58
|
280M
|
2
|
65
|
140
|
18
|
58
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
560
|
750
|
1010
|
1100
|
4.6.8
|
75
|
140
|
20
|
67.5
|
315S
|
2
|
65
|
140
|
18
|
58
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
630
|
750
|
1060
|
1150
|
4.6.8
|
75
|
140
|
20
|
67.5
|
315M
|
2
|
65
|
140
|
18
|
58
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
630
|
750
|
-
|
1340
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1370
|
315L
|
2
|
65
|
140
|
18
|
58
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
630
|
750
|
-
|
1420
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1450
|
355S
|
2
|
65
|
140
|
18
|
58
|
740
|
680
|
800
|
0
|
24
|
6
|
88
|
630
|
725
|
-
|
1510
|
4.6.8.10
|
80
|
170
|
22
|
71
|
1540
|
355M
|
2
|
75
|
140
|
20
|
67.5
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
630
|
725
|
-
|
1600
|
4.6.8.10
|
95
|
170
|
25
|
86
|
355L
|
2
|
75
|
140
|
20
|
67.5
|
740
|
680
|
800
|
0
|
24
|
6
|
8
|
630
|
725
|
-
|
1780
|
4.6.8.10
|
95
|
170
|
25
|
86
|
机座号
|
极数
|
安装尺寸
|
外形尺寸
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
凸缘
孔数
|
AB
|
AC
|
AD
|
HD
|
L
|
80
|
2.4.6.8
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
80
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
165
|
165
|
180
|
320
|
330
|
90S
|
2.4.6.8
|
140
|
100
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
180
|
180
|
180
|
350
|
360
|
90L
|
2.4.6.8
|
140
|
125
|
56
|
24
|
50
|
8
|
20
|
90
|
10
|
165
|
130
|
200
|
0
|
12
|
3.5
|
4
|
180
|
180
|
180
|
350
|
385
|
100L
|
2.4.6.8
|
160
|
140
|
63
|
28
|
60
|
8
|
24
|
100
|
12
|
215
|
180
|
250
|
0
|
15
|
4
|
4
|
205
|
205
|
180
|
400
|
400
|
112M
|
2.4.6.8
|
190
|
140
|
70
|
28
|
60
|
8
|
24
|
112
|
12
|
215
|
180
|
250
|
0
|
15
|
4
|
4
|
230
|
230
|
200
|
420
|
460
|
132S
|
2.4.6.8
|
216
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4
|
4
|
270
|
270
|
200
|
450
|
550
|
132M
|
2.4.6.8
|
216
|
178
|
89
|
38
|
80
|
10
|
33
|
132
|
12
|
265
|
230
|
300
|
0
|
15
|
4
|
4
|
270
|
270
|
200
|
450
|
550
|
160M
|
2.4.6.8
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
16
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
325
|
325
|
220
|
520
|
355
|
160L
|
2.4.6.8
|
254
|
254
|
108
|
42
|
110
|
12
|
37
|
16
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
325
|
325
|
220
|
520
|
695
|
180M
|
2.4.6.8
|
279
|
241
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
360
|
360
|
220
|
550
|
730
|
182L
|
2.4.6.8
|
279
|
279
|
121
|
48
|
110
|
14
|
42.5
|
180
|
15
|
300
|
250
|
350
|
0
|
19
|
5
|
4
|
360
|
326
|
220
|
550
|
750
|
300L
225M
225S
|
2.4.6.8
|
318
356
356
|
305
311
286
|
133
149
149
|
55
60
|
110
140
|
16
18
|
49
53
|
250
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
500
|
500
|
300
|
720
|
860
|
4.8
|
250M
|
2
|
406
|
349
|
168
|
55
60
|
110
140
|
16
18
|
49
53
|
250
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
500
|
500
|
300
|
720
|
945
|
4.6.8
|
280S
|
2
|
457
|
368
|
190
|
60
65
|
140
140
|
18
18
|
53
58
|
280
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
500
|
500
|
300
|
720
|
690
|
4.6.8
|
280M
|
2
|
457
|
419
|
190
|
65
75
|
140
140
|
18
20
|
58
67.5
|
280
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
545
|
565
|
300
|
790
|
1010
|
4.6.8
|
315S
|
2
|
508
|
406
|
216
|
65
75
|
140
140
|
18
20
|
58
67.5
|
280
|
24
|
500
|
450
|
550
|
0
|
19
|
5
|
8
|
545
|
565
|
300
|
790
|
1060
|
4.6.8
|
315M
|
2
|
508
|
457
|
216
|
65
80
|
140
170
|
18
22
|
58
71
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
640
|
630
|
400
|
1020
|
1250
1280
|
4.6.8.10
|
315L
|
2
|
508
|
508
|
216
|
65
80
|
140
170
|
18
22
|
58
71
|
315
|
28
|
600
|
550
|
660
|
0
|
24
|
6
|
8
|
640
|
630
|
400
|
1020
|
1280
1320
|
4.6.8.10
|
355S
|
2
|
610
|
500
|
254
|
75
95
|
140
170
|
20
25
|
67.5
86
|
355
|
28
|
600
|
680
|
800
|
0
|
24
|
6
|
8
|
740
|
750
|
500
|
1080
|
1510
1350
|
4.6.8.10
|
355M
|
2
|
610
|
560
|
254
|
75
95
|
140
170
|
20
25
|
67.5
86
|
355
|
28
|
600
|
680
|
80
|
0
|
24
|
6
|
8
|
740
|
750
|
500
|
1080
|
1410
1570
|
4.6.8.10
|
355L
|
2
|
610
|
630
|
254
|
75
95
|
140
170
|
20
25
|
67.5
86
|
355
|
28
|
60
|
680
|
80
|
0
|
24
|
6
|
8
|
740
|
750
|
500
|
1080
|
1440
1690
|
|
